SKU: 806101

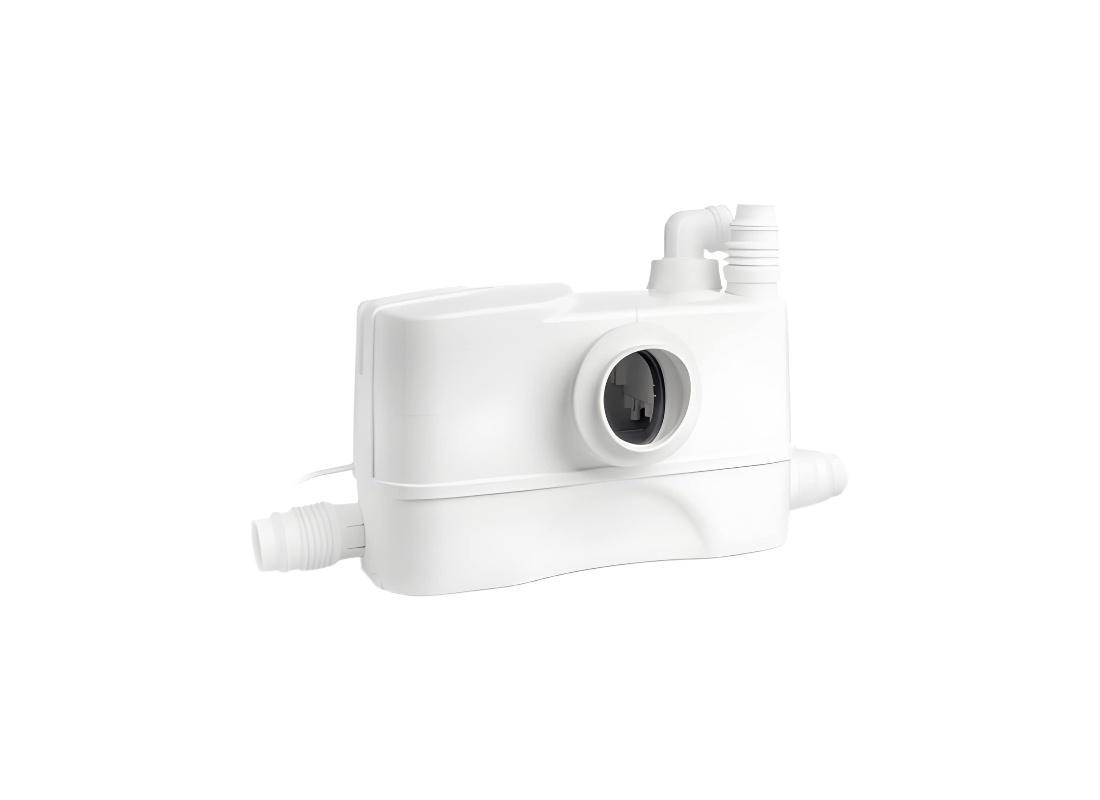

DAB GENIX-COMFORT-130 Barium PP Acoustic Lifting Station for Commercial Effluent with 70% Sound Shell
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
Engineered to sustain balanced fluid velocity paths, the DAB GENIX COMFORT 130 collection station provides a stable hydraulic foundation for sanitary installations. This advanced model drives heavy wastewater from multiple fixtures directly toward distant gravity fed drains. By maintaining a pressurized volute, the system limits backflow stalling.
The standout structural upgrade in this unit is the modified acoustic containment shell. Utilizing seventy percent barium reinforced polypropylene for the soundproof barrier, it suppresses noise generated during motorized cycles. This dense casing material ensures that high-speed fluid transfer and mechanical shredding remain quiet.
Operating with a stainless steel asynchronous motor, the pump relies on a 240v supply to draw 2.3 Amps of electrical current. It converts this input into 0.32 kW of mechanical power, driving a PPO fiberglass impeller to achieve a maximum flow of 115 L/Min. The hydraulic tolerances support a vertical discharge head of 6 meters.
Designed to integrate into existing infrastructure, the station offers multiple intake ports, capturing lines from toilets, showers, and washbasins seamlessly. Maintenance is cleanly managed through an external access hatch, bypassing the heavily sealed soundproofing layer. Weighing 11.7 kilograms, the dampened body rests on anti-vibration nubs. The unit is certified to EN 12050-3 with IP44 protection.
Features
- Constructed with a premium seventy percent barium reinforced polypropylene acoustic shell for maximum noise suppression
- Powered by a stainless steel asynchronous motor that draws 2.3 Amps under standard operating loads
- Engineered to deliver a maximum flow rate of 115 L/Min against a 6 meter vertical discharge head
- Features an ultra-durable nickel-plated steel shredding blade to quickly process organic waste without stalling
- Equipped with dedicated side and top plumbing ports to accommodate up to three separate sanitary fixtures
- Weighs 11.7 kilograms and utilizes integrated non-return valves to prevent wastewater from reversing course
- Certified to EN 12050-3 with IP44 protection class
SPECIFICATIONS
| Max Flow | 115 L/Min |
| Max Head | 6 m |
| Power | 0.32 kW / 240v |
| Rated Current | 2.3 Amps |
| Suitable For | Bedroom En-Suite (Standard toilet + Shower + Bidet) |
| Body Material | 70% Barium-Reinforced Polypropylene |
| Liquid Temperature | Maximum 50°C |
| Outlet Size | 22 mm to 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which plumbing connections support several sanitary fixtures in one installation?
The station handles up to 115 L/Min and DAB GENIX-COMFORT-130 supports wastewater transfer from several sanitary fixtures through its top and side intake ports.
What motor configuration powers this wastewater lifting station?
A stainless steel asynchronous motor draws 2.3 Amps from a 240V supply and DAB-GENIX-COMFORT-130 produces 0.32 kW of mechanical power.
What vertical discharge head can the station overcome?
The vertical discharge head reaches 6 metres and DAB/GENIX/COMFORT/130 uses a pressurized volute to support wastewater transfer toward distant drains.
Which construction feature helps reduce operating noise in indoor spaces?
The acoustic shell uses seventy percent barium reinforced polypropylene and DAB_GENIX_COMFORT_130 also rests on anti-vibration nubs to limit operational noise.
Which certification and enclosure rating apply to this lifting station?
EN 12050-3 certification and IP44 protection apply to DAB GENIX COMFORT 130 which includes a nickel-plated steel shredder and non-return valves.
