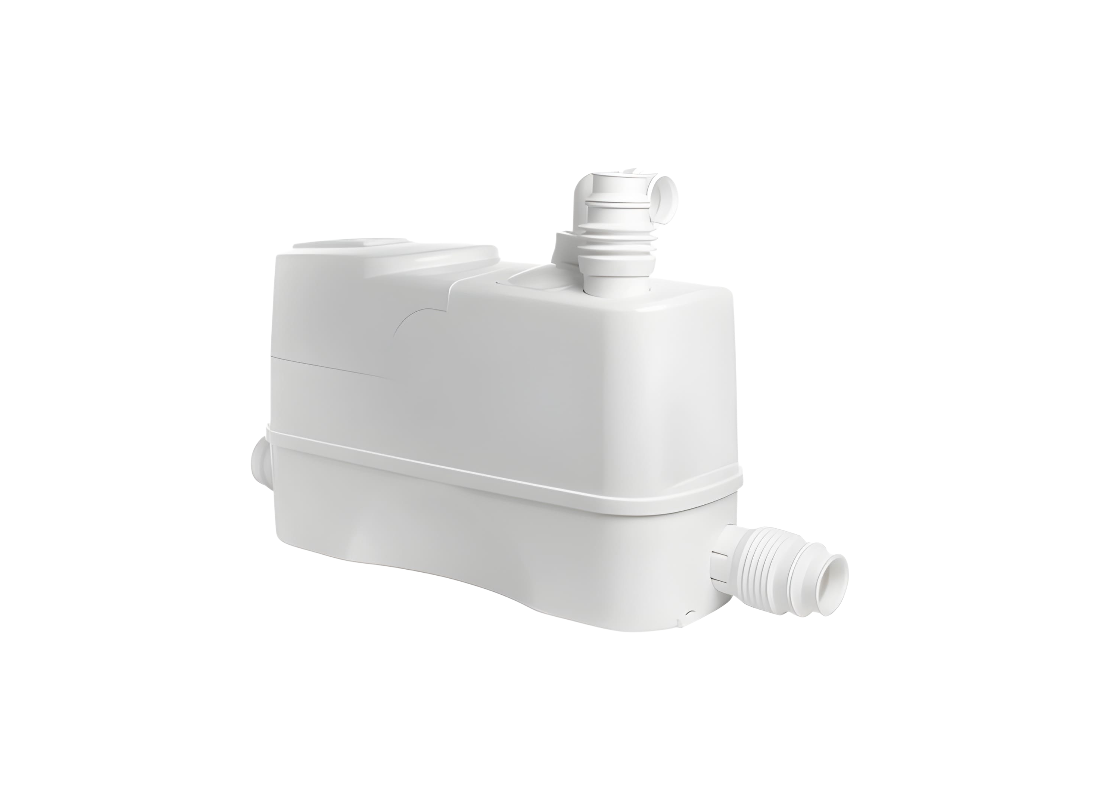

DAB GENIX-VT-010 Barium PP High-Temp Lifting Station for Thermal Effluent Transfer with 90°C Rating
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
Structured around a specialized heavy-duty casting, the GENIX VT 010 automatic collection and lifting station provides a containment vessel for high-temperature greywater applications. The primary tank architecture utilizes thirty percent barium reinforced polypropylene, establishing a rigid framework that manages thermal expansion and resists physical warping. This resilient casing helps manage internal pressure loads during aggressive washing machine or dishwasher discharge cycles.
Operating at elevated thermal thresholds, this platform is developed for greywater transfer where liquid temperatures routinely peak. The system handles fluid streams up to +75°C continuously, and can temporarily manage +90°C water for thirty minutes. Lacking an internal shredder, the hydraulic pathway relies on an unobstructed volute to quickly expel wastewater from sinks directly into municipal drains.
Driven by a stainless steel asynchronous motor, the lifting station connects to a standard 240v electrical supply to draw 2.3 Amps of current. It converts this energy into 0.32 kW of mechanical output, spinning a fiberglass reinforced PPO impeller. This rotating assembly generates a 115 L/Min maximum flow rate, forcing thermal effluent upward against a 6 meter maximum vertical head.
Designed to integrate within modern domestic or commercial utility spaces, the compact housing provides a single top-mounted intake port to capture fluid from an isolated fixture. The 10 kilogram structure features integrated non-return valves within the discharge pipeline, which prevent expelled greywater from flooding back into the main chamber. The external access hatch allows service personnel to perform clean inspections without decoupling the entire infrastructure. The unit is certified to EN 12050-3 with IP44 protection.
Features
- Engineered to accommodate continuous greywater liquid temperatures ranging up to +75°C without structural fatigue
- Features an advanced thermal overload protection module to disconnect electrical power during excessive operating heat
- Constructed utilizing a heavy-duty stainless steel motor shaft that limits mechanical wear and prevents internal corrosion
- Arrives equipped with dedicated non-return valves built directly into the discharge casing to prevent fluid reversal
- Weighs 10 kilograms, allowing for straightforward maneuvering during initial utility room setup
- Utilizes quick-connect installation fittings that securely adapt to standard 20 millimeter pipeline connections
- Certified to EN 12050-3 with IP44 protection class
SPECIFICATIONS
| Max Flow | 115 L/Min |
| Max Head | 6 m |
| Power | 0.32 kW / 240v |
| Rated Current | 2.3 Amps |
| Suitable For | Single Standalone Sink |
| Body Material | 30% Barium-Reinforced Polypropylene |
| Liquid Temperature | Maximum 75°C |
| Outlet Size | 20 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which connection arrangement serves a single isolated fixture?
One top-mounted intake serves an isolated fixture and DAB GENIX-VT-010 uses quick-connect fittings for standard 20 mm pipeline connections during installation.
How does the station handle sustained and temporary hot water?
Continuous operation supports water up to +75°C whereas DAB-GENIX-VT-010 can handle +90°C water for thirty minutes during temporary thermal peaks.
What is the maximum flow capacity for greywater drainage?
Greywater flow reaches up to 115 L/Min and DAB/GENIX/VT/010 uses a fiberglass reinforced PPO impeller for greywater drainage through the discharge line.
Which electrical supply powers the asynchronous motor?
A stainless steel asynchronous motor draws 2.3 A from a 240V single-phase supply and produces 0.32 kW in DAB_GENIX_VT_010 during normal operation.
Which fittings and valves support the discharge connection?
Quick-connect fittings adapt to standard 20 mm pipelines and DAB GENIX VT 010 has integrated non-return valves to prevent discharge returning into the chamber.
