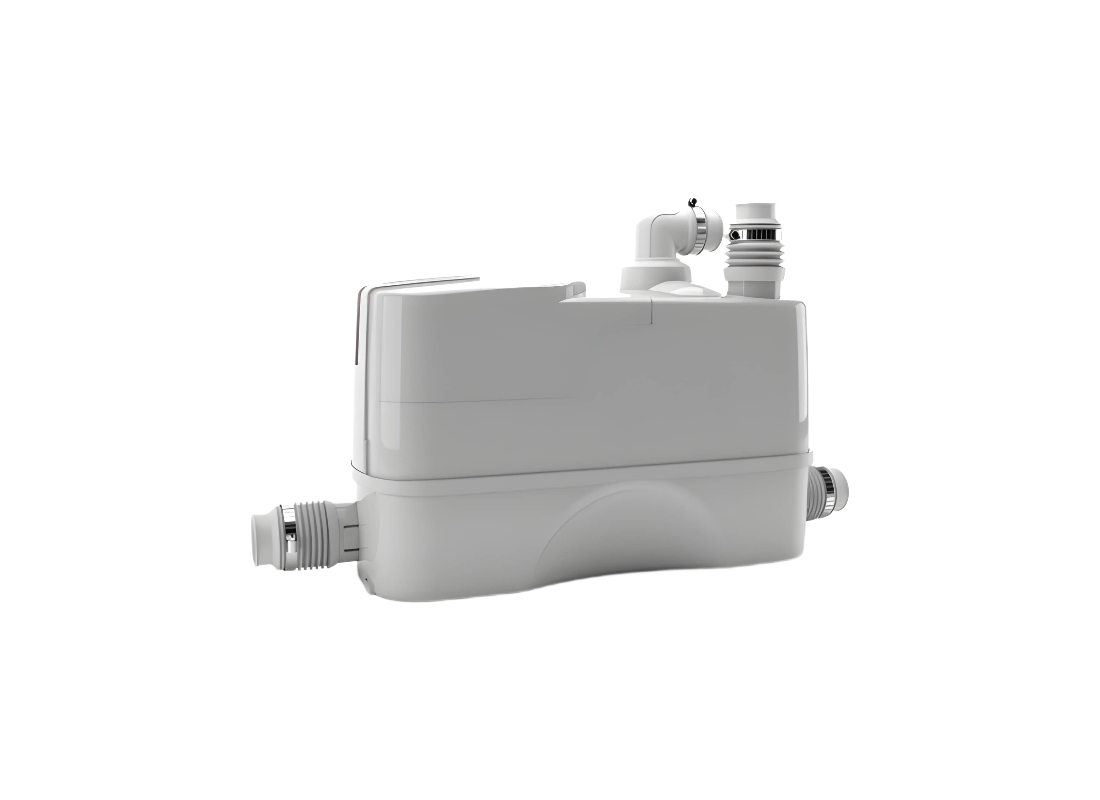

DAB GENIX-VT-030 Barium PP Multi-Port Lifting Station for Extreme Thermal Loads with 90°C Resistance

Engineered to sustain balanced fluid velocity paths under extreme thermal conditions, the GENIX VT 030 automatic collection and lifting station optimizes heavy greywater transfer. Developed for utility environments, this system ensures sudden influxes of hot wastewater do not stall internal circulation. The unobstructed casing smoothly channels effluent directly into the discharge line without utilizing a shredder.

The core containment is manufactured from a resilient thirty percent barium reinforced polypropylene, creating a vessel that safely absorbs severe thermodynamic shock. Because heavy appliances routinely expel hot water, the pump is rated to handle +75°C continuously. During intense operational peaks, the internal architecture securely manages +90°C fluid for thirty minute intervals without deformation.

Operating on a standard single-phase 240v electrical supply, the specialized asynchronous motor draws 2.3 Amps to deliver 0.32 kW of power. This robust mechanical input drives a fiberglass reinforced PPO impeller, achieving a maximum flow capacity of 115 L/Min. The rotary assembly forces the expelled fluid upward against a 6 meter maximum vertical head, effectively overcoming gravity layouts.

Configured to support expanded plumbing networks, this model provides two side-oriented intake ports alongside a top connection, accommodating up to three separate sanitary fixtures simultaneously. The unit weighs 10.3 kilograms and anchors firmly utilizing provided anti-vibration nubs. To safely protect the main basin from overflow, non-return valves are integrated into the 20 millimeter discharge line. The unit is certified to EN 12050-3 with IP44 protection.

Features

• Equipped with multiple dedicated intake ports to manage up to three low-waste fixtures including showers or bidets simultaneously
• Engineered to accommodate continuous greywater fluid temperatures ranging from 0°C up to +75°C under normal daily operation
• Constructed utilizing an exceptionally durable stainless steel motor cover that prevents internal corrosion and mechanical degradation
• Arrives equipped with an easily accessible external motor assembly to allow technicians to perform clean unblocking and maintenance
• Operates smoothly with an integrated oval swing check valve that prevents expelled water from returning down the pipeline
• Weighs 10.3 kilograms, ensuring the system remains firmly planted while resisting physical displacement during rapid fluid transfer
• Certified to EN 12050-3 with IP44 protection class
