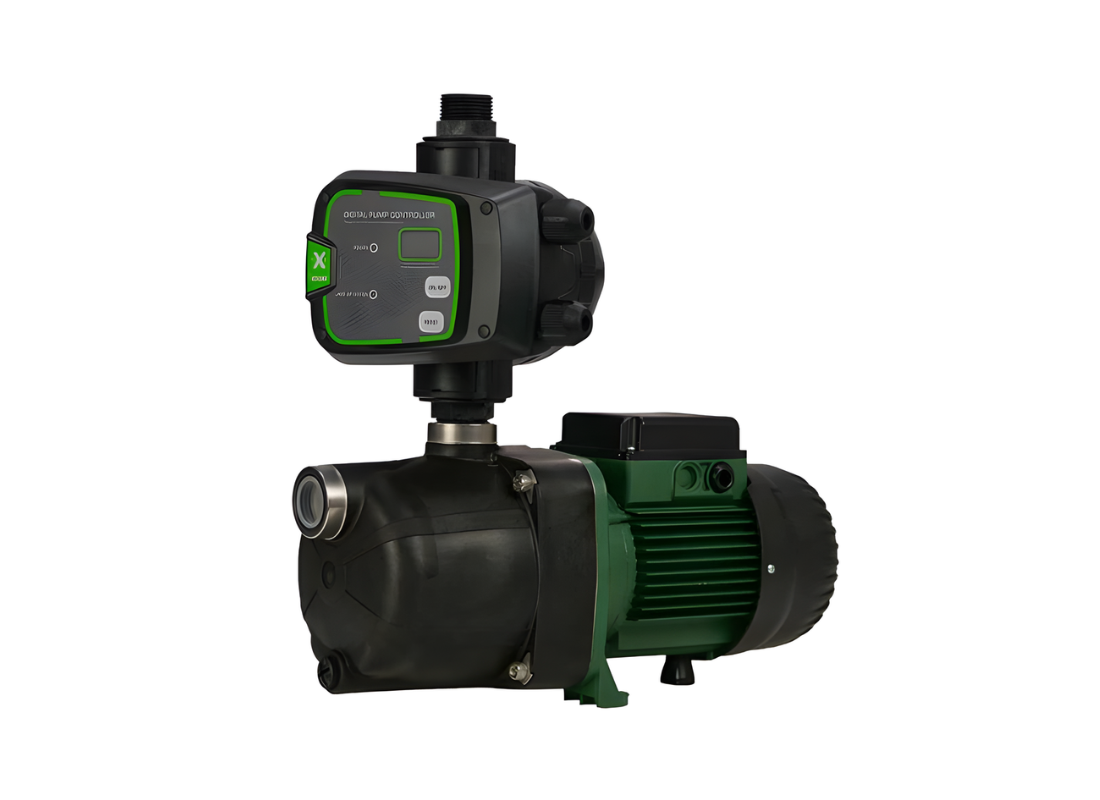

DAB JETCOM 132NXT Technopolymer Self Priming Jet Pump with Automatic Controller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB JETCOM 132NXT is a high-performance technopolymer self-priming jet pump designed for domestic water supply, rainwater harvesting and irrigation systems. Built with a corrosion-resistant technopolymer pump body and hydraulic components, along with stainless steel internal parts, the pump provides durable operation and reliable pressure performance in residential water systems.
Powered by a 1.0 kW single-phase motor, the JETCOM 132NXT delivers up to 80 litres per minute with a maximum head of approximately 48 metres. The self-priming jet system provides strong suction capability up to around 8-9 metres, allowing the pump to draw water efficiently from tanks, wells or shallow water sources.
The pump is supplied with an integrated automatic controller that enables pressure-on-demand operation. The controller automatically starts and stops the pump when water is required and includes protection features such as dry-run protection, automatic restart and anti-cycling operation, helping extend pump life and ensure reliable performance.
FEATURES
- 1.0HP (1.0kW) single phase motor (240V)
- Maximum flow: 80 litres per minute
- Maximum head: 48 metres
- Technopolymer pump body and hydraulic components
- Self priming centrifugal jet pump design
- Automatic pressure controller with start/stop operation
- Dry-run protection with automatic restart
- Strong suction lift capability up to 8-9 metres
- Carbon/ceramic mechanical seal
- 1" inlet / 1" outlet
- Designed for domestic clean water supply applications
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 48 m |
| Power | 1 kW / 240v |
| Rated Current | 6.6 Amps |
| Suitable For | Domestic Water Supply / Rainwater Tanks / Irrigation |
| Body Material | Technopolymer |
| Liquid Temperature | 0°C to +35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the automatic controller respond to water demand?What protections are included in the pressure controller?Can this pump support rainwater harvesting and irrigation?What suction lift and maximum head are supported?Which motor rating is supplied with this model?
The integrated controller starts and stops the JETCOM_132NXT when water is required, providing pressure-on-demand operation for domestic clean-water supply systems.Dry-run protection automatic restart and anti-cycling operation are included with the JETCOM 132NXT controller to support protected automatic operation in domestic water systems.The DAB JETCOM-132NXT is intended for domestic water supply rainwater harvesting and irrigation where clean water is pumped from suitable sources.The JETCOM/132NXT supports suction lift of approximately 8–9 metres and Its maximum head is 48 metres as a performance figure.A 1.0 kW single-phase motor powers the DAB JETCOM132NXT while its Maximum flow reaches 80 L/min.
