SKU: 808408

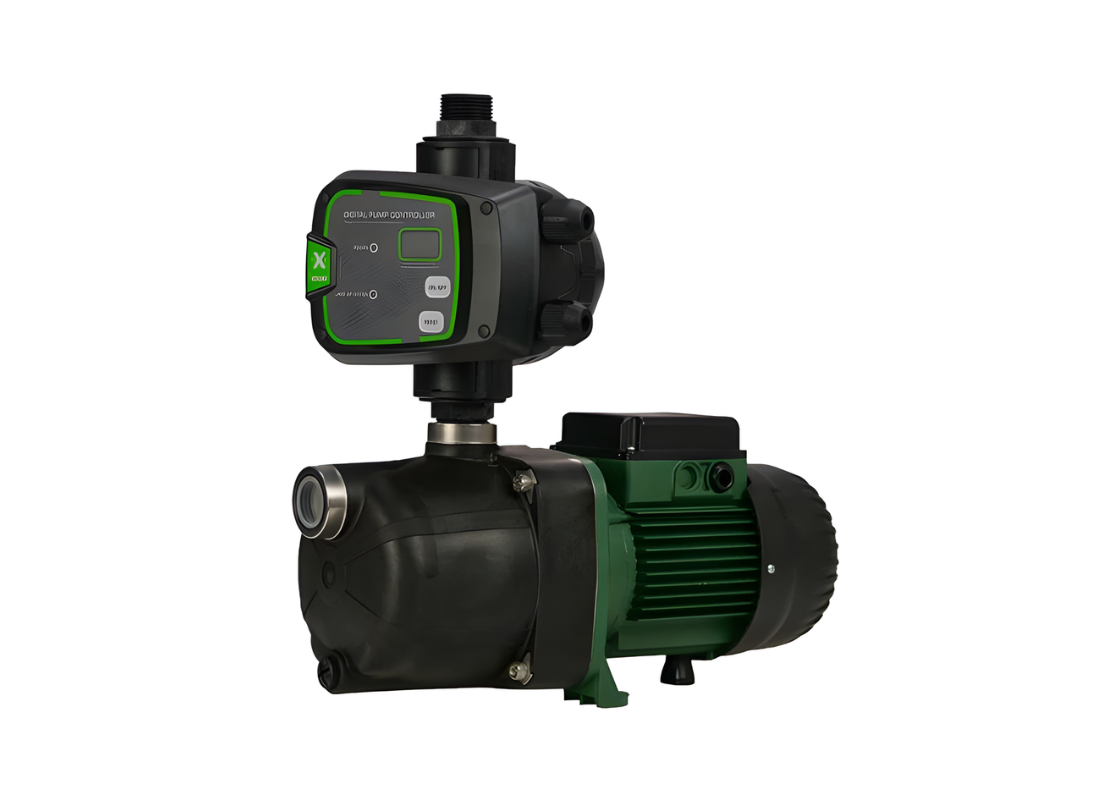

DAB JETCOM 62NXT Technopolymer Self Priming Jet Pump with Automatic Controller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB JETCOM 62NXT is a compact technopolymer self-priming jet pressure pump designed for domestic water supply, rainwater harvesting and garden irrigation systems. Built with a corrosion-resistant technopolymer pump body, impeller and hydraulic components together with a stainless steel shaft and carbon/ceramic mechanical seal, the pump delivers reliable performance and excellent suction capability when drawing water from tanks or shallow wells.
Powered by a 0.44 kW (0.6 HP) single-phase motor, the JETCOM 62NXT produces up to 45 litres per minute with a maximum head of approximately 42 metres and a maximum pressure of around 4.1 bar. The pump’s self-priming jet system allows suction lift up to about 8-9 metres, enabling efficient operation when pumping from rainwater tanks or underground water sources.
The unit is supplied with an NXT automatic controller that provides pressure-on-demand operation. The controller automatically starts and stops the pump according to water demand and includes protection features such as dry-run protection, anti-cycling protection and automatic restart functions, ensuring safe and dependable operation for residential water systems.
FEATURES
- 0.6HP (0.44kW) single phase motor (240V)
- Maximum flow: 45 litres per minute
- Maximum head: 42 metres
- Technopolymer pump body and hydraulic components
- Self priming centrifugal jet pump design
- Automatic NXT pressure controller with start/stop operation
- Dry-run protection with automatic restart
- Strong suction lift capability up to 8-9 metres
- Carbon/ceramic mechanical seal
- 1" inlet / 1" outlet
- Designed for domestic clean water supply applications
SPECIFICATIONS
| Max Flow | 45 L/Min |
| Max Head | 42 m |
| Power | 0.44 kW / 240v |
| Rated Current | 3.12 Amps |
| Suitable For | Domestic Water Supply / Rainwater Tanks / Irrigation |
| Body Material | Technopolymer |
| Liquid Temperature | 0°C to +35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What does the automatic NXT controller do during demand?Which protections help reduce problems during dry running?How much suction lift is available from a water source?What is the maximum operating pressure for this model?Which pipe sizes are used at the pump connections?
The NXT controller starts and stops the JETCOM_62NXT when water is needed, supporting pressure-on-demand operation in domestic clean-water supply systems.The DAB JETCOM 62NXT includes dry-run protection anti-cycling protection and automatic restart to support dependable automatic operation in domestic installations.Suction lift is approximately 8–9 metres for the JETCOM-62NXT, enabling water to be drawn from suitable tanks or underground sources.The JETCOM/62NXT has a maximum pressure of around 4.1 bar, alongside a maximum head rating of approximately 42 metres.The DAB JETCOM62NXT has 1-inch inlet and outlet connections and is designed for domestic water supply rainwater harvesting and irrigation.
