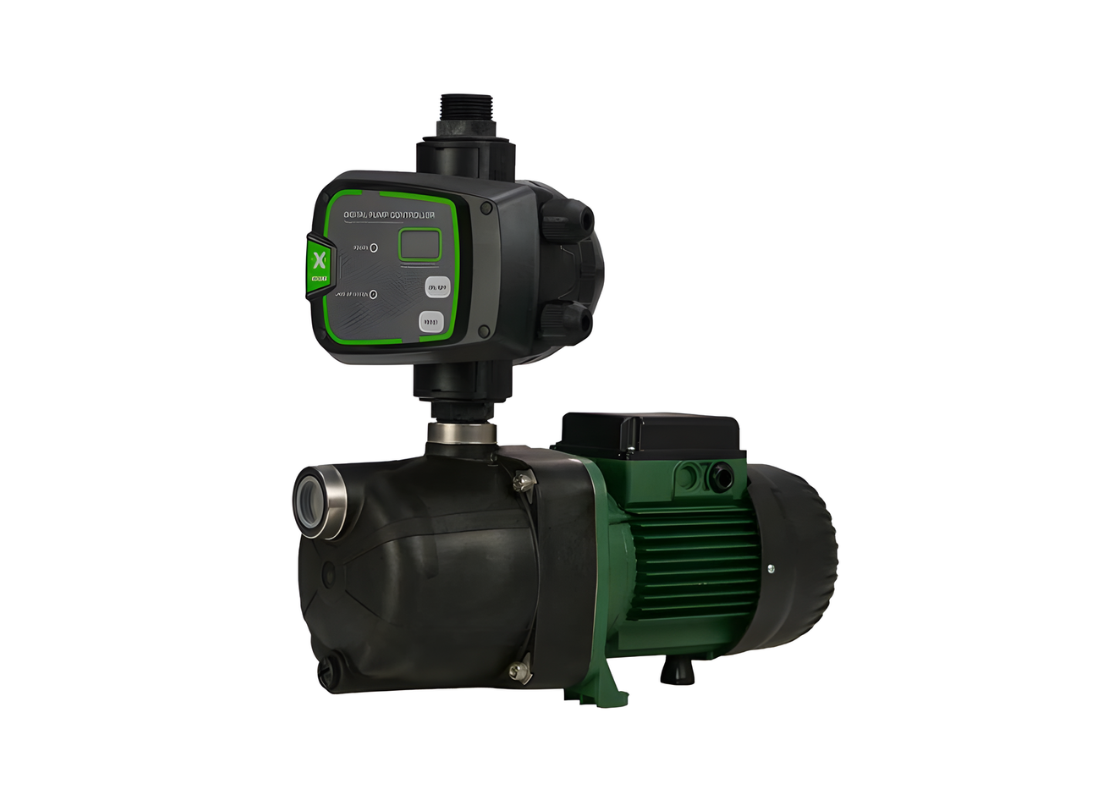

DAB JETCOM 82NXT Technopolymer Self Priming Jet Pump with Automatic Controller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB JETCOM 82NXT is a technopolymer self-priming jet pressure pump designed for domestic water supply, rainwater harvesting, and garden irrigation systems. Constructed with a corrosion-resistant technopolymer pump body, technopolymer hydraulic components and a stainless steel shaft, the pump offers reliable performance and excellent suction capability even when air is present in the suction line.
Powered by a 0.6 kW (0.8 HP) single-phase motor, the JETCOM 82NXT delivers up to 60 litres per minute with a maximum head of approximately 47 metres. The self-priming jet design allows suction lift up to around 8-9 metres, making it suitable for pumping from rainwater tanks, shallow wells, and spear-point systems.
The pump is supplied with an integrated automatic controller that enables pressure-on-demand operation. The controller automatically starts and stops the pump when water is required and includes features such as dry-run protection, automatic restart after power loss, and anti-water-hammer protection for improved pump safety and system reliability.
FEATURES
- 0.8HP (0.6kW) single phase motor (240V)
- Maximum flow: 60 litres per minute
- Maximum head: 47 metres
- Technopolymer pump body and hydraulic components
- Self priming centrifugal jet pump design
- Automatic pressure controller with start/stop operation
- Dry-run protection with automatic restart
- Strong suction lift capability up to 8-9 metres
- Carbon/ceramic mechanical seal
- 1" inlet / 1" outlet
- Designed for domestic clean water supply applications
SPECIFICATIONS
| Max Flow | 60 L/Min |
| Max Head | 47 m |
| Power | 0.6 kW / 240v |
| Rated Current | 3.8 Amps |
| Suitable For | Domestic Water Supply / Rainwater Tanks / Irrigation |
| Body Material | Technopolymer |
| Liquid Temperature | 0°C to +35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What controller features help protect against dry running?Can it draw water from a rainwater tank?Which applications are supported by this pressure pump?What are the pump's flow and head limits?How does the pump respond when an outlet opens?
The NXT controller includes dry-run protection and automatic restart after power loss. The JETCOM_82NXT also provides anti-water-hammer protection during operation.Yes. Self-priming suction lift of approximately 8–9 metres lets the DAB JETCOM 82NXT draw from suitable rainwater tanks and shallow wells.The technopolymer JETCOM-82NXT is intended for domestic water supply rainwater harvesting and garden irrigation using clean water from suitable sources.Maximum flow reaches 60 L/min on the JETCOM/82NXT. Its maximum head is 47 metres and does not represent the same operating point.The automatic pressure controller starts and stops the DAB JETCOM82NXT according to water demand, providing pressure-on-demand operation for connected outlets.
