SKU: 808412

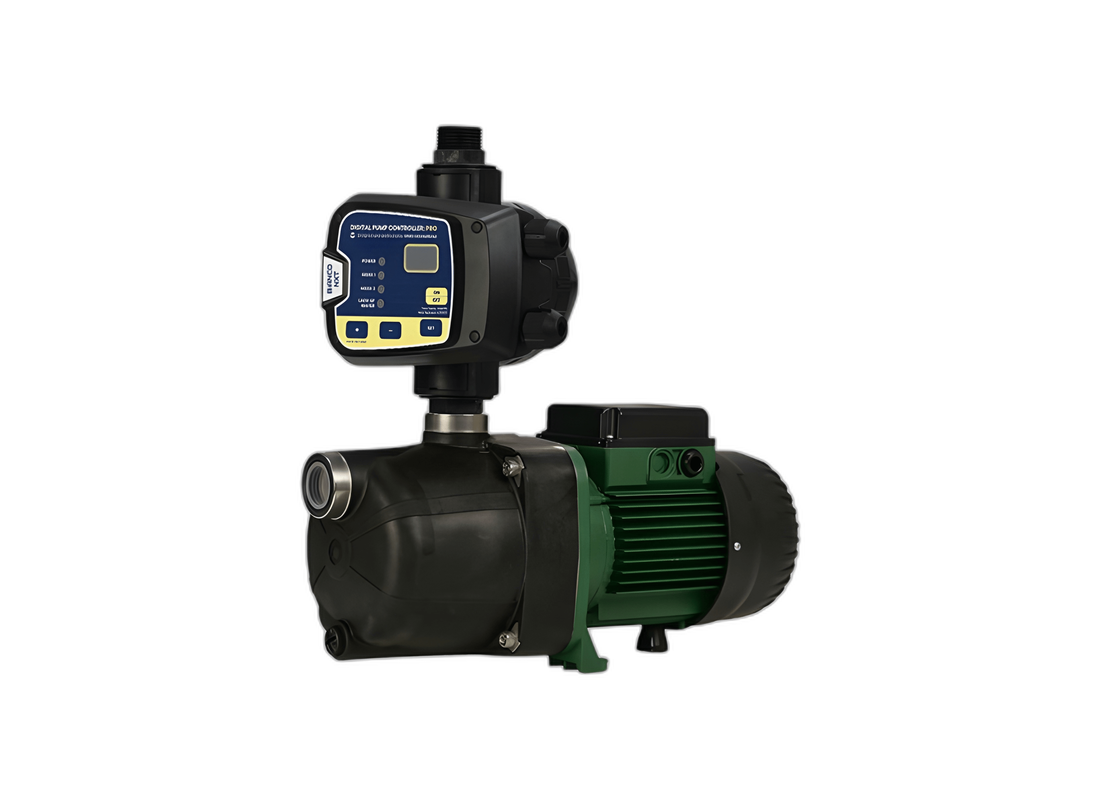

DAB JETCOM102NXTP Technopolymer NXT PRO Controller Jet Pump for Water Supply with Single Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB JETCOM102NXTP is an advanced automatic pressure jet pump system designed for domestic water supply, irrigation, and water transfer applications. It combines the proven JETCOM102 hydraulic pump with the NXT PRO intelligent controller, delivering precise pressure control and enhanced system protection.
The pump is constructed using high-quality technopolymer components including the pump body, impeller, diffuser, and venturi system, providing corrosion resistance and long-term durability. The self-priming design allows efficient operation even in the presence of air, making it suitable for suction applications from tanks and underground sources.
According to the performance data, the pump delivers a maximum head of 53.8 metres and a maximum flow of 60 L/min under defined operating conditions. It supports a suction lift of up to 8 metres, ensuring reliable water supply across residential and light agricultural applications.
The unit is powered by a 0.75 kW motor operating on 220–240 V, 50 Hz supply, with a rated current of 5.1 Amps. The integrated NXT PRO controller provides automatic start and stop, dry-run protection, advanced anti-cycling logic, and enhanced pressure stability, making it suitable for demanding water systems.
FEATURES- NXT PRO Controller with advanced automatic pressure management
- Enhanced Anti-Cycling Protection for improved system efficiency
- Dry-Run Protection to safeguard the pump during water shortage
- Self-Priming Capability with suction lift up to 8 m
- Technopolymer Hydraulic Components for corrosion resistance
- Stable pressure performance for consistent water delivery
- Designed for domestic and irrigation applications
- Compact surface-mounted configuration for easy installation
- Thermal protection for motor safety
- Reliable long-term operation under variable demand conditions
SPECIFICATIONS
| Max Flow | 60 L/Min |
| Max Head | 54 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.1 Amps |
| Suitable For | Water Supply |
| Body Material | Technopolymer |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much suction lift can this pump support?What controller manages automatic pressure and pump protection?What are the motor output and electrical requirements?What maximum flow and head figures are provided?Which materials are used in the hydraulic assembly?
For water intake from a tank or well JETCOM102/NXTP supports self-priming suction lift up to 8 metres when installation conditions permit.The NXT PRO controller on JETCOM102_NXTP manages automatic starting and stopping with dry-run protection and anti-cycling logic for pressure-system operation.JETCOM102NXTP uses a 0.75 kW motor supplied at 240 V and 50 Hz with a rated current of 5.1 Amps.JETCOM102-NXTP has a maximum flow rating of 60 L/min and a maximum head rating of 53.8 metres across its operating range.The hydraulic body impeller diffuser and Venturi components of JETCOM102 NXTP are technopolymer with die-cast aluminium motor support and stainless steel wear rings.
