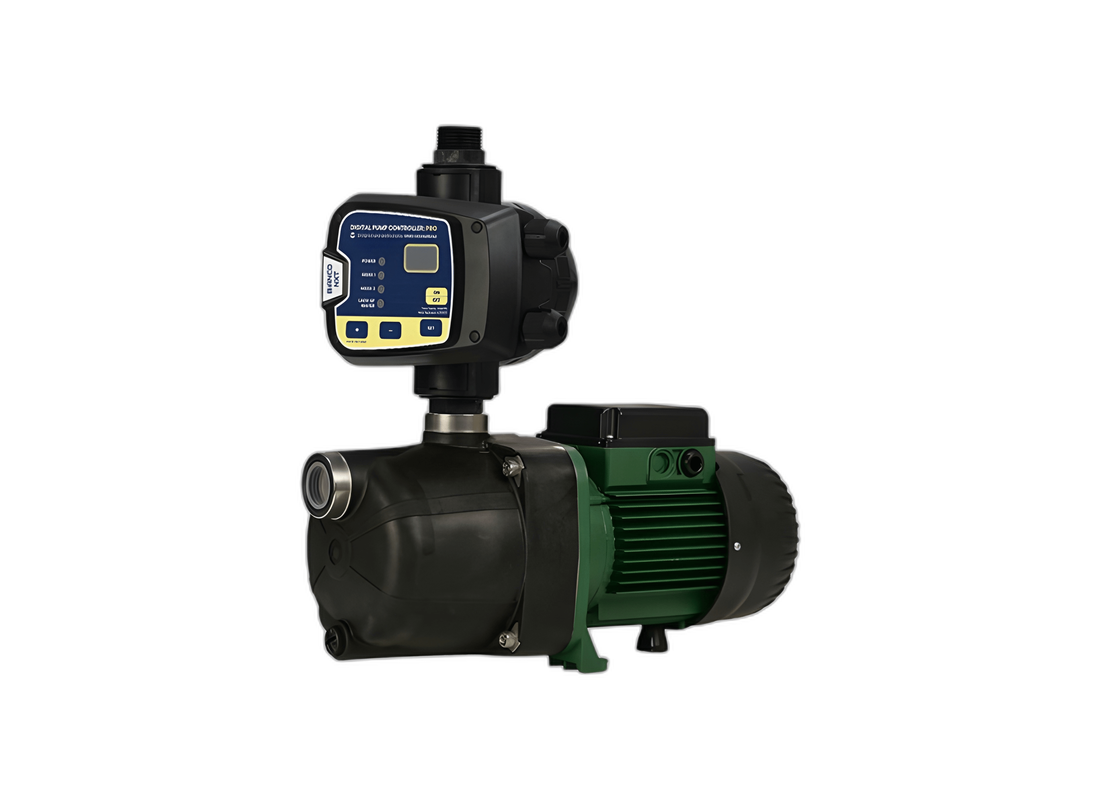

DAB JETCOM82PRO Technopolymer NXT PRO Controller Jet Pump for Irrigation with Single Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB JETCOM82PRO is a self-priming pressure jet pump system designed for irrigation, domestic water supply, and general pumping applications. It combines the composite JETCOM82M centrifugal pump with the advanced BiANCO NXT PRO controller for automatic and intelligent operation.
The pump is constructed using technopolymer components including the pump body, impeller, diffuser, venturi tube, and sand guard, along with a cast iron motor support and stainless steel adjustment rings. This construction provides corrosion resistance, durability, and efficient hydraulic performance.
Based on the performance data, the pump delivers a maximum head of 47 metres and a maximum flow of 60 L/min under defined operating conditions. The self-priming design supports suction lift up to 8 metres, allowing reliable water extraction from tanks, wells, and underground sources.
The unit operates with a 0.6 kW motor on a 220–240 V, 50 Hz supply, with a rated current of 3.8 Amps. The integrated NXT PRO controller enables automatic start and stop, dry-run protection, anti-cycling functionality, and adjustable pressure control for stable system performance.
FEATURES- NXT PRO Controller with advanced pressure management
- Dual mode operation for flexible system control
- Dry-run protection with automatic restart capability
- Anti-cycling function to reduce unnecessary operation
- Digital interface for real-time system monitoring
- Self-priming capability with suction lift up to 8 m
- Technopolymer hydraulic components for corrosion resistance
- Carbon/ceramic mechanical seal for durability
- Thermal protection integrated for motor safety
- Compact surface-mounted design for easy installation
SPECIFICATIONS
| Max Flow | 60 L/Min |
| Max Head | 47 m |
| Power | 0.6 kW / 240v |
| Rated Current | 3.8 Amps |
| Suitable For | Irrigation Use |
| Body Material | Technopolymer |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which control functions are available through the NXT PRO?What materials form the pump's hydraulic components?What are the maximum flow and head ratings?How much suction lift can this design support?Which motor rating and electrical supply are required?
The BiANCO NXT PRO controller manages automatic pressure delivery on JETCOM_82PRO and provides dry-run and anti-cycling protection during system operation.The hydraulic body impeller diffuser Venturi tube and sand guard use technopolymer. JETCOM 82PRO also has cast iron motor support.Performance for JETCOM-82PRO include a maximum flow of 60 L/min and a maximum head of 47 metres.Drawing water from suitable tanks wells or underground sources is supported by suction lift up to 8 metres on JETCOM/82PRO.A 0.6 kW motor powers JETCOM82PRO on a 220–240 V 50 Hz supply and its rated current is 3.8 Amps.
