SKU: 701580

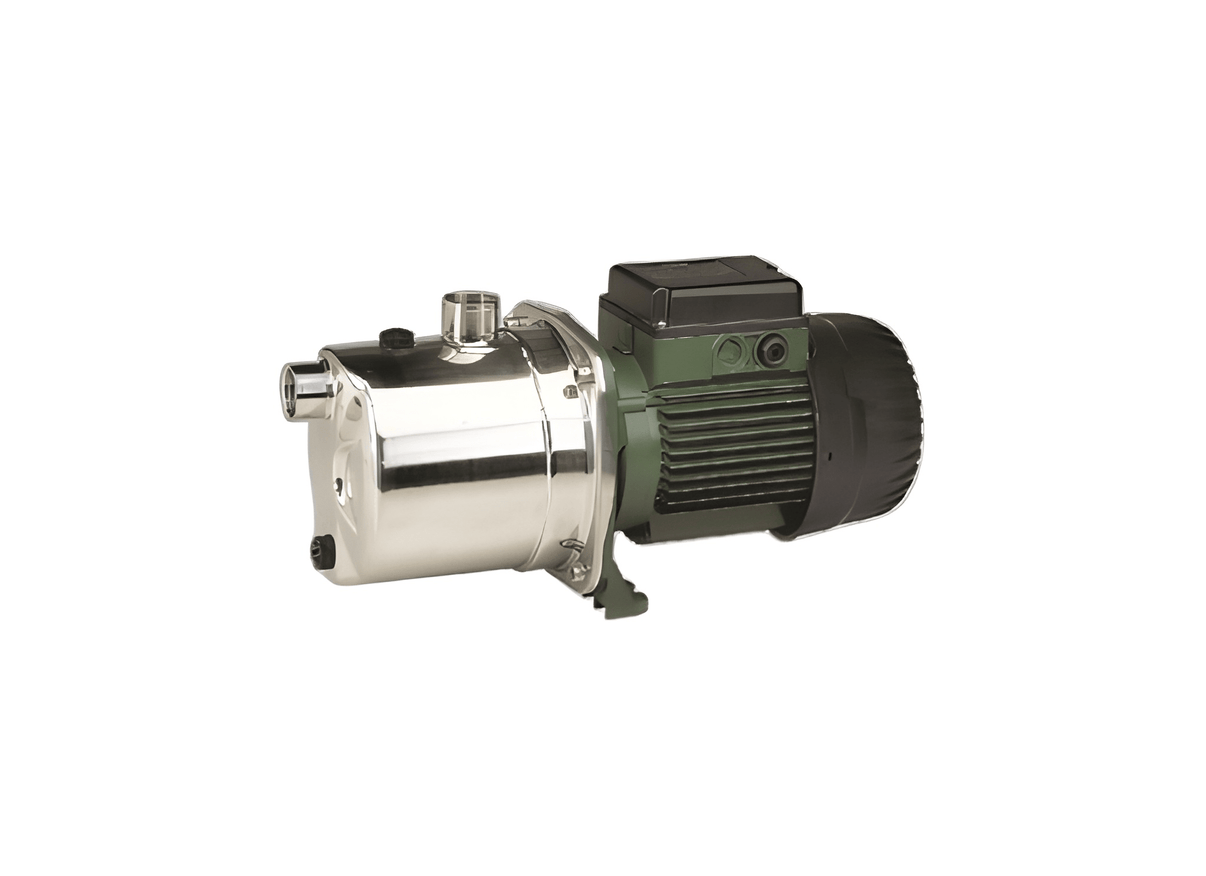

DAB JINOX102M Stainless Steel Self-Priming Jet Clean Water Pump with Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB JINOX102M is a self-priming stainless steel jet pump engineered for clean water applications including residential systems, garden irrigation, and small-scale agricultural use. Designed to deliver reliable suction performance, it maintains consistent water supply even in installations where air may be present in the suction line.
This pump is especially suited for domestic water systems, small farms, and light-duty service applications. It is capable of handling clean, non-aggressive, and non-viscous liquids, including water with low levels of sandy impurities, making it a versatile solution for everyday water transfer needs.
Constructed with a stainless steel pump body, seal holder cover, and wear ring, the JINOX102M provides excellent corrosion resistance and durability. The motor support is made from die-cast aluminium for structural strength, while the impeller, diffuser, and venturi tube are manufactured from technopolymer to ensure efficient hydraulic performance and smooth flow characteristics. A carbon/ceramic mechanical seal ensures reliable sealing and long service life.
The pump delivers a maximum head of 53.8 metres and a maximum flow rate of 60 L/Min, supporting stable pressure for domestic and irrigation systems. It offers self-priming capability with a maximum suction depth of up to 8 metres under optimal conditions.
Powered by a 0.75 kW (1 hp) single-phase motor operating on 240V, the pump features built-in thermo-amperometric protection and a permanently engaged capacitor for safe and reliable operation. The motor is of asynchronous type with external air cooling and is mounted on oversized greased-for-life ball bearings to ensure low noise and long operational life.
The pump is designed for horizontal installation and operates efficiently within a liquid temperature range up to 35°C for domestic use. It supports a maximum operating pressure of 8 bar and complies with standard installation and performance requirements.
FEATURES- Self-priming jet pump with strong suction capability up to 8 metres
- Suitable for clean water with low levels of sandy impurities
- Stainless steel pump body, seal holder cover, and wear ring
- Die-cast aluminium motor support for structural durability
- Technopolymer impeller, diffuser, and venturi for efficient hydraulic performance
- Carbon/ceramic mechanical seal for extended service life
- Asynchronous motor with external air cooling
- Thermo-amperometric protection with permanently engaged capacitor
- Low-noise operation with greased-for-life ball bearings
- Horizontal installation design for stable operation
- Maximum operating pressure up to 8 bar
- Suitable for clean, non-aggressive and non-viscous liquids
SPECIFICATIONS
| Max Flow | 60 L/Min |
| Max Head | 54 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.1 Amps |
| Suitable For | Water Transfer |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor output supports everyday domestic water transfer?
A 0.75 kW single-phase motor operates on 240V and DAB JINOX102M includes built-in thermo-amperometric protection for reliable domestic water transfer.
Which installation orientation is specified for this pump?
Horizontal installation is specified for this jet pump and DAB-JINOX102M has a stainless steel body with die-cast aluminium motor support.
What maximum head is available for pressure delivery?
A maximum head of 53.8 metres supports domestic pressure needs and DAB/JINOX102M also operates at a maximum pressure of 8 bar.
How deep can the pump draw water when primed?
The self-priming design supports suction up to 8 metres under optimal conditions and DAB_JINOX102M uses a carbon/ceramic mechanical seal for domestic water systems.
Which liquids can the pump handle in routine applications?
The pump delivers up to 60 L/Min and DAB JINOX102M handles clean non-aggressive non-viscous liquids including water with low sandy impurities.
