SKU: 808418

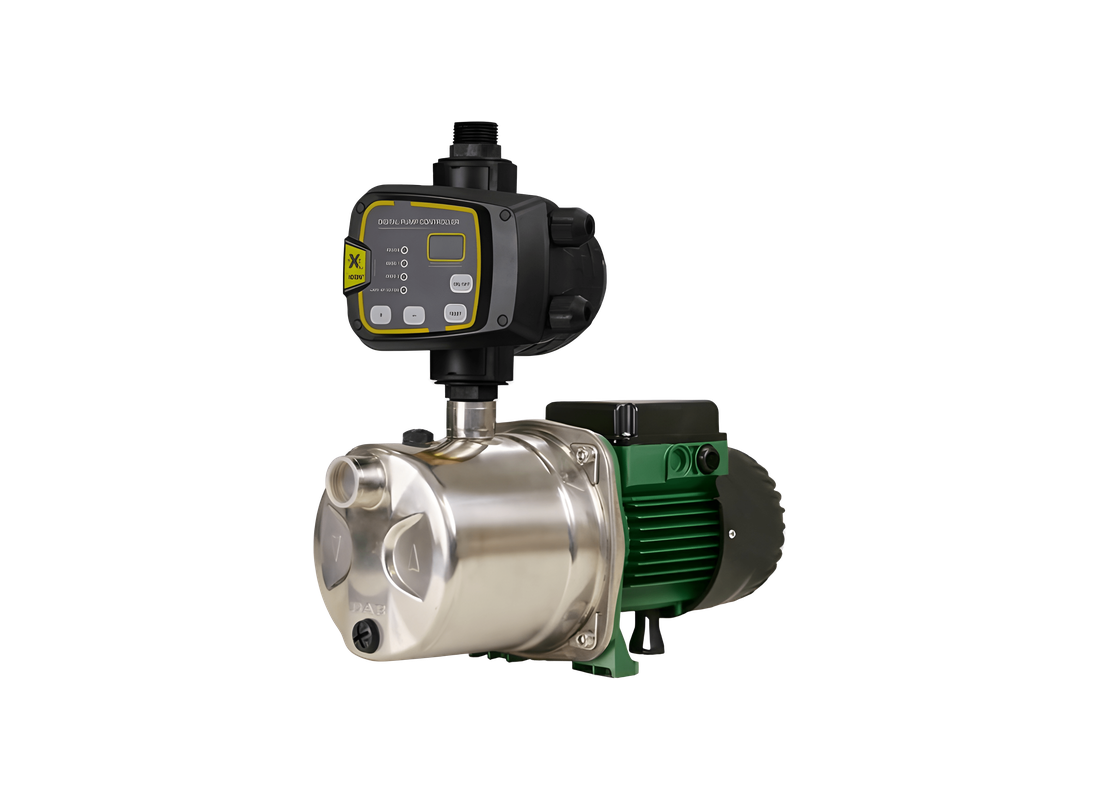

DAB JINOX102PRO Stainless Steel nXt PRO Self-Priming Jet Home Pressure Pump Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB JINOX102PRO is a high-performance self-priming jet pump designed for home pressure systems, water transfer, and light irrigation applications. Equipped with the advanced nXt PRO controller, it ensures automatic operation, consistent pressure delivery, and protection against dry running, making it ideal for modern residential setups.
Constructed with a stainless steel pump body, seal holder, and wear ring, the pump provides excellent corrosion resistance and long-term durability. The internal hydraulic components including the impeller, diffuser, and venturi are made from technopolymer, ensuring efficient water flow and reliable performance. A carbon/ceramic mechanical seal enhances sealing reliability and extends service life.
This model delivers a maximum head of 53.8 metres and a maximum flow rate of 60 L/Min, making it suitable for high-pressure domestic applications. The self-priming capability allows efficient suction even in the presence of air, with a maximum suction depth of up to 8 metres under optimal conditions.
Powered by a 0.75 kW single-phase motor operating on 240V, the pump includes built-in thermal protection and a permanently engaged capacitor for safe and reliable operation. Designed for horizontal installation, it is suitable for clean water and supports liquid temperatures up to 35°C.
FEATURES- nXt PRO controller for automatic start, stop, and pressure regulation
- Dry-run protection to prevent damage during low water conditions
- Consistent pressure output for stable home water systems
- Self-priming capability handling air in suction line efficiently
- Stainless steel construction for corrosion resistance
- Technopolymer hydraulic components for efficient performance
- Carbon/ceramic mechanical seal for extended durability
- Thermal motor protection for safe operation
- Low-noise motor with permanently lubricated bearings
- Compact horizontal design for easy installation
- Suitable for clean, non-aggressive and non-viscous liquids
SPECIFICATIONS
| Max Flow | 60 L/Min |
| Max Head | 54 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.1 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which controller features help protect the pump during operation?What are the maximum head and flow ratings?What motor output and electrical supply are required?Which materials are used for the main body and hydraulics?What suction depth is supported when water contains air?
Automatic start-stop operation and pressure regulation come from the nXt PRO controller in JINOX102_PRO which also provides dry-run protection for household water systems.For JINOX102 PRO the maximum head is 53.8 metres and the maximum flow rate is 60 L/min under defined conditions.Power comes from a 0.75 kW single-phase motor in JINOX102-PRO operating on 240 V with thermal protection and a permanently engaged capacitor.Stainless steel forms the body of JINOX102/PRO while technopolymer hydraulic parts work with a carbon ceramic mechanical seal for reliable water handling.Even with air present in the suction line JINOX102PRO supports water intake from a suction depth of up to 8 metres.
