SKU: 701587

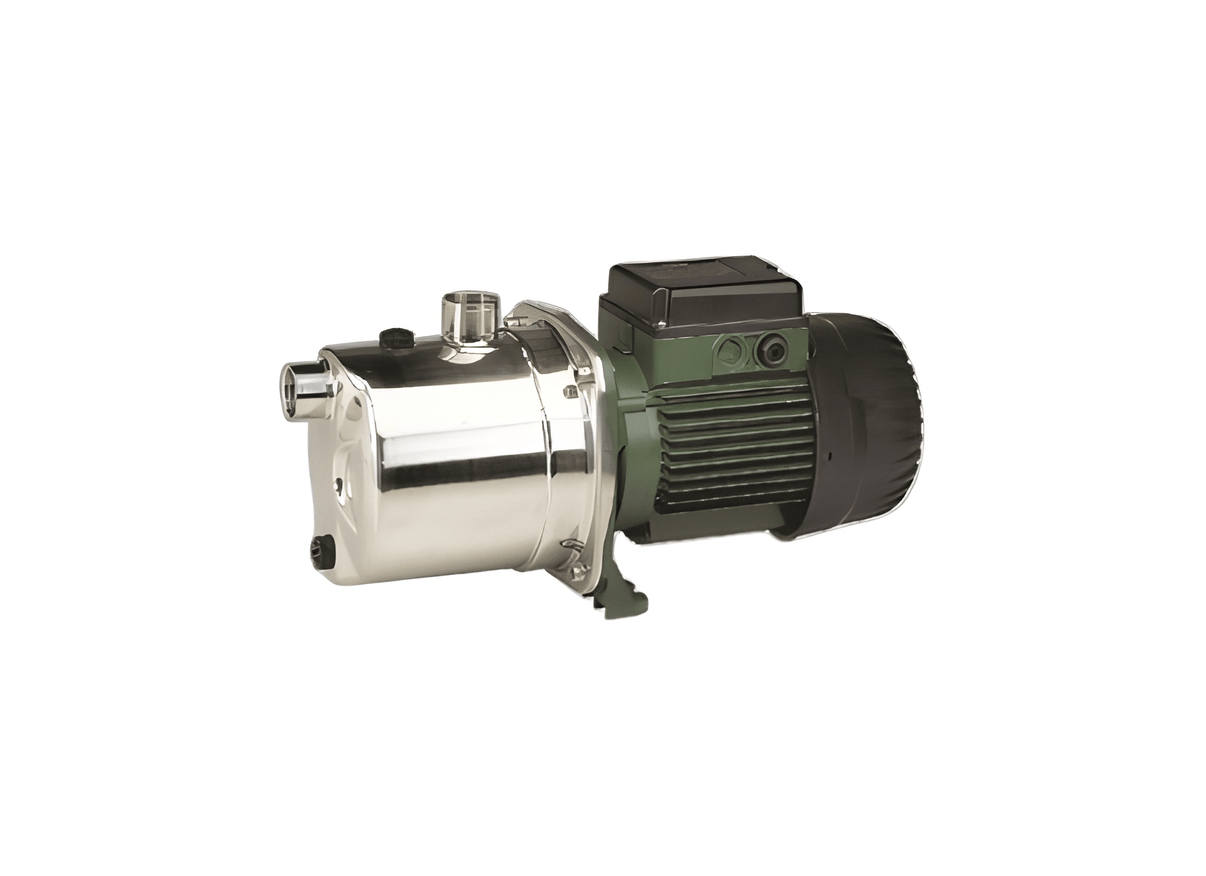

DAB JINOX112M Stainless Steel Self-Priming Jet Clean Water Pump with Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB JINOX112M is a self-priming stainless steel jet pump designed for clean water applications including domestic water systems, garden irrigation, and small-scale agricultural use. It offers excellent suction capability even in the presence of air bubbles, ensuring reliable operation in demanding conditions.
Suitable for domestic water supply installations, small farms, and light-duty service applications, the pump is capable of handling clean, non-aggressive, and non-viscous liquids, including water with low levels of sandy impurities. It is engineered for consistent performance across a wide range of operating conditions.
Constructed with a stainless steel pump body, seal holder cover, and wear ring, the pump provides strong corrosion resistance and long service life. The motor support is made from die-cast aluminium, while the impeller, diffuser, and venturi tube are manufactured from technopolymer for efficient hydraulic performance. A carbon/ceramic mechanical seal ensures reliable sealing and durability.
This model delivers a maximum head of 61 metres and a maximum flow rate of 60 L/Min, supporting high-pressure performance in residential and agricultural applications. The self-priming design allows suction up to 8 metres under optimal conditions.
Powered by a 1 kW single-phase motor operating on 240V, the pump features an asynchronous motor with external air cooling, built-in thermo-amperometric protection, and a permanently engaged capacitor for safe and reliable operation. The motor is supported by oversized greased-for-life ball bearings to ensure low-noise operation and extended service life.
The pump is designed for horizontal installation and operates with liquid temperatures up to 35°C for domestic use, making it suitable for continuous clean water applications.
FEATURES
- Self-priming jet pump with suction capability up to 8 metres
- Excellent performance even in presence of air bubbles
- Suitable for clean water with low levels of sandy impurities
- Stainless steel pump body, seal holder, and wear ring
- Die-cast aluminium motor support for structural strength
- Technopolymer impeller, diffuser, and venturi system
- Carbon/ceramic mechanical seal for extended service life
- Thermo-amperometric motor protection with built-in capacitor
- Externally cooled asynchronous motor design
- Low-noise operation with greased-for-life ball bearings
- Designed for horizontal installation
- Suitable for clean, non-aggressive and non-viscous liquids
SPECIFICATIONS
| Max Flow | 60 L/Min |
| Max Head | 61 m |
| Power | 1 kW / 240v |
| Rated Current | 6.2 Amps |
| Suitable For | Rural Irrigation |
| Body Material | Stainless Steel |
| Liquid Temperature | Stainless Steel |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much suction lift can support water transfer from tanks?
For tank water transfer DAB JINOX112M offers self-priming suction up to 8 metres under optimal conditions even when air bubbles are present.
Which materials are used in the hydraulic components?
The impeller diffuser and venturi use technopolymer while DAB-JINOX112M has a stainless steel body and sturdy die-cast aluminium motor support.
What liquid types are suitable for this jet pump?
Clean non-aggressive and non-viscous liquids are suitable for DAB/JINOX112M including water containing low levels of sandy impurities during normal operation.
Which motor protections support reliable domestic water operation?
Thermo-amperometric protection and a permanently engaged capacitor support the 1 kW single-phase motor in DAB_JINOX112M while operating safely on 240V.
What maximum head supports irrigation and residential water supply?
Residential supply and irrigation can use DAB JINOX112M which reaches a maximum head of 61 metres and flow rates up to 60 L/Min.
