SKU: 701598

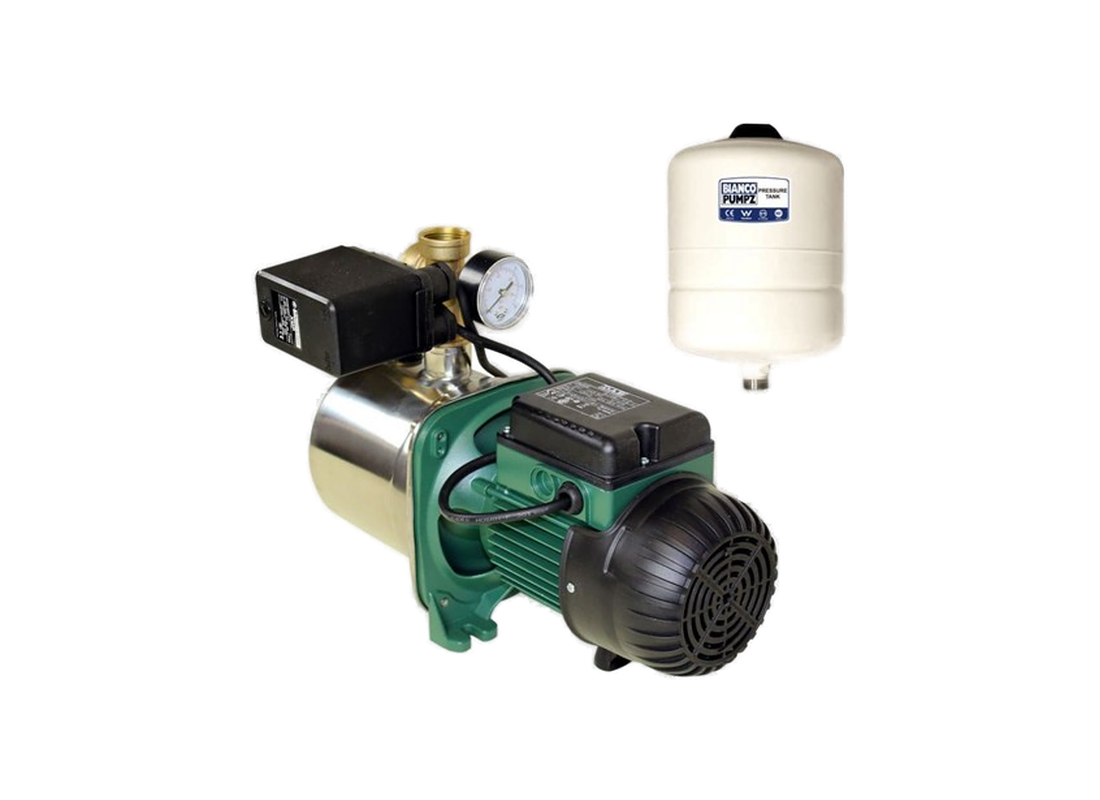

DAB JINOX62MP-8V Stainless Steel Self-Priming Jet Domestic Water Pump with Pressure Switch and 8L Tank
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB JINOX62MP-8V is a surface-mounted self-priming jet pump system designed for domestic water supply, pressure boosting, and light irrigation applications. Supplied with an integrated pressure switch and an 8-litre vertical pressure tank, this unit ensures automatic operation, consistent pressure, and reduced pump cycling for improved efficiency and reliability.
Constructed with a stainless steel pump body, seal holder, and wear ring, the pump offers excellent corrosion resistance and long-lasting durability. The internal hydraulic components including the impeller, diffuser, and venturi are made from technopolymer, providing efficient performance and smooth water flow. A carbon/ceramic mechanical seal ensures dependable sealing and extended service life.
This model delivers a maximum head of 42 metres and a maximum flow rate of 45 L/Min, making it suitable for maintaining steady water pressure in residential systems. Its self-priming capability enables efficient suction even with air present in the suction line, with a maximum suction depth of up to 8 metres under optimal conditions.
Powered by a 0.44 kW single-phase motor operating on 240V, the pump includes built-in thermal protection for safe operation. The combination of pressure switch and vertical tank allows automatic start/stop control while minimizing frequent cycling and pressure fluctuations.
FEATURES- Integrated pressure switch for automatic pump control
- 8-litre vertical pressure tank for stable pressure and reduced cycling
- Smooth pressure delivery for consistent household water use
- Self-priming design capable of handling air in suction line
- Stainless steel construction for corrosion resistance
- Technopolymer hydraulic components for efficient operation
- Carbon/ceramic mechanical seal for long service life
- Thermal motor protection for safe and reliable performance
- Low-noise motor with permanently lubricated bearings
- Surface-mounted configuration for easy installation
- Suitable for clean, non-aggressive and non-viscous liquids
SPECIFICATIONS
| Max Flow | 45 L/Min |
| Max Head | 42 m |
| Power | 0.44 kW / 240v |
| Rated Current | 3.1 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What helps reduce frequent starts during household water use?What construction materials resist corrosion in the pump assembly?How much suction lift is supported by this model?What are the maximum head and flow figures?Which motor protection is included for electrical operation?
Pressure remains steadier during household demand because JINOX62MP_8V pairs an integrated pressure switch with an 8-litre vertical tank to reduce repeated starts.Stainless steel body components resist corrosion while technopolymer hydraulic parts and a carbon ceramic seal are used in JINOX62MP 8V.Drawing water through a suction depth up to 8 metres is supported by JINOX62MP-8V even when air is present in the line.For JINOX62MP/8V the maximum head is 42 metres and the maximum flow rate is 45 L/min under defined conditions.Thermal protection is built into the 0.44 kW single-phase motor of JINOX62MP8V which operates on a 240 V supply.
