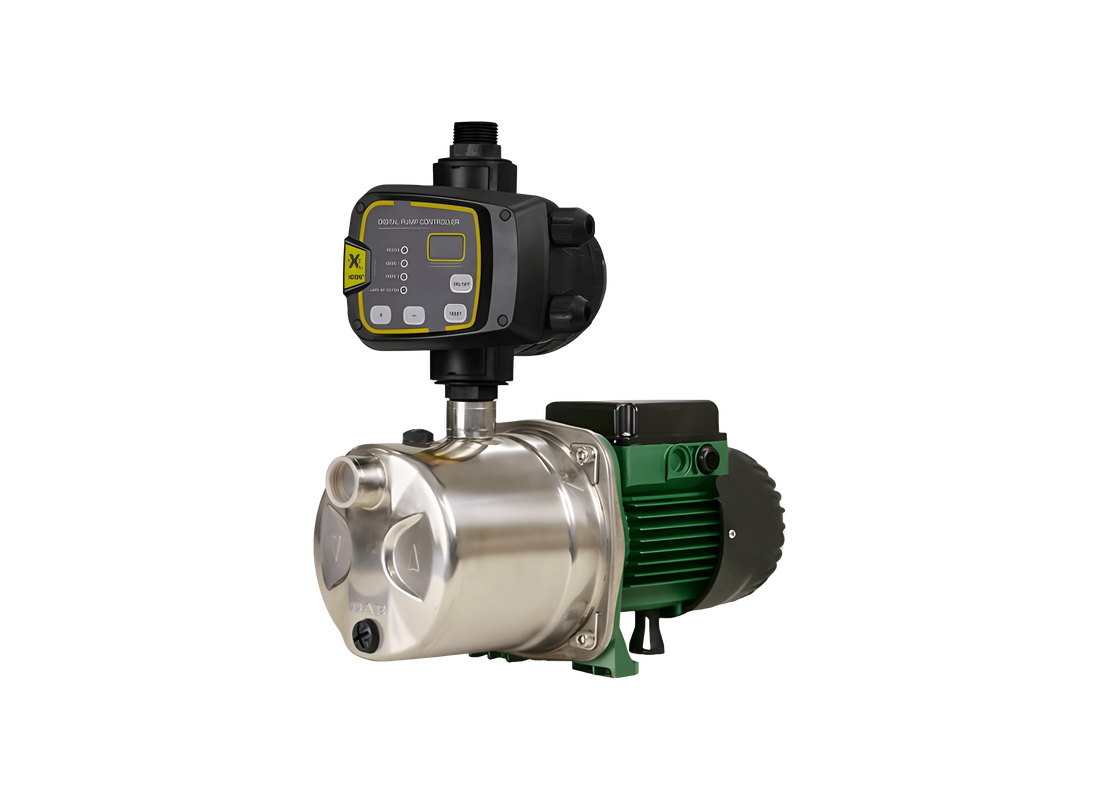

DAB JINOX62PRO Stainless Steel nXt PRO Self-Priming Jet Domestic Pump with Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB JINOX62PRO is a compact and efficient self-priming jet pump designed for domestic water supply, pressure boosting, and small-scale irrigation applications. Its integrated nXt PRO pump controller ensures automatic operation, consistent pressure, and protection against dry running, making it ideal for residential and light-duty water systems.
Constructed with a stainless steel pump body, seal holder, and wear ring, the pump offers excellent corrosion resistance and long service life. The internal hydraulic components including the impeller, diffuser, and venturi are manufactured from technopolymer, ensuring reliable performance and smooth operation. A carbon/ceramic mechanical seal enhances durability and sealing efficiency under continuous operation.
This model delivers a maximum head of 42 metres with a maximum flow rate of 45 L/Min, making it suitable for moderate pressure requirements in domestic installations. The self-priming capability allows efficient suction even in the presence of air, with a maximum suction depth of up to 8 metres under optimal conditions.
The pump is powered by a 0.44 kW single-phase electric motor operating on 220–240V, featuring built-in thermal protection and a permanently engaged capacitor for reliable starting and operation. Designed for horizontal installation, it operates with clean water and supports liquid temperatures up to 35°C for domestic use.
FEATURES- Integrated nXt PRO controller with automatic start/stop functionality
- Dry-run protection to prevent damage during water shortage
- Consistent pressure management for stable water delivery
- Self-priming design capable of handling air in suction line
- Stainless steel hydraulic components for corrosion resistance
- Technopolymer hydraulic system for smooth and efficient flow
- Carbon/ceramic mechanical seal for extended service life
- Thermo-amperometric motor protection for safe operation
- Low-noise motor with permanently lubricated bearings
- Compact horizontal installation suitable for tight spaces
- Designed for clean, non-aggressive and non-viscous liquids
SPECIFICATIONS
| Max Flow | 45 L/Min |
| Max Head | 42 m |
| Power | 0.44 kW / 240v |
| Rated Current | 3.1 Amps |
| Suitable For | Water Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What protections are included in the automatic controller?Which liquid conditions are suitable for this pump?How far can the pump lift water through suction?What are the maximum flow and head ratings?Which motor and electrical features support reliable operation?
The nXt PRO controller in JINOX62_PRO provides dry-run protection and automatic start-stop control for residential pressure systems and small irrigation duties.Clean water at temperatures up to 35°C is suitable for JINOX62 PRO which is intended for non-aggressive and non-viscous liquids.Water can be drawn from up to 8 metres of suction depth by JINOX62-PRO even when air remains in the suction line.JINOX62/PRO has a maximum flow of 45 L/min and a maximum head of 42 metres under the described operating conditions.A 0.44 kW single-phase motor powers JINOX62PRO on 240 V and includes thermal protection plus a permanently engaged capacitor.
