SKU: 701605

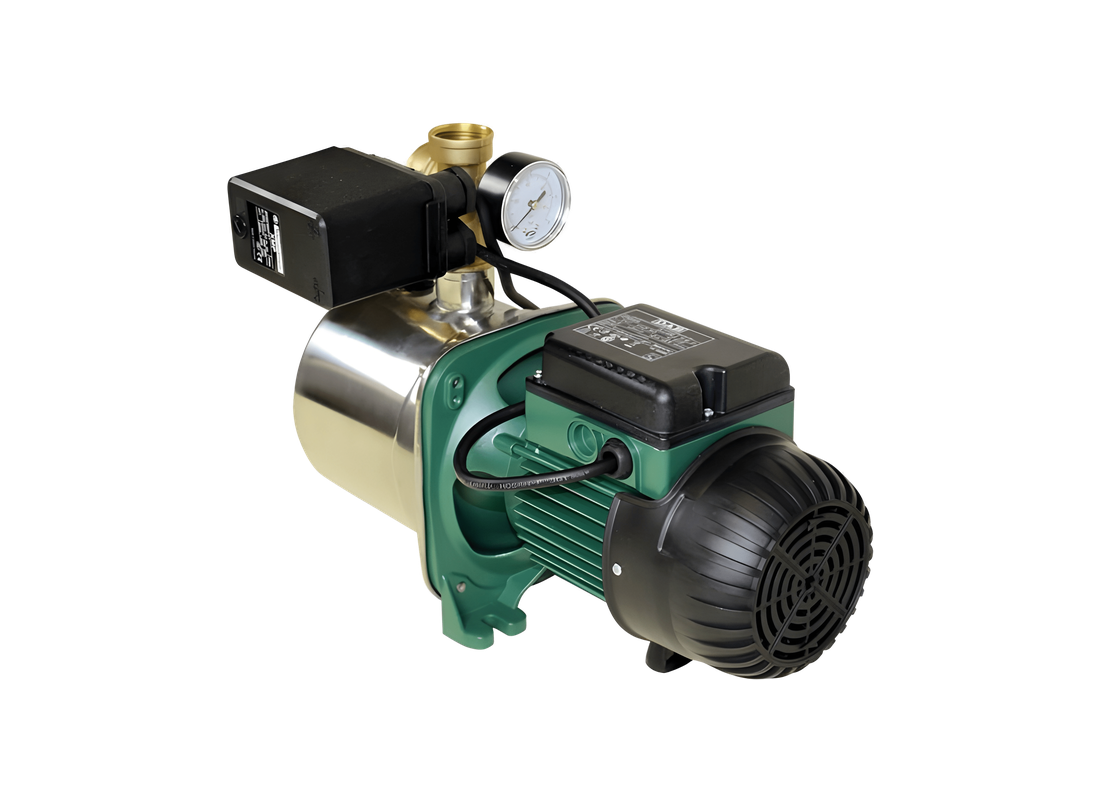

DAB JINOX82MP Stainless Steel Self-Priming Jet Domestic Water Pump with Pressure Switch Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB JINOX82MP is a surface-mounted self-priming jet pump designed for domestic water systems, pressure boosting, and light irrigation applications. Equipped with an integrated pressure switch, it provides automatic start and stop operation, ensuring stable pressure and efficient water delivery in residential installations.
Built with a stainless steel pump body, seal holder, and wear ring, the pump offers excellent corrosion resistance and long-lasting durability. The internal hydraulic components including the impeller, diffuser, and venturi are manufactured from technopolymer, ensuring smooth flow performance and efficient operation. A carbon/ceramic mechanical seal enhances reliability and service life.
This model delivers a maximum head of 47 metres and a maximum flow rate of 60 L/Min, supporting consistent pressure and water transfer across domestic applications. The self-priming design enables effective suction even in the presence of air, with a maximum suction depth of up to 8 metres under optimal conditions.
Powered by a 0.6 kW single-phase motor operating on 240V, the pump includes built-in thermal protection for safe operation. Designed for horizontal installation, it is suitable for clean water and supports liquid temperatures up to 35°C.
FEATURES- Integrated pressure switch for automatic pump operation
- Self-priming capability with efficient air handling
- Stable pressure output for residential water systems
- Stainless steel construction for corrosion resistance
- Technopolymer hydraulic components for efficient performance
- Carbon/ceramic mechanical seal for extended durability
- Thermal motor protection for safe and reliable operation
- Low-noise motor with permanently lubricated bearings
- Surface-mounted configuration for easy installation
- Designed for clean, non-aggressive and non-viscous liquids
SPECIFICATIONS
| Max Flow | 60 L/Min |
| Max Head | 47 m |
| Power | 0.6 kW / 240v |
| Rated Current | 3.8 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is automatic pressure control provided during use?What are the maximum head and flow figures?Which materials form the body and internal hydraulic components?What liquid temperature range is supported for operation?How far can it lift water from a source?
Household pressure control comes from the integrated switch on JINOX82_MP which starts and stops pumping automatically for residential water use.For JINOX82 MP the maximum flow is 60 L/min and the maximum head is 47 metres under defined conditions of operation.The body of JINOX82-MP is stainless steel while technopolymer forms the impeller diffuser and venturi alongside a carbon ceramic mechanical seal.Clean water up to 35°C suits JINOX82/MP which is designed for horizontal surface-mounted installation in domestic systems and light irrigation.Air in the suction line can be handled by JINOX82MP which supports suction lift up to 8 metres from suitable water sources.
