SKU: 701753

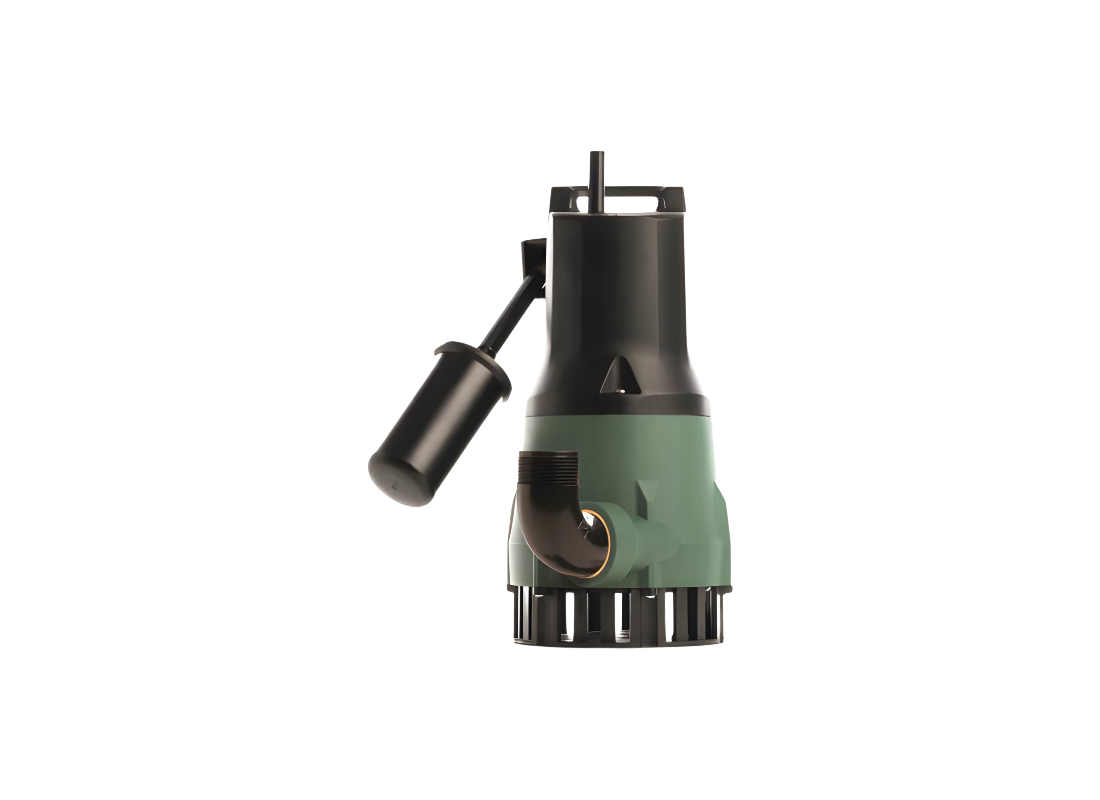

DAB NOVA600A Technopolymer Automatic Float Drainage Pump for Flood Protection with 10mm Particle Handling
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
Automatically managing groundwater ingress in domestic settings is streamlined with the inclusion of a rigid float arm for fixed installations. This submersible unit is ideal for protecting garages and subways from flooding or for general gardening applications requiring hands-free operation. Its compact form factor allows for easy handling in emergency scenarios, such as emptying tanks or excavations, providing a versatile drainage solution for homeowners and commercial building service operators.
Engineered for high-volume transfer, the 0.55 kW asynchronous motor draws 3 Amps from a 240v power source to move up to 270 L/Min. The system supports a maximum head of 10.2 m, providing the pressure behavior needed to lift wastewater from deep basements or sub-surface excavations. Rated for continuous duty, the motor maintains stable operation and efficiency while tolerating immersion depths up to 7 m in varied domestic and hobbyist environments.
Handling loaded fluids is simplified by a technopolymer impeller and a specialized suction grid that allows for 10 mm solid passage. This design prevents clogging from larger debris during the drainage of pedestrian subways or swimming pools, ensuring liquid movement remains consistent. The integrated level switch triggers automatic start and stop cycles based on fluid levels, facilitating efficient water management without requiring constant manual supervision during flooding events.
Construction features a hydro-resistant technopolymer housing and cover paired with an AISI 304 stainless steel motor case for superior corrosion resistance. The internal sealing arrangement uses a threefold seal with an oil pre-chamber to isolate the electrical assembly from the pumped media. Thermal protection is built directly into the motor windings, while oversized ball bearings minimize noise during operation, ensuring the pump remains a durable asset for domestic flood protection.
FEATURES
- Integrated rigid float arm enables automatic operation for hands-free drainage and flood protection stations.
- Technopolymer impeller and suction grid allow for 10 mm solid passage to prevent clogging from debris.
- Stainless steel motor case and rotor shaft ensure high corrosion resistance in submerged residential service.
- Threefold seal system with an internal oil pre-chamber prevents liquid from entering the electrical assembly.
- Asynchronous continuous duty motor supports deep deployment with a maximum immersion depth of 7 metres.
- Standard built-in thermal protection with auto-reset safeguards the motor against over-temperature events.
- Oversized ball bearings are permanently lubricated to ensure quiet operation and long-term durability.
- Hydro-resistant technopolymer construction ensures the unit remains easy to handle for emergency use.
SPECIFICATIONS
| Max Flow | 270 L/Min |
| Max Head | 10.2 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.4 Amps |
| Suitable For | Flood Protection |
| Body Material | Technopolymer |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What solid passage helps the pump handle debris during drainage?
The technopolymer impeller and suction grid allow 10 mm solid passage while DAB NOVA600A suits domestic drainage and flood protection.
Which motor power and supply are used for domestic flood protection?
A 0.55 kW asynchronous motor runs from a 240V supply and DAB-NOVA600A draws 3 A during normal domestic drainage operation.
How deep can the unit be immersed during drainage operations?
Immersion depths can reach 7 m and DAB/NOVA/600A uses a threefold seal with an oil pre-chamber to isolate electrical components.
What flow capacity is available for clearing tanks and flooded areas?
Floodwater removal supports flow rates up to 270 L/Min and DAB_NOVA_600A has a separate maximum head of 10.2 m for lifting.
Which sealing arrangement helps protect electrical components from pumped liquid?
A threefold seal and oil pre-chamber help prevent liquid ingress and DAB NOVA 600A also includes built-in thermal motor protection.
