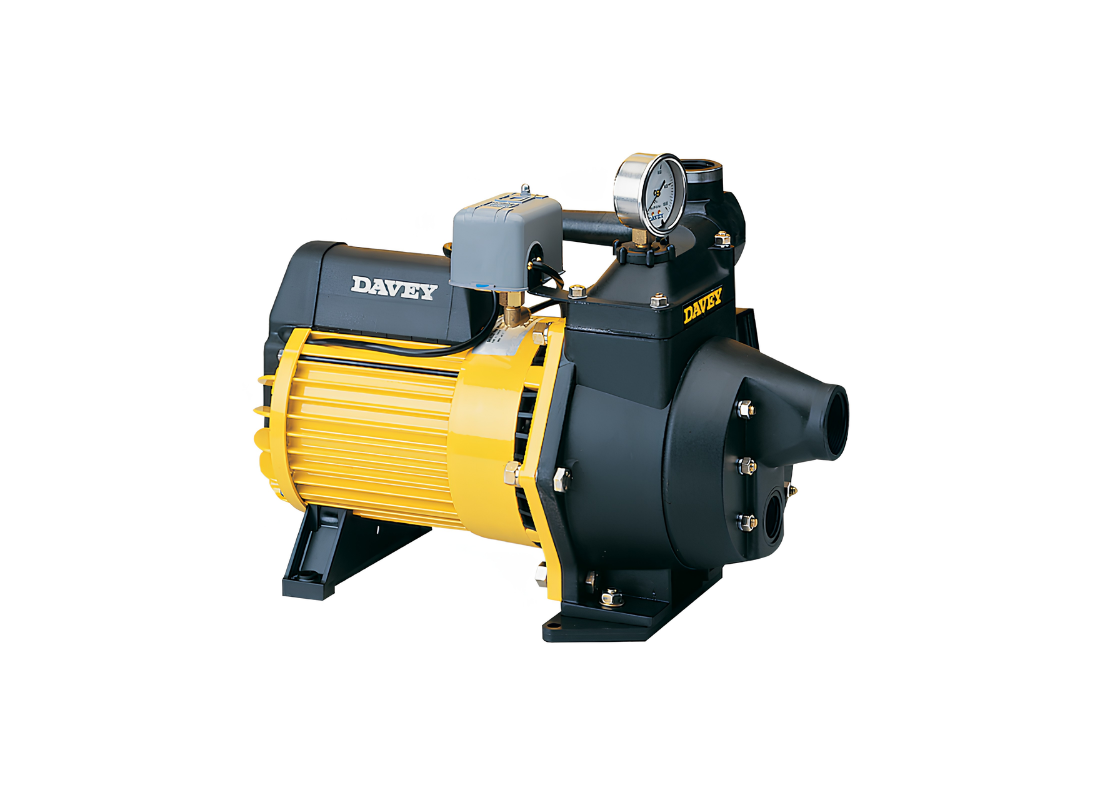

The Davey K165D3475 deep well jet pump is designed for applications where water needs to be lifted from deeper bore sources with strong pressure. It is ideal for irrigation, sprinkler systems, tank filling, and water supply setups where higher discharge pressure is required overflow rate.
This model operates with injector kit 22475 and delivers a maximum flow of 25 L/Min while developing pressure up to approximately 76.4 m head. This makes it suitable for installations where lifting height and pressure performance are more critical than water volume.
The pump features a marine grade aluminium body with an internal Rilsan® lining, providing excellent corrosion resistance and long service life. Internal hydraulic components such as the diffuser and impeller are made from engineered materials designed for durability and reliable performance in demanding bore conditions.
It is powered by a 1.8 kW three phase motor operating on 415V supply at 2900 rpm. Built with Class F insulation and IP56 protection, the pump is designed for dependable operation. The system also includes an ADR valve, pressure switch, and pressure gauge for smooth integration into automatic pressure systems.
FEATURES
- Injector kit 22475 (4” bore, 100 mm)
- Maximum bore depth capability: up to 50 m
- Marine grade aluminium body with Rilsan® lining
- Glass filled polycarbonate impeller
- Glass filled Noryl diffuser and hydraulic components
- Ceramic/carbon mechanical seal with nitrile O-rings
- ADR valve, pressure switch and pressure gauge fitted
- IP56 motor protection with Class F insulation
- Three phase motor suitable for continuous duty operation
- Operating liquid temperature: 1°C to 50°C
