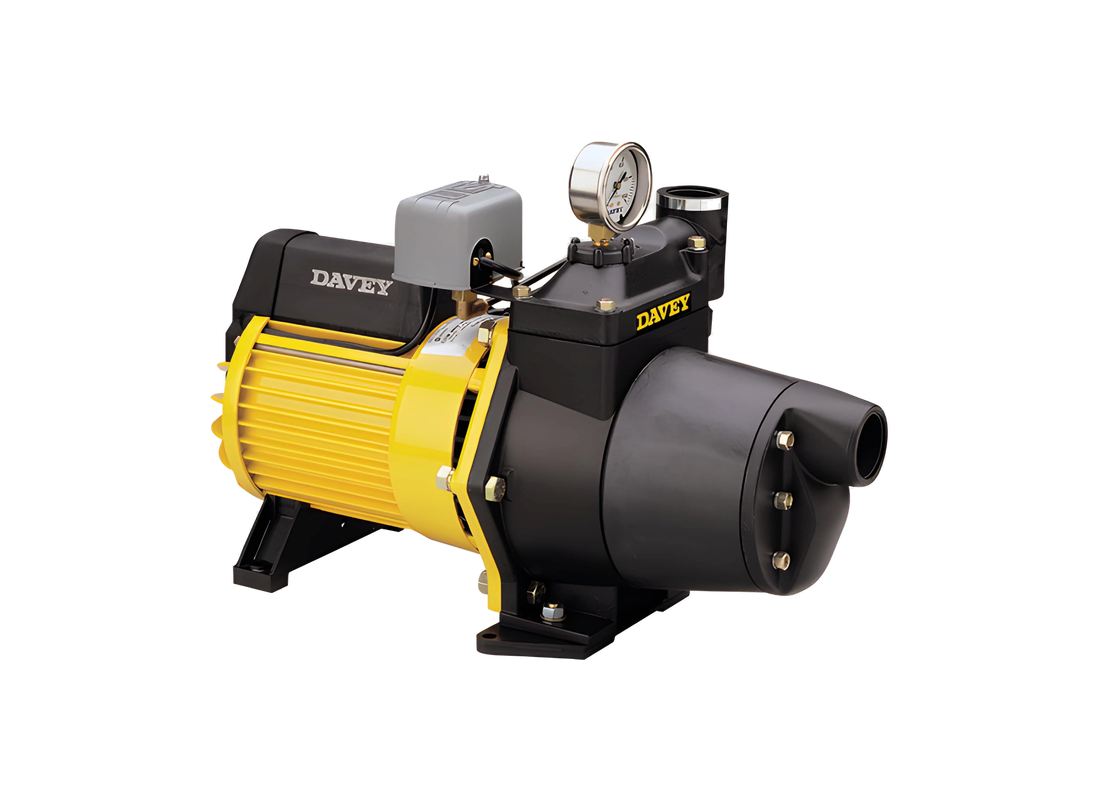

The Davey K165S3699 three phase shallow well jet pump is designed for high-pressure water delivery in rural irrigation, tank filling, stock watering, and sprinkler systems. It is suitable for continuous-duty operation in demanding agricultural and remote environments where consistent pressure performance is required.
This jet-assisted single stage pump uses interchangeable jet and venturi kits to match performance to specific site conditions. It delivers a maximum flow of 53 L/Min and develops pressure up to approximately 83 m head, making it suitable for applications requiring higher pressure output.
The pump features a composite construction with a marine grade aluminium outer casing and a fully lined Rilsan® internal body for superior corrosion resistance. Internal hydraulic components including diffuser, backplate and jet housing are made from glass filled Noryl, while the impeller is constructed from glass filled polycarbonate for strength and efficient operation.
Powered by a Davey manufactured 1.8 kW three phase motor, the unit operates on 415V supply at 2900 rpm. It is designed for reliable operation in high ambient temperatures and variable voltage conditions, and is suitable for automatic pressure systems when used with pressure tanks.
FEATURES
- Jet kit 22699 (Jet-Red / Venturi-Green)
- Maximum suction head: 7.5 m
- Rated current: 4.2 Amps
- Marine grade aluminium body with Rilsan® lining
- Glass filled polycarbonate impeller
- Glass filled Noryl hydraulic components
- 316 stainless steel shaft sleeve with ceramic/carbon seal
- Inlet 1½” BSP(F) | Outlet 1¼” BSP(F)
- Operating liquid temperature: 1°C to 50°C
- IP56 motor protection with Class F insulation
- Pressure switch fitted with pressure gauge supplied
