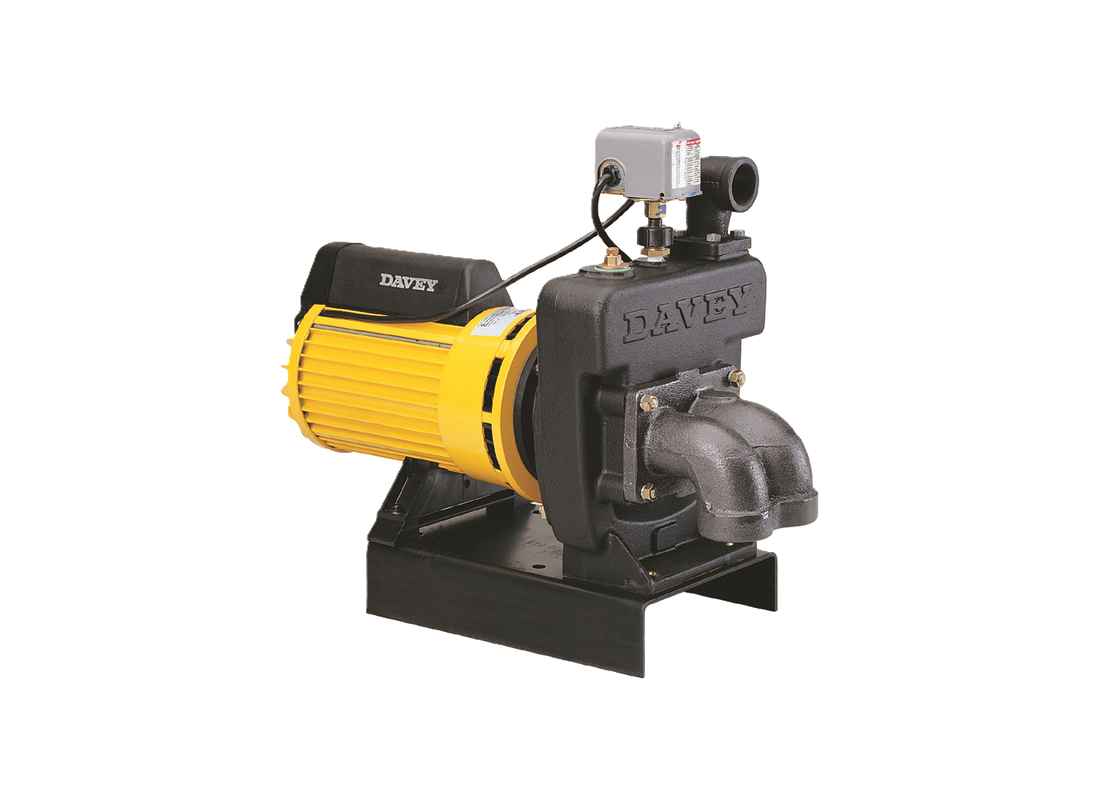

The Davey KPJ2403569 Prime Jet 240 deep well jet pump is designed for applications where strong pressure is required to lift water from deep bore sources. It is suitable for irrigation, sprinkler systems, tank filling, and remote installations where higher discharge pressure is more important than high flow.
This model is configured with injector kit 22569 and delivers a maximum flow of 52 L/Min while developing pressure up to approximately 84.6 m head. This makes it ideal for deeper installations where consistent pressure is needed to move water over longer distances or higher elevations.
The pump is constructed with a heavy-duty cast iron casing and a cast bronze impeller, ensuring durability and long service life. Internal components such as the diffuser and injector assembly are designed to resist corrosion and maintain performance under continuous operation.
Powered by a 2.3 kW three phase motor operating on 415V supply at 2850 rpm, the unit features Class F insulation and IP56 protection. It also includes an Automatic Demand Response (ADR) valve, pressure switch, and pressure gauge, allowing seamless integration into automatic pressure systems.
FEATURES
- Injector kit 22569 (5” bore, 125 mm)
- Maximum bore depth capability: up to 50 m
- Cast iron casing with cast bronze impeller
- Deep well injector housing in cast bronze
- Brass pipe fittings with stainless steel clamps
- Ceramic/carbon mechanical seal with nitrile O-rings
- Jet assisted single stage centrifugal design
- ADR valve, pressure switch and pressure gauge fitted
- IP56 motor protection with Class F insulation
- Operating liquid temperature: 1°C to 50°C
