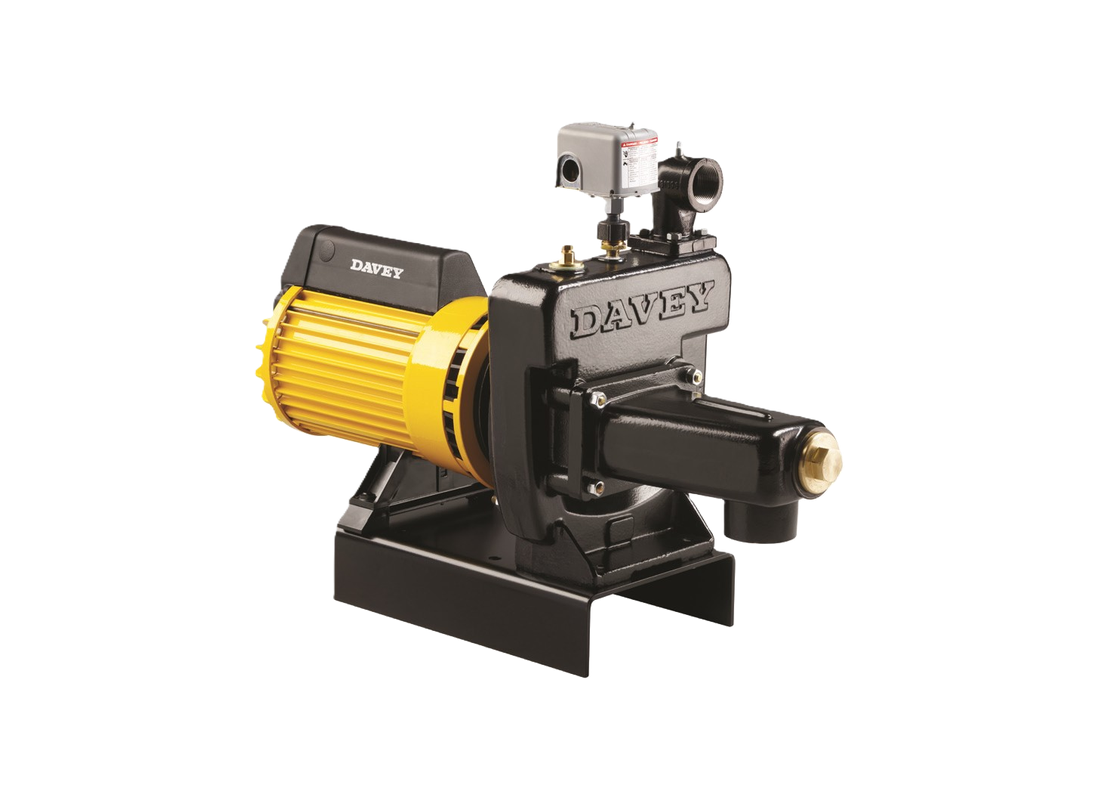

The Davey KPJ2403681 Prime Jet 240 shallow well jet pump is designed for high-pressure water delivery in tank filling, irrigation, stock watering, and sprinkler systems. It is suitable for continuous-duty operation in agricultural and remote environments where consistent and reliable performance is required.
This jet-assisted single stage centrifugal pump is configured with injector kit 22681 to deliver a strong balance of flow and pressure. It provides a maximum flow of 234 L/Min and develops pressure up to 57 m head, making it suitable for applications requiring both volume and pressure performance.
The pump features a robust cast iron casing combined with a cast bronze impeller, ensuring durability and long service life. Internal components including diffuser, jet and venturi are engineered for corrosion resistance and reliable operation under demanding conditions.
Powered by a 2.3 kW three phase motor operating on 415V supply at 2850 rpm, the unit is built with Class F insulation and IP56 protection. It is designed to perform reliably in high ambient temperatures and variable voltage conditions and can be integrated into automatic pressure systems using pressure tanks.
FEATURES
- Jet kit 22681 (Jet P/No 6076-4 / Venturi P/No 6075-5)
- Maximum suction head: 7.5 m
- Motor: 2.3 kW, 3 phase, 415V, 2850 rpm
- Maximum rated current: 5.1 Amps
- Cast iron pump body with cast bronze impeller
- Brass jet and venturi components
- Ceramic/carbon mechanical seal with nitrile O-rings
- Jet assisted single stage centrifugal design
- IP56 motor protection with Class F insulation
- Pressure switch fitted with pressure gauge supplied
- Inlet 1½” BSP(F) | Outlet 1¼” BSP(F)
- Operating liquid temperature: 1°C to 50°C
