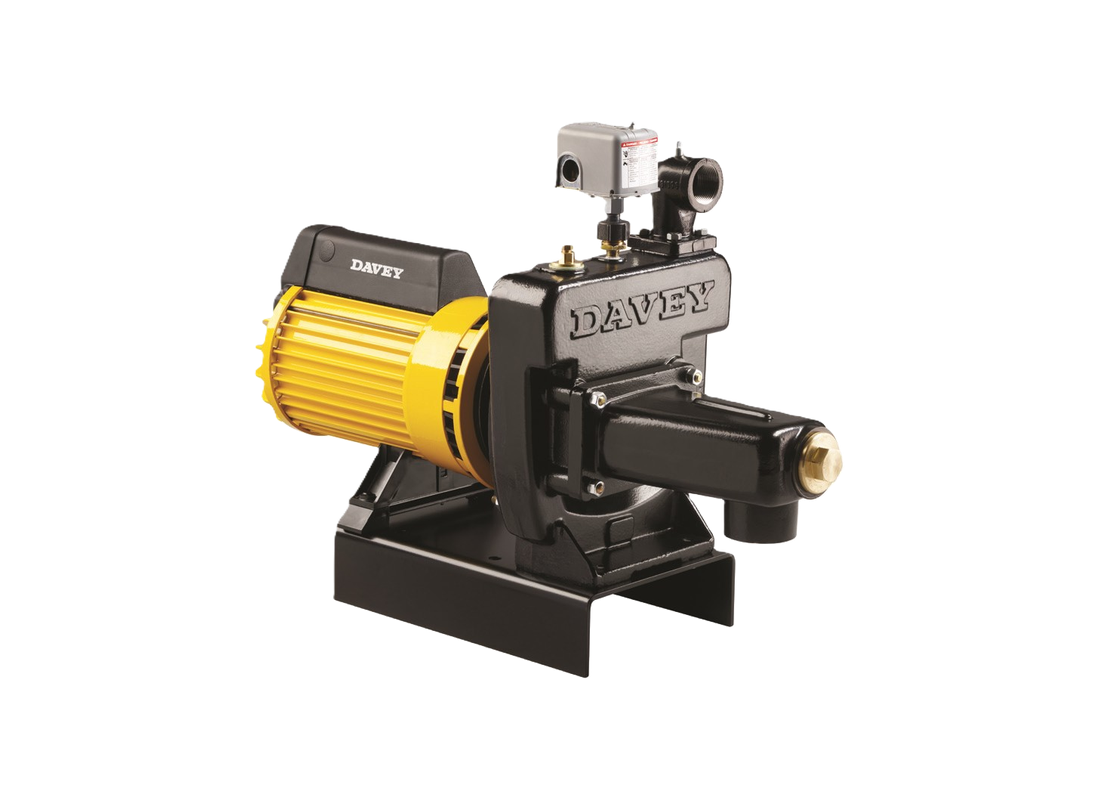

The Davey KPJ2403683 Prime Jet 240 shallow well jet pump is designed for high-pressure water delivery in irrigation, sprinkler systems, stock watering, and applications requiring strong discharge pressure. It is suitable for continuous-duty operation in agricultural and remote environments where reliable performance is essential.
This jet-assisted single stage centrifugal pump is configured with injector kit 22683 to deliver high-pressure output. It provides a maximum flow of 101 L/Min and develops pressure up to 79 m head, making it ideal for applications where pressure performance is the primary requirement.
Constructed with a heavy-duty cast iron casing and a cast bronze impeller, the pump offers excellent durability and long service life. Internal hydraulic components including diffuser, jet and venturi are engineered for corrosion resistance and dependable operation under demanding conditions.
The unit is powered by a 2.3 kW three phase motor operating on 415V supply at 2850 rpm. It features Class F insulation and IP56 protection, ensuring reliable operation in high ambient temperatures and variable voltage conditions, and can be integrated into automatic pressure systems with pressure tanks.
FEATURES- Jet kit 22683 (Jet P/No 6076-8 / Venturi P/No 6075-10)
- Maximum suction head: 7.5 m
- Motor: 2.3 kW, 3 phase, 415V, 2850 rpm
- Maximum rated current: 5.1 Amps
- Cast iron pump body with cast bronze impeller
- Brass jet and venturi components
- Ceramic/carbon mechanical seal with nitrile O-rings
- Jet assisted single stage centrifugal design
- IP56 motor protection with Class F insulation
- Pressure switch fitted with pressure gauge supplied
- Inlet 1½” BSP(F) | Outlet 1¼” BSP(F)
- Operating liquid temperature: 1°C to 50°C
