SKU: 2MIQ3-8-3-A

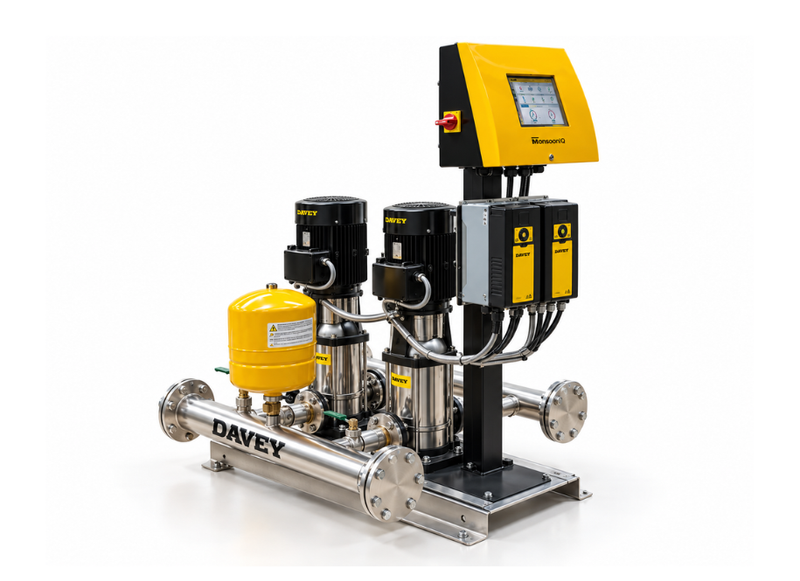

Davey Monsoon IQ 2MIQ3-8-3-A Twin Pump Variable Speed Booster System with 18L Tank
Australia-Wide
(08) 9240 2992
Official Davey
Peace of Mind
Product Overview
The Davey Monsoon IQ 2MIQ3-8-3-A Variable Speed Booster Pump Set is a fully integrated twin-pump pressure boosting system designed to provide consistent water pressure across varying levels of demand. Featuring two Davey VM3-8 stainless steel vertical multistage pumps operating in parallel, the system combines intelligent variable speed control with the advanced Monsoon IQ touchscreen controller for professional commercial, residential, irrigation and industrial water supply applications.
The Monsoon IQ system continuously monitors system pressure and automatically adjusts the speed of the active pumps to maintain the selected set-point pressure. As water demand increases or decreases, the system varies pump output accordingly, providing smooth pressure control while optimising the operation of the complete pumpset.
Each VM3-8 pump is powered by a 0.75kW three-phase motor and controlled through a dedicated Vacon variable speed drive. The twin-pump arrangement provides additional system capacity while allowing the intelligent controller to manage pump operation according to actual water demand.
A large 10.1-inch high-resolution touchscreen interface provides straightforward access to system operation, pressure settings, status information and system data. Monsoon IQ also incorporates remote connectivity capabilities, allowing integration with the Monsoon IQ cloud, as well as connection points for SCADA and Building Management Systems (BMS).
The complete booster package incorporates 304 stainless steel suction and discharge manifolds, suction-side non-return valves, suction and discharge isolation valves, pressure tank, variable speed drives, Monsoon IQ controller and common base, providing a professionally engineered and integrated booster system.
Designed for demanding water supply installations, the 2MIQ3-8-3-A features an 18L pressure tank, 2" BSPT system connections and a maximum system pressure rating of 16 bar, making it suitable for applications ranging from commercial building pressure boosting through to irrigation, agriculture and industrial water supply.
Key Features
- Complete twin-pump variable speed booster system
- 2 x Davey VM3-8 vertical multistage pumps
- 2 x 0.75kW motors
- 380–415V three-phase power supply
- Intelligent Monsoon IQ constant pressure control
- Dedicated variable speed drive control
- Automatically adjusts pump speed as water demand changes
- Automatic pump staging according to system requirements
- Large 10.1-inch TFT touchscreen interface
- High-resolution 1920 x 1200 touchscreen display
- Monsoon IQ cloud connectivity
- Remote monitoring and diagnostic capability
- SCADA and BMS connection capability
- 304 stainless steel suction and discharge manifolds
- Suction-side non-return valves
- Suction and discharge isolation valves
- 18L pressure tank included
- 2" BSPT system connections
- Maximum system pressure rating of 16 bar
- Soft-fill functionality for controlled pipeline filling
- Upper and lower pressure limit protection
- Automatic wake-up pressure control
- Controller housed in an IP55 enclosure
- Factory engineered integrated booster package
What's Included
- 2 x Davey VM3-8 vertical multistage pumps
- 2 x 0.75kW three-phase motors
- Vacon variable speed drives
- Davey Monsoon IQ intelligent controller
- 10.1" touchscreen interface
- Wireless connectivity hardware
- 18L pressure tank
- 304 stainless steel suction manifold
- 304 stainless steel discharge manifold
- Suction-side non-return valves
- Suction isolation valves
- Discharge isolation valves
- Pressure monitoring equipment
- Common booster system base
- Integrated system controls
SPECIFICATIONS
| Max Flow | 133 LPM |
| Max Head | 50 m |
| Power | 2 x 0.75 kW / 415v |
| Suitable For | Commercial Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15°C – 120°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
