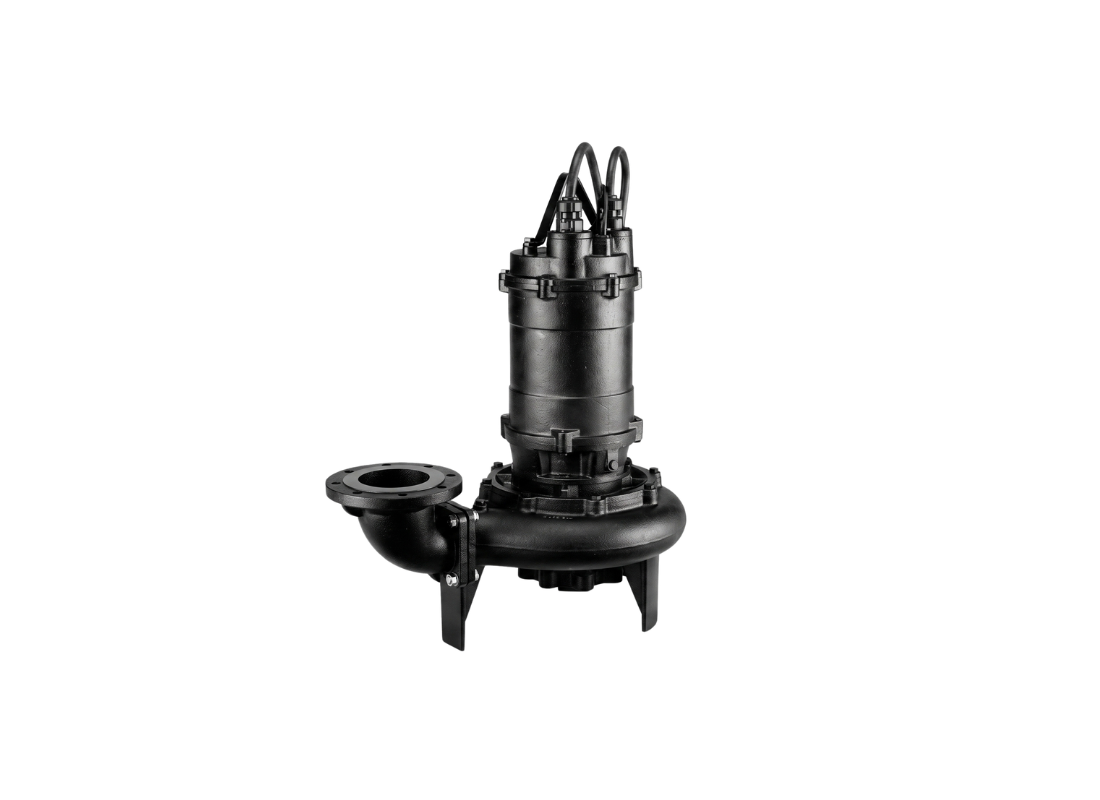

The enclosed single-channel impeller is designed for non-clog operation when handling wastewater containing raw sewage or industrial effluents. This hydraulic system permits the transfer of foreign matter up to 76 mm in diameter. Discharge is provided through a 100 mm vertical port fitted with the included discharge elbow with companion flange.
Suitable applications for this unit include large volume wastewater transfer and municipal drainage tasks. This vertical pump handles liquid temperatures up to 40°C and is IP68 rated for submerged operation up to 8 meters. The system is engineered for standing installation in collection pits where large-bore pipework is required for manual drainage.
Powered by a 3.7 kW motor, this manual three-phase unit reaches flow rates up to 2700 L/Min and a total head of 12.8 m. Operating on a 415v supply, it draws a rated current of 8.4 Amps and includes a 10 m submersible power cable. The air-filled dry submersible 4-pole motor is designed for Star-Delta starting at a synchronous speed of 1500 rpm.
Materials of construction feature a cast iron pump body, motor frame, and impeller paired with an AISI 403 stainless steel shaft. Sealing is managed by a double mechanical seal in an oil chamber featuring Silicon Carbide lower faces and Carbon/Ceramic upper faces. Rotating components are secured with 304 fasteners.
FEATURES
- Enclosed single-channel impeller arrangement facilitates the passage of 76 mm solids.
- Three-phase motor rated for 415v service delivers flow rates up to 2700 L/Min.
- Shaft sealing uses a double mechanical system isolated in an oil chamber for motor protection.
- Utilizes Silicon Carbide lower seal faces for wear resistance in abrasive wastewater.
- Supplied with a 100 mm screwed discharge elbow with companion flange, gaskets, and fasteners.
- Cast iron pump frame and casing provide structural stability in submerged wells.
- Double-row lower bearings support the shaft assembly for stable operation at 1500 rpm.
- Motor incorporates an automatic thermal protector.
