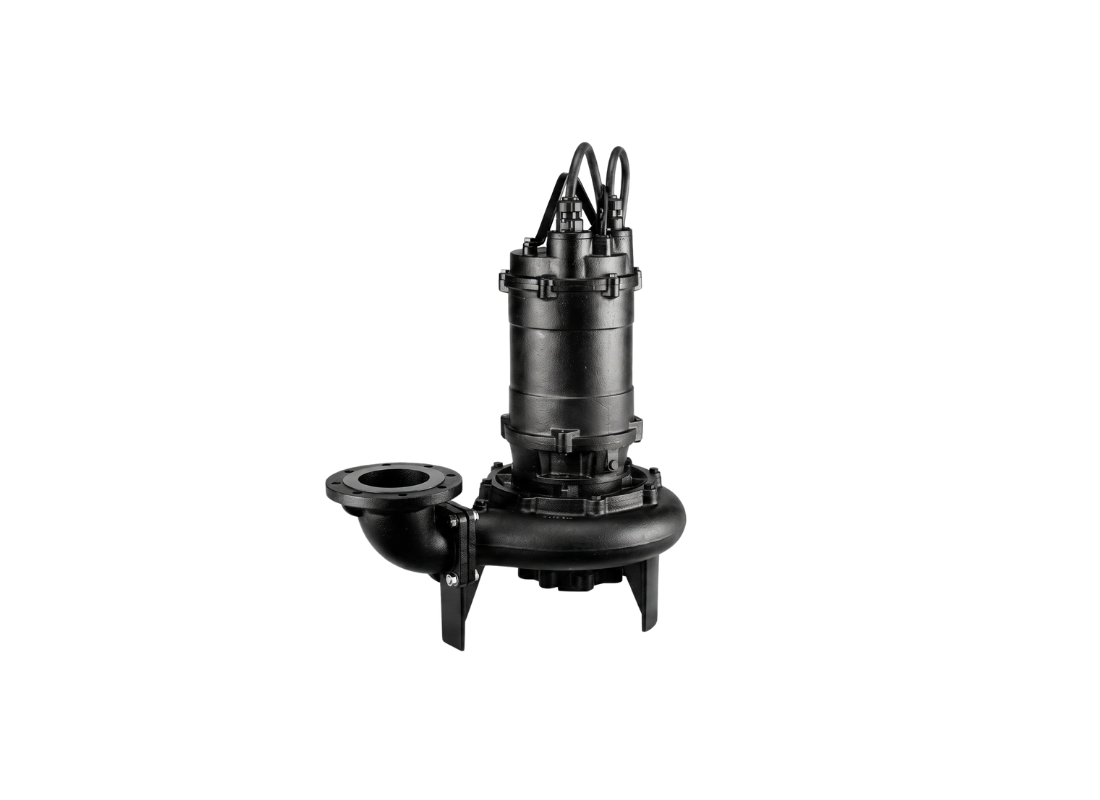

Operating data for this 5.5 kW motor includes flow rates up to 3500 L/Min and a total head of 14 m. Operating on a three-phase 415v supply, the unit draws a rated current of 12.6 Amps and includes 10 m of submersible cable. The air-filled dry submersible 4-pole motor is designed for Star-Delta starting.
The hydraulic system utilizes an enclosed single-channel impeller designed for non-clog operation when handling wastewater containing suspended solids. It permits the passage of foreign matter up to 76 mm in diameter. Waste is moved through a 100 mm vertical delivery port connected to the included discharge elbow with companion flange.
Materials include a cast iron casing, motor frame, and impeller secured with 304 fasteners and an AISI 403 stainless steel shaft. Protection is managed by a double mechanical seal in an intermediate oil chamber featuring Silicon Carbide lower faces. The assembly is IP68 rated for submerged operation and utilizes Class F insulation.
Common applications for this unit include stormwater collection systems and industrial wastewater lifting. It handles liquid temperatures up to 40°C and is engineered for standing vertical installation in collection pits. The pump requires manual control from an external three-phase supply for vertical transfer to discharge lines.
FEATURES
- Single-channel non-clog impeller configuration facilitates the passage of 76 mm solids.
- Submersible motor features a dry air-filled design rated for IP68 submerged service.
- Twin mechanical seals in an oil chamber with SiC lower faces isolate the motor from ingress.
- High-volume 100 mm discharge port enables transfer of wastewater containing large solids.
- Includes a 100 mm screwed discharge elbow with companion flange, gaskets, and fasteners.
- Motor incorporates an automatic thermal protector.
- Double-row lower bearings provide axial support for the rotating assembly during operation.
- Synchronous motor speed of 1500 rpm at 50Hz frequency supports high-volume lifting.
