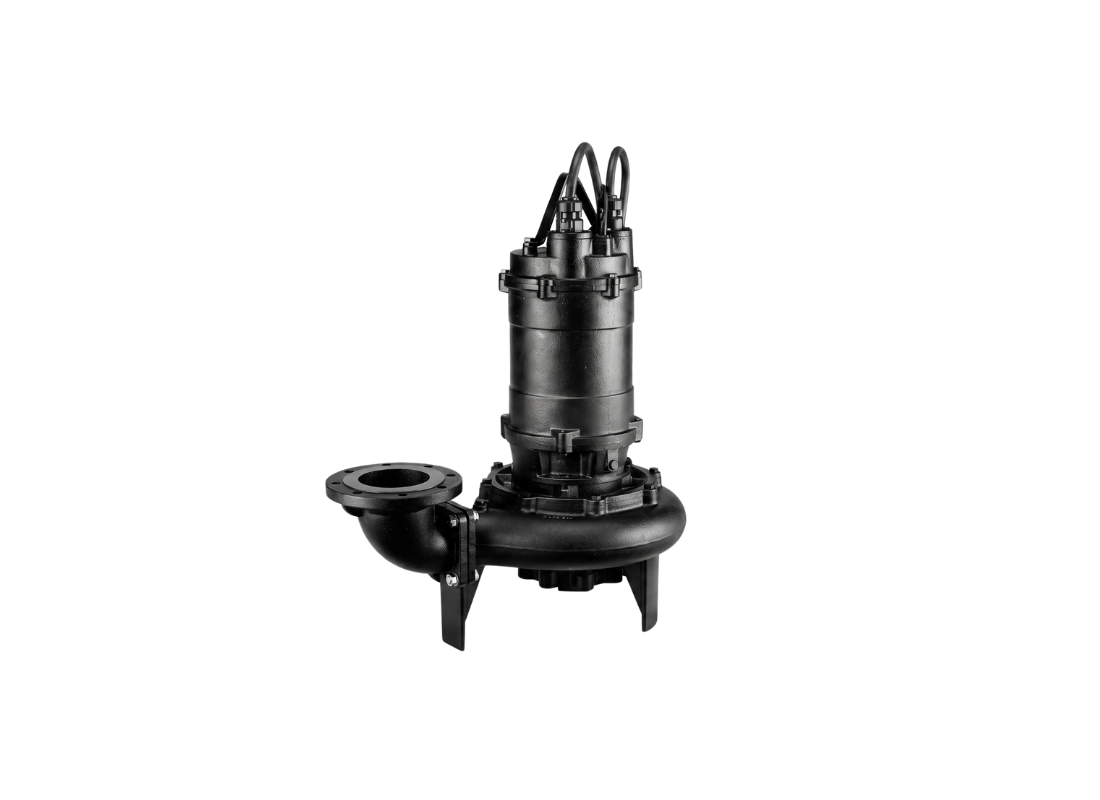

Designed for commercial wastewater pumping and municipal sewage networks, this vertical unit handles liquids at temperatures up to 40°C. It is rated for continuous operation at submergence depths reaching 8 meters. The pump is suited for fixed installations in deep collection wells where large volumes of effluent containing solids must be moved vertically.
The enclosed single-channel impeller is designed for non-clog operation when handling wastewater containing suspended solids. This hydraulic system permits the transfer of foreign matter up to 76 mm in diameter. Discharge is handled through a 100 mm vertical delivery port equipped with a discharge elbow with companion flange.
Hydraulic performance for this 7.5 kW motor includes a maximum flow rate of 4000 L/Min and a total head of 16.8 m. Drawing a rated current of 16.9 Amps on a three-phase 415v supply, the unit is supplied with 10 m of submersible power cable. The air-filled dry submersible 4-pole motor is designed for Star-Delta starting.
Construction features include a cast iron pump body, motor frame, and impeller with AISI 403 stainless steel shafting. The rotating assembly is protected by a double mechanical seal in an oil chamber featuring Silicon Carbide lower faces. Fasteners are manufactured from 304 stainless steel and the assembly is rated for permanent immersion under IP68 standards.
FEATURES
- Enclosed single-channel impeller design facilitates the passage of 76 mm suspended solids.
- Three-phase motor reaches flow rates of 4000 L/Min with 16.8 m maximum head for lifting.
- Double mechanical shaft seal isolated by an oil chamber prevents fluid ingress to the motor.
- Features Silicon Carbide lower seal faces for durability in abrasive sewage environments.
- Includes a 100 mm screwed discharge elbow with companion flange, gaskets, and fasteners.
- Double-row lower bearings provide mechanical support for the rotating shaft assembly.
- Motor incorporates an automatic thermal protector.
- Synchronous motor speed of 1500 rpm and Class F insulation support continuous duty.
