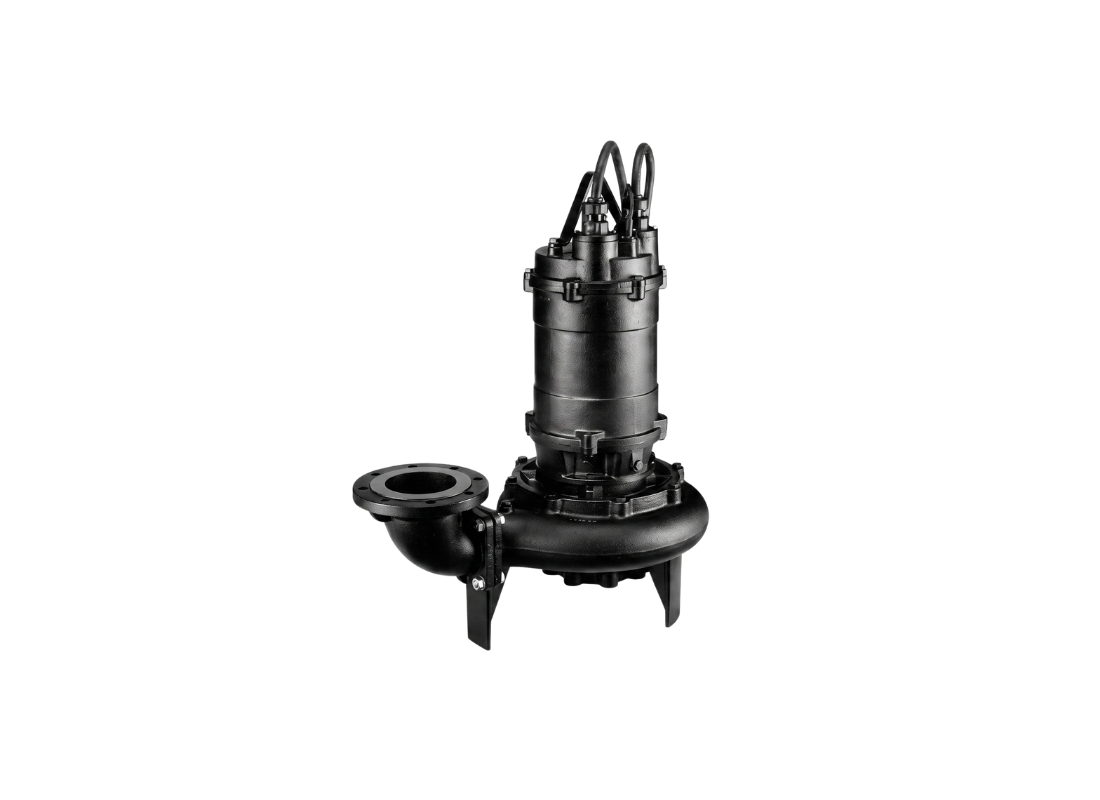

Ebara 100 DMLV 511 Cast Iron Submersible Sewage Pump for Long Fibers Handling with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
The 100 DMLV 511 pumping unit is part of the Model DMLV submersible range. Intended applications include submersible sewage and drainage applications containing large, long-fibred and stringy materials. This unit is suitable for quick discharge connector systems and standard freestanding installations. It is suitable for guide rail auto-coupling and standard freestanding installations.
Materials of construction include a Cast Iron casing, cast iron lower bracket, and cast iron vortex impeller, with SUS403 stainless steel shaft. The pump incorporates a vortex type impeller with a nominal size of 100 mm. The pump is suitable for liquids containing solids up to 100 mm in diameter. The net weight of this pumping unit is 150 kg. The pump is rated for a maximum liquid temperature of 40°C.
A motor rated at 11 kW operates this unit using a three-phase 415v power connection. The motor draws a nominal current of 23.8 Amps. Performance testing shows a maximum head limit of 19 metres and a peak flow capacity of 2800 L/Min at the 100 mm discharge flange.
The motor stator features Class F insulation windings housed inside an IP68 rated enclosure. Maximum submergence is specified up to 8 metres deep. Shaft containment is provided by a dual silicon carbide mechanical seal system in an oil reservoir. The pump is designed for star-delta starting and incorporates miniature thermal protectors in motor windings.
Features
- Electrical connection uses H07RN-F cable measuring 10 metres.
- The 4-pole motor operates at a nominal speed of 1450 RPM.
- Shaft configuration features a short overhung design.
- Suitable for wastewater installations containing stringy solids.
- Fitted with double row lower bearings for mechanical support.
- Designed for a maximum of 10 starts per hour.
SPECIFICATIONS
| Max Flow | 2800 L/Min |
| Max Head | 19 m |
| Power | 11 kW / 415v |
| Rated Current | 23.8 Amps |
| Suitable For | Sewage Transfer |
| Body Material | FC200 Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 100 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which wastewater conditions suit this vortex-impeller pump?
Long-fibred and stringy wastewater can be handled by 100_DMLV_511, whose 100 mm vortex impeller passes solids up to 100 mm.
What motor output and current rating are required?
Rated for 23.8 Amps on three-phase 415 V, the 11 kW motor in 100 DMLV 511 runs at 1450 RPM using four-pole operation.
What maximum flow supports high-volume sewage transfer?
The 100 mm discharge on 100-DMLV-511 supports a maximum flow of 2800 L/Min for sewage and industrial drainage from collection wells.
How is the motor protected during submerged operation?
Class F winding insulation and an IP68 enclosure protect 100/DMLV/511 during submergence up to 8 m in wastewater installations and drainage pits.
What maximum head is available for discharge lifting?
For vertical discharge, 100DMLV511 provides a maximum head of 19 m through its 100 mm delivery port during wastewater lifting.
