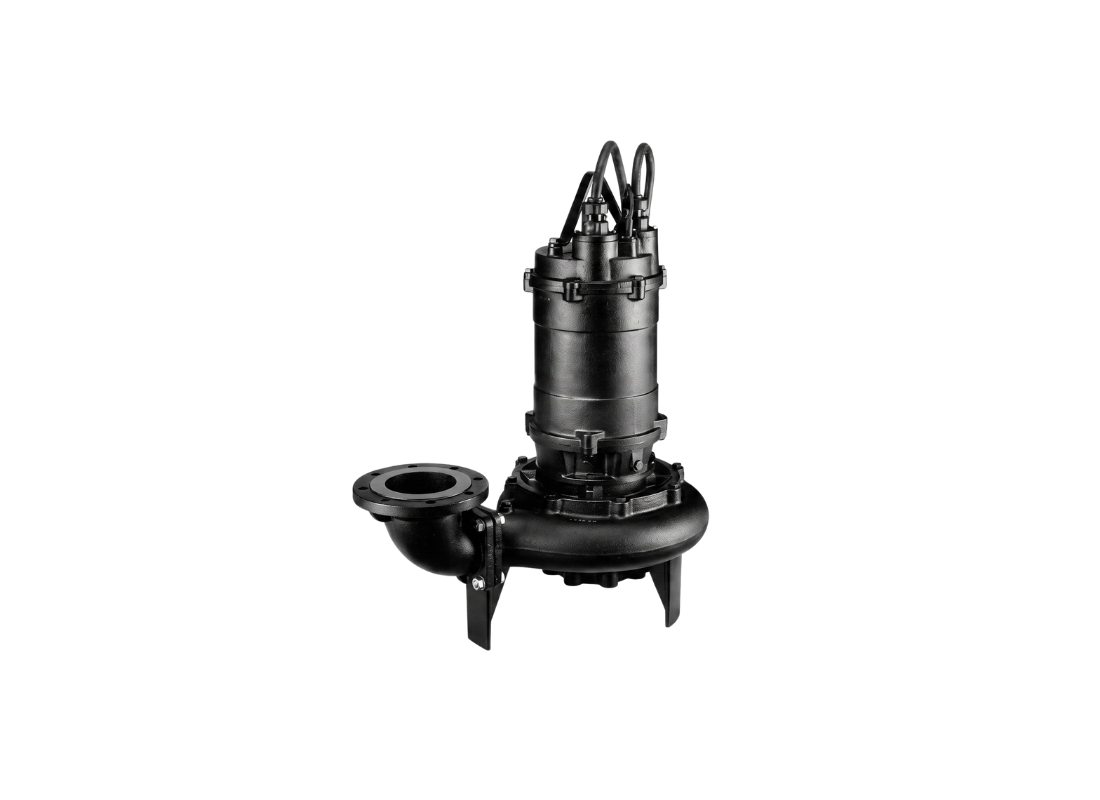

Ebara 100 DMLV 522 Cast Iron Submersible Sewage Pump for Commercial Building Sumps with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
The Model DMLV contains the 100 DMLV 522 submersible model. It is designed for submersible sewage and drainage applications containing large, long-fibred and stringy materials. The physical housing is configured for quick discharge connector systems and standard freestanding installations. It is suitable for guide rail auto-coupling and standard freestanding installations.
Casing construction is composed of Cast Iron casing, cast iron lower bracket, and FCD400 ductile cast iron vortex impeller, with SUS403 stainless steel shaft. It incorporates a vortex impeller measuring 100 mm. The assembly is designed for liquids containing solids up to 100 mm in diameter. The net weight of this pumping unit is 235 kg. Total allowable liquid temperature is rated up to 40°C.
Power input is rated at 22 kW from a three-phase 415v electrical supply. The nameplate current is specified at 42 Amps. Operational metrics reach a peak head of 30 metres and a maximum discharge flow of 2800 L/Min via the 100 mm exit port.
Windings are rated to Class F insulation limits with an IP68 protective enclosure rating. This pump is rated for submersion depths down to 8 metres. A double silicon carbide mechanical seal is positioned in the oil bath. The system designed for star-delta starting and incorporates miniature thermal protectors in motor windings.
Features
- Electrical connection uses H07RN-F cable measuring 10 metres.
- The 4-pole motor operates at a nominal speed of 1450 RPM.
- Shaft configuration features a short overhung design.
- Suitable for wastewater installations containing stringy solids.
- Fitted with double row lower bearings for mechanical support.
- Designed for a maximum of 10 starts per hour.
SPECIFICATIONS
| Max Flow | 2800 L/Min |
| Max Head | 30 m |
| Power | 22 kW / 415v |
| Rated Current | 42 Amps |
| Suitable For | Sewage Transfer |
| Body Material | FC200 Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 100 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum head is available for vertical discharge?
Wastewater discharge from collection pits can use the maximum head of 30 m available from 100_DMLV_522 through vertical pipework to sewer connections.
Which motor supply and current rating apply to this pump?
Three-phase 415 V supplies the 22 kW motor in 100 DMLV 522, which draws 42 Amps and operates at 1450 RPM.
What maximum flow is available for sewage transfer?
For high-volume sewage transfer, 100-DMLV-522 reaches a maximum flow of 2800 L/Min through its 100 mm discharge port from collection pits.
Which impeller material and solids passage are provided?
Its FCD400 ductile cast iron vortex impeller in 100/DMLV/522 is designed for wastewater containing solids up to 100 mm in diameter.
How deep can the pump operate beneath liquid?
The 100DMLV522 carries an IP68 enclosure rating and supports submerged installation to 8 m in liquids reaching 40°C during sewage pumping.
