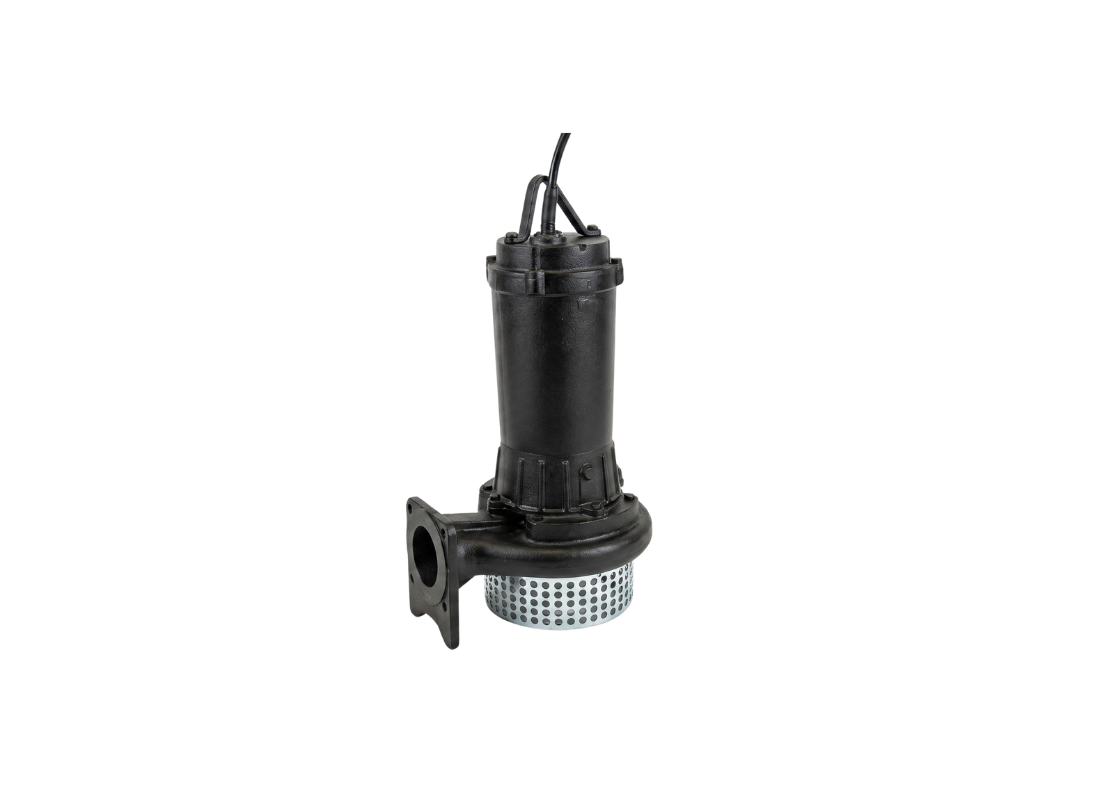

Ebara 100 DS 55.5 Cast Iron Submersible Sump Pump for Stormwater Removal with Semi-open Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Designated for municipal and industrial wastewater, the 100 DS 55.5 is an addition to the Model DS series. It is suitable for sump drainage and stormwater removal for cellar draining, utility pits, and rainwater collection systems. Installation methods include quick discharge connector systems and standard freestanding installations. It is suitable for guide rail auto-coupling and standard freestanding installations.
Features of construction include a casing made from cast iron casing, cast iron impeller, and 304 stainless steel motor frame, with 403 stainless steel shaft. Inside, the semi-open impeller has a measurement of 100 mm. The unit is designed for clear wastewater containing small non-abrasive suspended solids. The allowable liquid temperature range goes up to 40°C.
Operating at 2920 RPM, the 5.5 kW motor requires a three-phase 415v power feed with a current of 9.8 Amps. The hydraulic performance curve peaks at 29 metres of head and 1350 L/Min of flow. The discharge connection is sized at 100 mm.
Class F motor insulation and an IP68 rating provide environmental protection for submerged operation. The design allows submersion depths up to 8 metres. Shaft sealing is performed by a double mechanical seal with silicon carbide faces. This model uses direct on line starting with high-speed 2-pole motor rotation.
Features
- Power supply cable length is 10 metres of rubber insulated conductor.
- The operating speed is 2920 RPM for high-head water transfer.
- Construction includes a suction strainer to screen larger particles.
- Wetted assembly fasteners are composed of 304 stainless steel.
- Equipped with turbine oil VG32 lubrication in the seal chamber.
- Rated for manual operation in sump drainage setups.
SPECIFICATIONS
| Max Flow | 1350 L/Min |
| Max Head | 29 m |
| Power | 5.5 kW / 415v |
| Rated Current | 9.8 Amps |
| Suitable For | Sump Drainage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 100 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor supply and starting method are required?
Direct-on-line starting is used with the 5.5 kW motor in 100_DS_55_5, rated for three-phase 415 V and drawing 9.8 Amps at 2920 RPM.
What maximum flow supports stormwater collection duties?
Stormwater removal through 100 DS 55 5 reaches a maximum flow of 1350 L/Min via its 100 mm discharge connection.
Which wastewater conditions suit the semi-open impeller?
Small non-abrasive suspended solids in clear wastewater can pass through the 100 mm semi-open impeller fitted to 100-DS-55-5 during sump drainage.
What maximum head is available for cellar drainage?
For cellar and utility-pit drainage, 100/DS/55/5 provides a maximum head of 29 m through its 100 mm outlet for stormwater transfer.
Which enclosure and insulation ratings are provided?
Class F motor insulation and IP68 enclosure protection are included on 100DS555 for submerged operation down to 8 m in stormwater systems.
