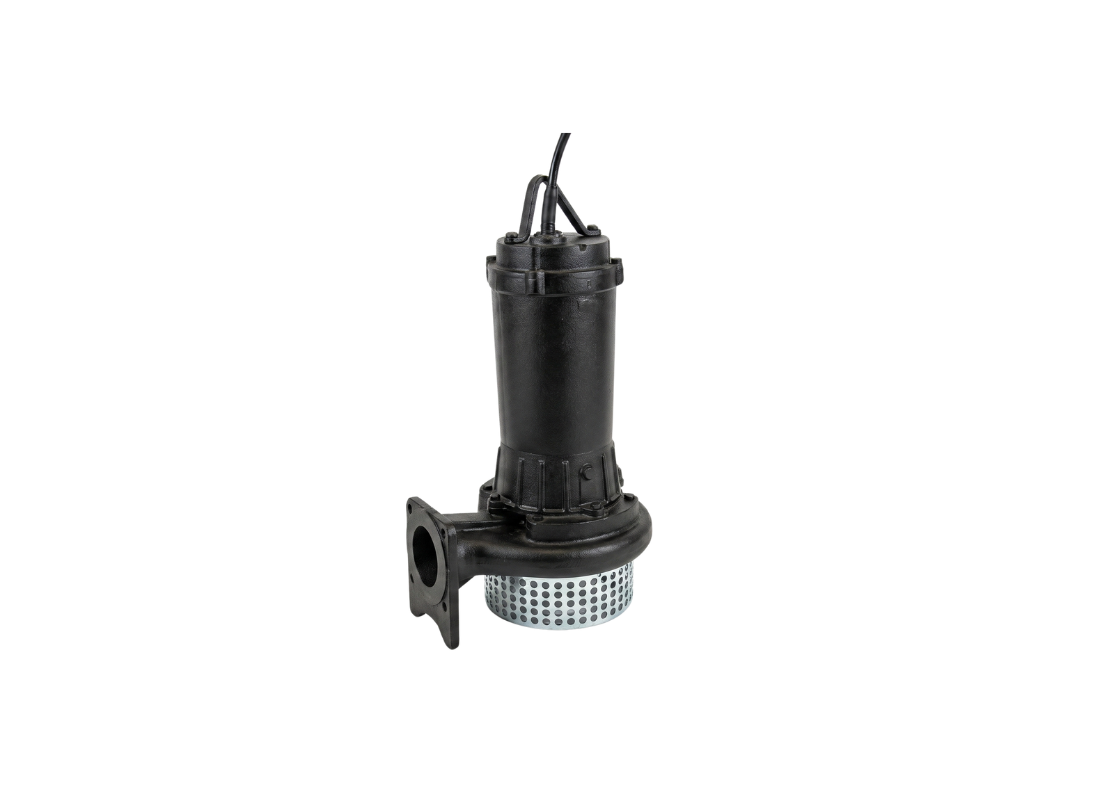

The Model DS contains the 100 DS 57.5 submersible model. It is designed for sump drainage and stormwater removal for cellar draining, utility pits, and rainwater collection systems. The physical housing is configured for quick discharge connector systems and standard freestanding installations. It is suitable for guide rail auto-coupling and standard freestanding installations.
Casing construction is composed of cast iron casing, cast iron impeller, and 304 stainless steel motor frame, with 403 stainless steel shaft. It incorporates a semi-open impeller measuring 100 mm. The assembly is designed for clear wastewater containing small non-abrasive suspended solids. Total allowable liquid temperature is rated up to 40°C.
Power input is rated at 7.5 kW from a three-phase 415v electrical supply. The nameplate current is specified at 13.2 Amps. Operational metrics reach a peak head of 36 metres and a maximum discharge flow of 1500 L/Min via the 100 mm exit port.
Windings are rated to Class F insulation limits with an IP68 protective enclosure rating. This pump is rated for submersion depths down to 8 metres. A double silicon carbide mechanical seal is positioned in the oil bath. The system uses direct on line starting with high-speed 2-pole motor rotation.
Features
- Power supply cable length is 10 metres of rubber insulated conductor.
- The operating speed is 2910 RPM for high-head water transfer.
- Construction includes a suction strainer to screen larger particles.
- Wetted assembly fasteners are composed of 304 stainless steel.
- Equipped with turbine oil VG32 lubrication in the seal chamber.
- Rated for manual operation in sump drainage setups.
