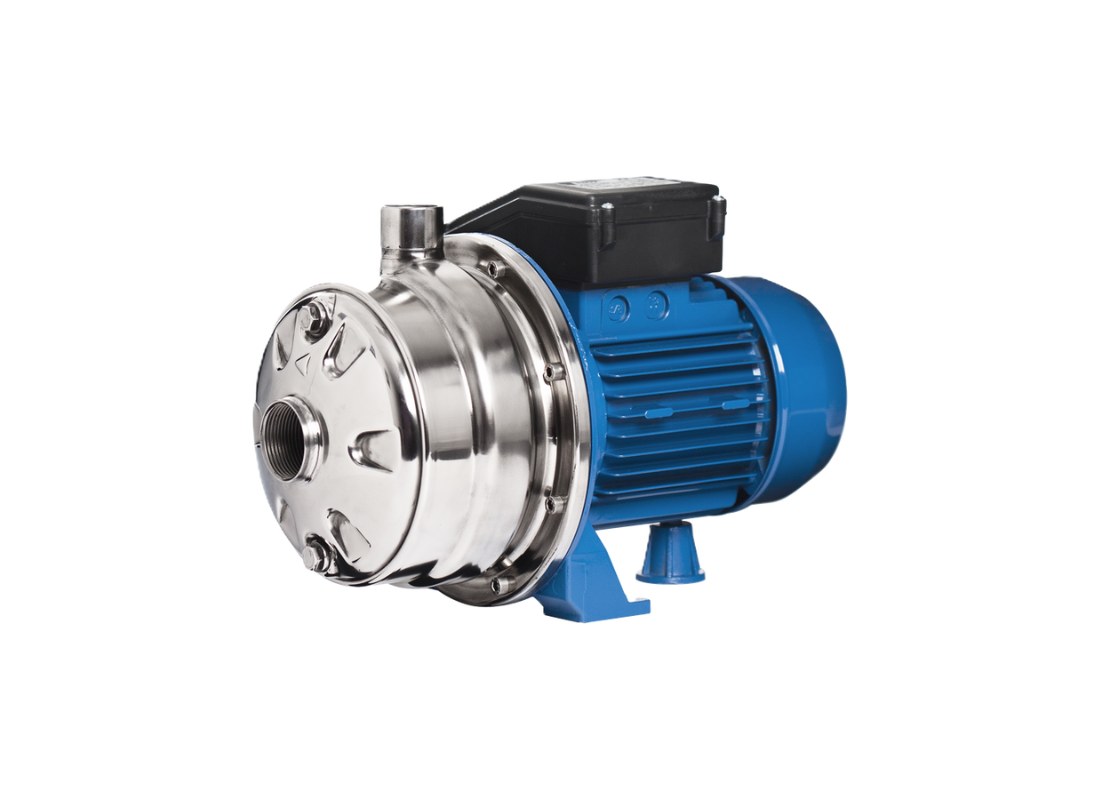

Ebara 2CDX 120/20 Stainless Steel High Pressure Centrifugal Pump for Booster Systems with Twin Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Where stable pressure delivery and efficient clean water transfer are required, the Ebara 2CDX 120/20 provides reliable operation for pressure boosting systems, commercial water circulation, and industrial transfer duties. Its twin impeller hydraulic configuration supports smooth continuous performance across installations requiring controlled water movement and balanced pressure delivery.
With flow capacity reaching 150 L/Min and head performance up to 51.5 metres, the pump delivers dependable pressure across varying operating conditions. The hydraulic arrangement supports controlled circulation through elevated pipelines, booster systems, and multi-outlet installations requiring steady water transfer.
Water transfer is handled through a closed twin impeller configuration engineered for stable hydraulic efficiency and controlled pressure generation. The centrifugal design assists with smooth circulation while helping minimise turbulence during extended clean water operation.
The construction incorporates AISI 304 stainless steel casing, impellers, diffuser, shaft, and casing cover for improved corrosion resistance and long-term durability. A Ceramic/Carbon/NBR mechanical seal supports dependable sealing performance, while the TEFC motor with IP55 protection and Class F insulation improves operational reliability. Its close-coupled back pull-out construction also simplifies servicing and maintenance access.
FEATURES- Twin impeller hydraulic arrangement supports stable high-pressure water transfer
- Back pull-out construction simplifies impeller and seal maintenance access
- AISI 304 stainless steel wetted components improve corrosion resistance
- Closed centrifugal impeller design supports controlled clean water circulation
- Ceramic/Carbon/NBR mechanical seal arrangement for standard-duty operation
- Top centreline discharge assists with self-venting hydraulic performance
- TEFC motor construction with IP55 protection and Class F insulation
- Close-coupled pump configuration reduces installation space requirements
SPECIFICATIONS
| Max Flow | 150 L/Min |
| Max Head | 51 m |
| Power | 1.5 kW / 415v |
| Rated Current | 4.2 Amps |
| Suitable For | Pressure Boosting |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum head is available for pressure boosting?
For elevated booster duties, 2CDX_120_20 offers a maximum head of 51.5 m, supporting higher-pressure delivery through connected clean-water distribution lines.
How does back pull-out construction assist servicing?
During maintenance, the back pull-out construction on 2CDX 120 20 gives access to internal components without disconnecting the installed pipework or discharge connections.
Which industrial applications suit this twin-impeller configuration?
Commercial water circulation, pressure boosting and industrial clean-water transfer are suitable duties for 2CDX-120-20 across systems requiring controlled hydraulic delivery.
What is the maximum flow capacity for circulation?
Industrial circulation lines can receive a maximum flow of 150 L/Min from 2CDX/120/20, supporting steady clean-water movement through connected distribution pipework.
Which materials form the wetted hydraulic assembly?
Across the wetted assembly, AISI 304 stainless steel forms the casing, impellers, diffuser, shaft and cover, and 2CDX12020 has a Ceramic/Carbon/NBR seal.
