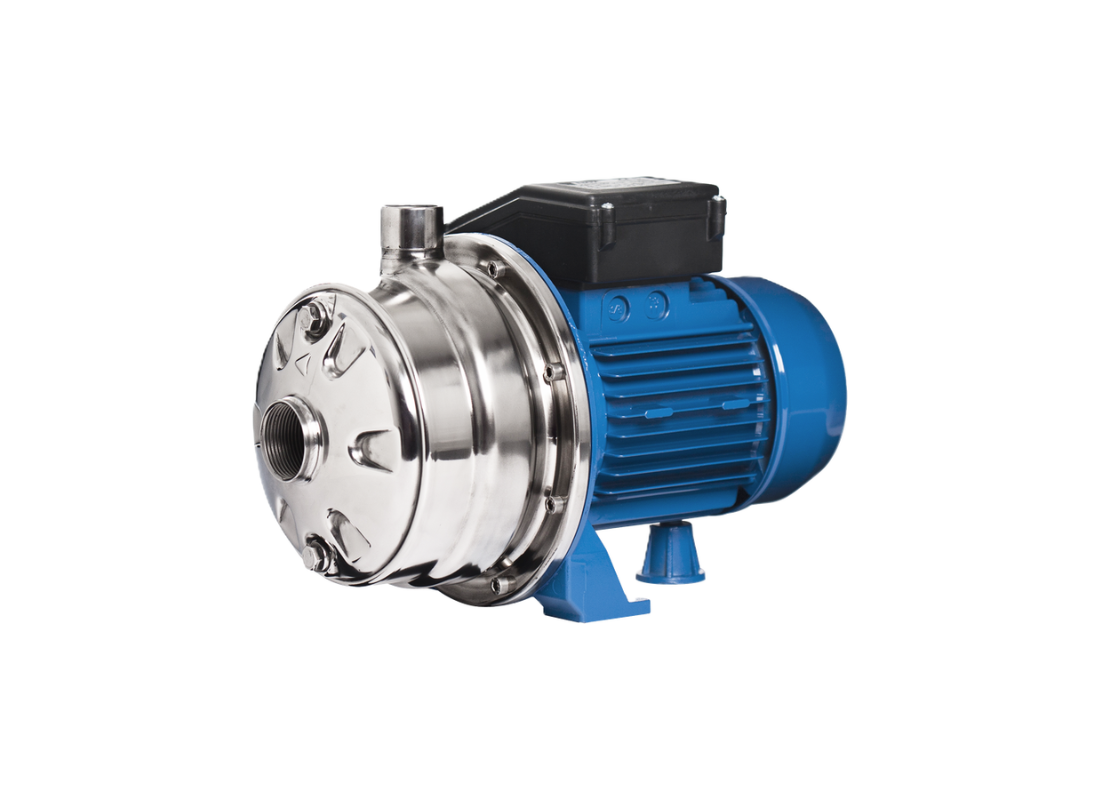

Ebara 2CDX 120/30 Stainless Steel High Head Centrifugal Pump for Water Distribution with Twin Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Where stronger pressure performance and reliable clean water movement are required, the Ebara 2CDX 120/30 provides efficient operation for water distribution systems, commercial circulation, and industrial transfer applications. Its twin impeller hydraulic configuration supports smooth continuous-duty performance across installations requiring stable water delivery and balanced hydraulic operation.
With flow capacity reaching 150 L/Min and head performance up to 59 metres, the pump delivers dependable circulation across varying operating conditions. The hydraulic arrangement supports controlled water movement through elevated pipelines, distribution networks, and multi-outlet installations requiring consistent pressure delivery.
Water transfer is handled through a closed twin impeller configuration engineered for stable hydraulic efficiency and controlled pressure generation. The centrifugal design assists with smooth circulation while helping minimise turbulence during extended clean water operation.
The construction incorporates AISI 304 stainless steel casing, impellers, diffuser, shaft, and casing cover for improved corrosion resistance and long-term durability. A Ceramic/Carbon/NBR mechanical seal supports dependable sealing performance, while the TEFC motor with IP55 protection and Class F insulation improves operational reliability. Its close-coupled back pull-out construction also simplifies servicing and maintenance access.
FEATURES- Twin impeller hydraulic arrangement supports stable high-head water transfer
- Back pull-out construction simplifies impeller and seal maintenance access
- AISI 304 stainless steel wetted components improve corrosion resistance
- Closed centrifugal impeller design supports controlled clean water circulation
- Ceramic/Carbon/NBR mechanical seal arrangement for standard-duty operation
- Top centreline discharge assists with self-venting hydraulic performance
- TEFC motor construction with IP55 protection and Class F insulation
- Close-coupled pump configuration reduces installation space requirements
SPECIFICATIONS
| Max Flow | 150 L/Min |
| Max Head | 59 m |
| Power | 2.2 kW / 415v |
| Rated Current | 5.1 Amps |
| Suitable For | Water Distribution |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What head capacity is available for elevated distribution?
Elevated distribution lines can be supplied against a maximum head of 59 m from 2CDX_120_30, supporting pressure delivery across commercial pipework systems.
How does the twin-impeller design manage pressure?
Pressure development is progressive through the closed twin-impeller arrangement in 2CDX 120 30, which supports controlled clean-water movement through circulation and transfer lines.
Which industrial applications suit this twin-impeller configuration?
Industrial transfer, commercial circulation and water-distribution systems suit 2CDX-120-30 where clean water must move steadily through connected outlets and pipelines.
What maximum flow can serve multiple outlets?
For multi-outlet transfer duties, the maximum flow reaches 150 L/Min through 2CDX/120/30, providing clean-water volume for connected circulation systems during regular operation.
How can internal parts be reached during servicing?
The back pull-out design on 2CDX12030 allows servicing access to internal components without removing the connected pipework from its installed position.
