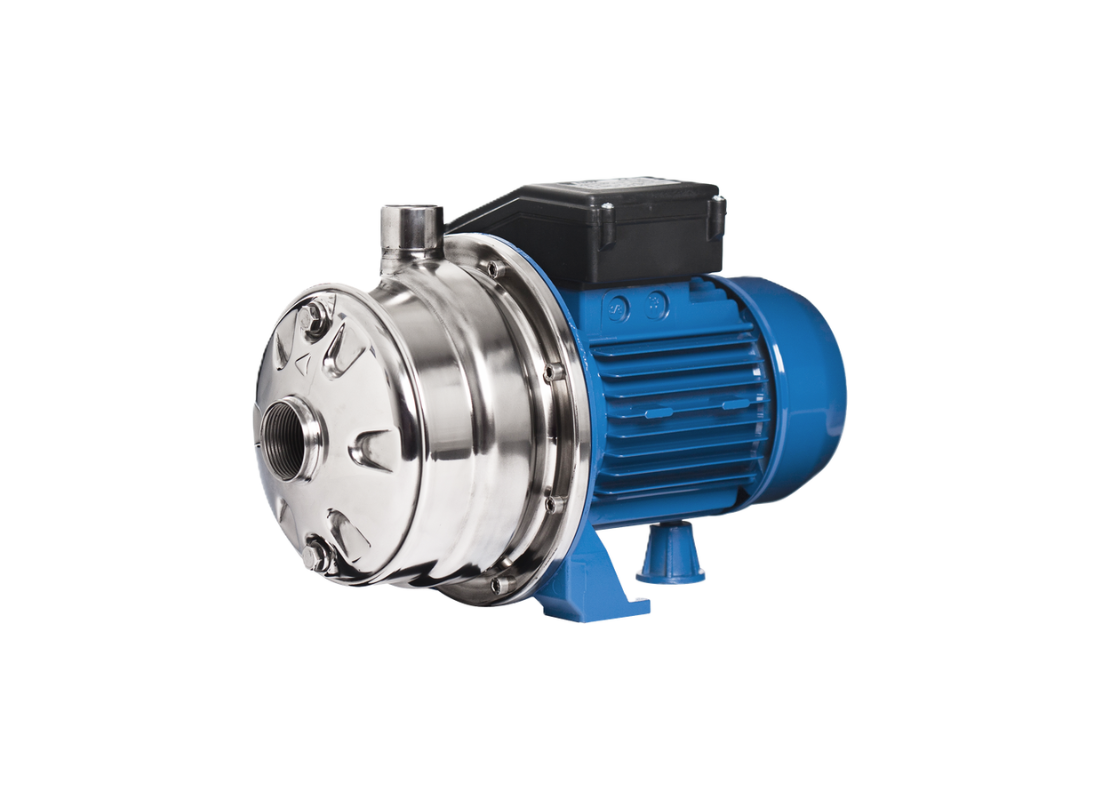

Ebara 2CDX 70/15 Stainless Steel High Pressure Centrifugal Pump for Water Transfer with Twin Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Where higher pressure performance and reliable clean water movement are required, the Ebara 2CDX 70/15 provides efficient operation for water transfer systems, pressure support installations, and light industrial circulation duties. Its twin impeller hydraulic configuration supports stable performance across continuous-duty applications requiring controlled water flow.
With flow capacity reaching 80 L/Min and head performance up to 52.5 metres, the pump delivers balanced pressure across varying operating conditions. The hydraulic arrangement supports dependable circulation through elevated pipelines, transfer systems, and installations requiring stable water movement.
Water transfer is handled through a closed twin impeller configuration engineered for controlled hydraulic efficiency and stable pressure generation. The centrifugal design assists with smooth circulation while helping minimise turbulence during extended clean water operation.
The construction incorporates AISI 304 stainless steel casing, impellers, diffuser, shaft, and casing cover for improved corrosion resistance and long-term durability. A Ceramic/Carbon/NBR mechanical seal supports dependable sealing performance, while the TEFC motor with IP55 protection and Class F insulation improves operational reliability. Its close-coupled back pull-out construction also simplifies servicing and maintenance access.
FEATURES- Twin impeller hydraulic arrangement supports stable high-pressure water transfer
- Back pull-out construction simplifies impeller and seal maintenance access
- AISI 304 stainless steel wetted components improve corrosion resistance
- Closed centrifugal impeller design supports controlled clean water circulation
- Ceramic/Carbon/NBR mechanical seal arrangement for standard-duty operation
- Top centreline discharge assists with self-venting hydraulic performance
- TEFC motor construction with IP55 protection and Class F insulation
- Close-coupled pump configuration reduces installation space requirements
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 52.5 m |
| Power | 1.1 kW / 415v |
| Rated Current | 3.2 Amps |
| Suitable For | Water Transfer |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the twin-impeller arrangement generate pressure?
The closed twin impellers develop pressure progressively, helping 2CDX_70_15 maintain controlled hydraulic delivery during extended clean-water operation through the staged pump assembly.
What maximum head is available for elevated transfer?
At its upper head rating, 2CDX 70 15 provides a maximum head of 52.5 m for elevated pipelines and transfer systems requiring higher discharge pressure.
Which pressure-support applications are suited to this pump?
Water transfer systems, pressure-support installations and light-industrial circulation duties suit 2CDX-70-15 where stable clean-water flow is needed for routine supply operation.
How much clean water can it move?
Clean-water delivery can reach 80 L/Min through 2CDX/70/15, serving compact circulation and supply installations for transfer and pressure-support duties within its stated capacity.
What construction features assist maintenance and durability?
Service access is supported by back pull-out construction, while 2CDX7015 has AISI 304 stainless steel wetted components and a Ceramic/Carbon/NBR mechanical seal.
