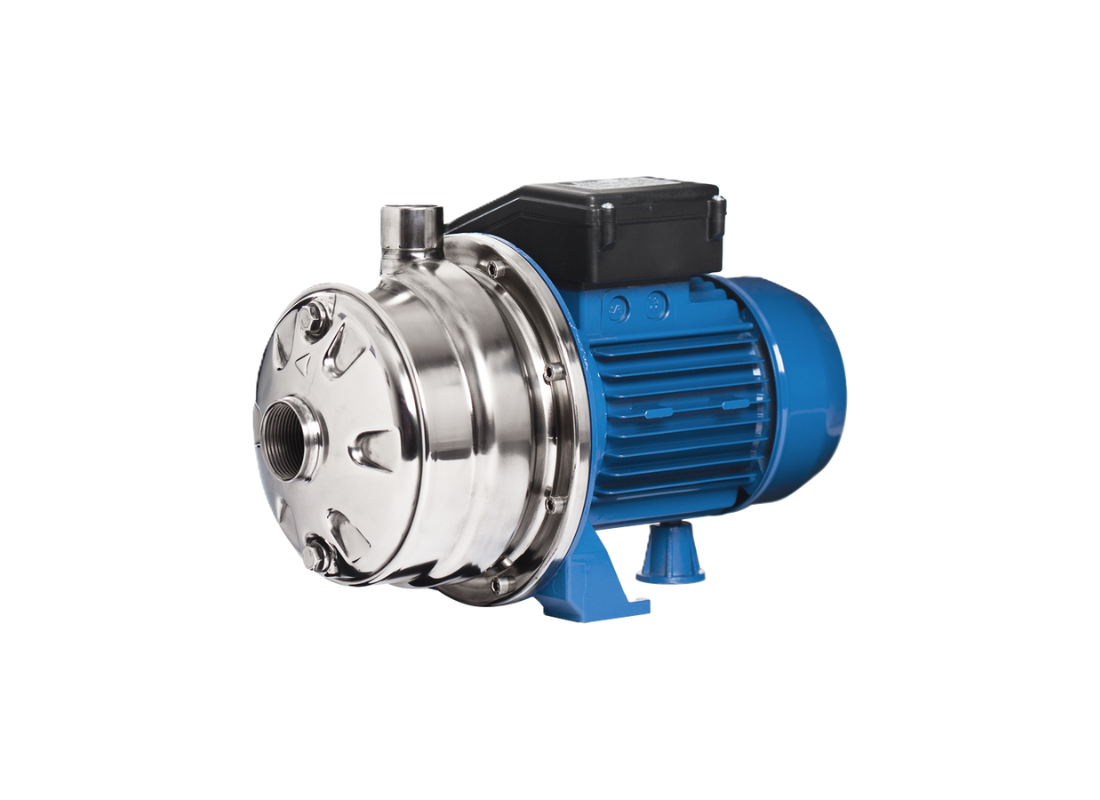

Ebara 2CDXM 70/10 Stainless Steel Hard Faced Centrifugal Pump for Process Applications with Twin Impeller

Warranty & Returns

All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.

• Products must be installed correctly and in accordance with the manufacturer’s instructions.
• Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
• Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
• The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
• Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
• Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
• Customers are responsible for return freight costs for change-of-mind returns.
• Restocking fees may apply to special-order, bulky or non-stocked products.
• Used, installed or specially ordered products may not be eligible for change-of-mind returns.
• If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.

Your rights under Australian Consumer Law are not affected.

Which seal arrangement is intended for wear resistance?

For demanding service the hard-faced 2CDXM_70_10_HF uses Silicon Carbide SiC/SiC/Viton seal faces to improve resistance to wear in operation. under abrasive operating conditions

What maximum flow is available for clean liquids?

The 2CDXM 70 10 HF delivers up to approximately 80 L/Min for clean-liquid handling where moderate flow and elevated pressure are required.

Which process duties suit this hard-faced version?

Process systems requiring consistent pressure can use the 2CDXM-70-10-HF for clean-liquid transfer under demanding duty conditions. under continuous industrial operating conditions

What maximum head is available at discharge?

A maximum head of approximately 38.5 m is available from the 2CDXM/70/10/HF for installations needing controlled pressure at moderate flow.

What construction supports servicing and corrosion resistance?

The 2CDXM7010HF has AISI 304 wetted components and a close-coupled layout while back pull-out construction allows internal access without pipe removal.
