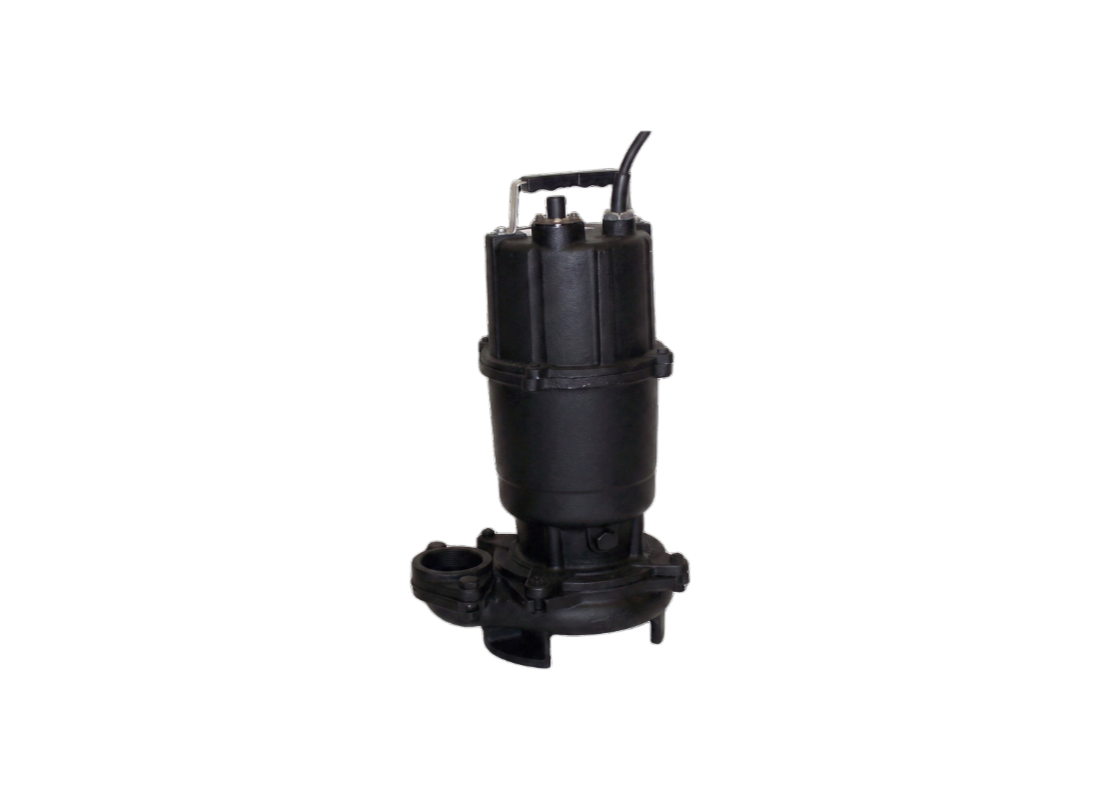

Septic effluent management and wastewater transfer in textile and woollen mills are documented applications for this manual unit. It is designed for vertical standing installation in collection pits and handles liquids at temperatures up to 40°C. The motor allows for a maximum submergence depth of 4 meters during continuous service.
Construction features a cast iron casing, motor frame, and impeller for structural stability in submerged service. The assembly utilizes an AISI 403 stainless steel shaft and 304 stainless steel fasteners. Motor safety is maintained by a double mechanical seal housed in an oil chamber with Silicon Carbide lower faces and Carbon/Ceramic upper faces.
Operating data for this 0.75 kW unit includes a maximum flow of 250 L/Min and a maximum total head of 13.3 m. This single-phase 240v configuration draws 3.3 Amps and is supplied with 6 m of submersible cable. The 2-pole dry induction motor includes in-built thermal protection to safeguard the winding during operation.
The semi-vortex impeller is designed for non-clog operation when handling wastewater containing soft or fibrous solids. It facilitates the passage of foreign matter up to 32 mm in diameter and fibers reaching 250 mm in length. Discharge is managed through a 50 mm vertical port fitted with a screwed companion flange kit.
FEATURES
- Semi-vortex impeller configuration enables the handling of 32 mm solids and fibrous materials.
- Air-filled 2-pole dry induction motor designed for stable operation at 3000 rpm synchronous speeds.
- Double mechanical shaft seal isolated by an oil chamber filled with turbine oil prevents fluid ingress.
- Mechanical seal features Silicon Carbide lower faces for durability in abrasive dairy washdown waste.
- Class F insulation and IP68 protection rating support safe operation in permanent submerged duty.
- Supplied complete with a 50 mm discharge elbow kit, gaskets, and companion flange fasteners.
- Motor winding includes integrated overload protection to prevent damage during service cycles.
- AISI 403 stainless steel shafting and 304 stainless fasteners provide resistance to corrosion.
