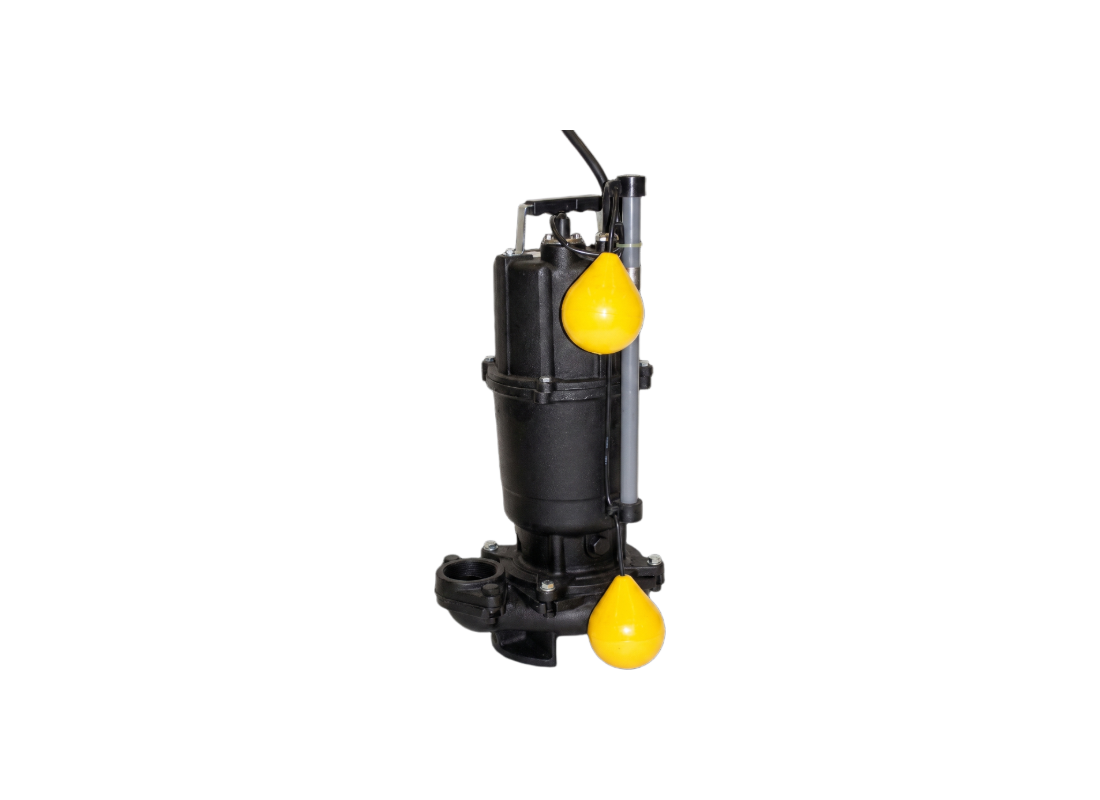

Automatic lifting of food processing wastewater and industrial washdown effluents are primary applications for this vertical unit. It is rated for liquid temperatures reaching 40°C and maximum submergence depths of 4 meters. This automatic configuration utilizes an integrated float switch to manage water level start and stop cycles without manual intervention.
Operating data for this 0.75 kW motor includes a maximum flow rate of 250 L/Min and a maximum total head of 13.3 m. Drawing a rated current of 1.9 Amps on a three-phase 415v supply, the unit is supplied with 6 m of submersible cable. The air-filled 2-pole dry motor includes in-built thermal protection to safeguard the winding during automated operation.
The semi-vortex impeller is designed for non-clog operation when handling wastewater containing soft or fibrous solids. It facilitates the passage of foreign matter up to 32 mm in diameter and fibers between 150 mm and 250 mm in length. Fluid is discharged through a 50 mm vertical port fitted with a companion flange discharge elbow kit.
Construction features include a cast iron pump body, motor frame, and impeller with AISI 403 stainless steel shafting and 304 fasteners. Motor protection is managed by a double mechanical seal in an oil chamber featuring Silicon Carbide lower faces. The assembly is rated for permanent immersion in drainage wells under IP68 protection standards.
FEATURES
- Integrated float switch system provides automated water level management for collection pits.
- Semi-vortex impeller design ensures non-clogging performance with suspended solids up to 32 mm.
- Double mechanical seal in an oil chamber with SiC lower faces isolates the motor from ingress.
- Three-phase motor configuration draws 1.9 Amps for efficient automated wastewater lifting.
- Supplied with a 50 mm screwed companion flange discharge elbow kit and necessary fasteners.
- Cast iron casing and motor frame construction provides structural stability in industrial environments.
- In-built overload protection and Class F insulation safeguard the winding during service cycles.
- IP68 protection rating permits continuous immersion at depths up to the 4 meter rating.
