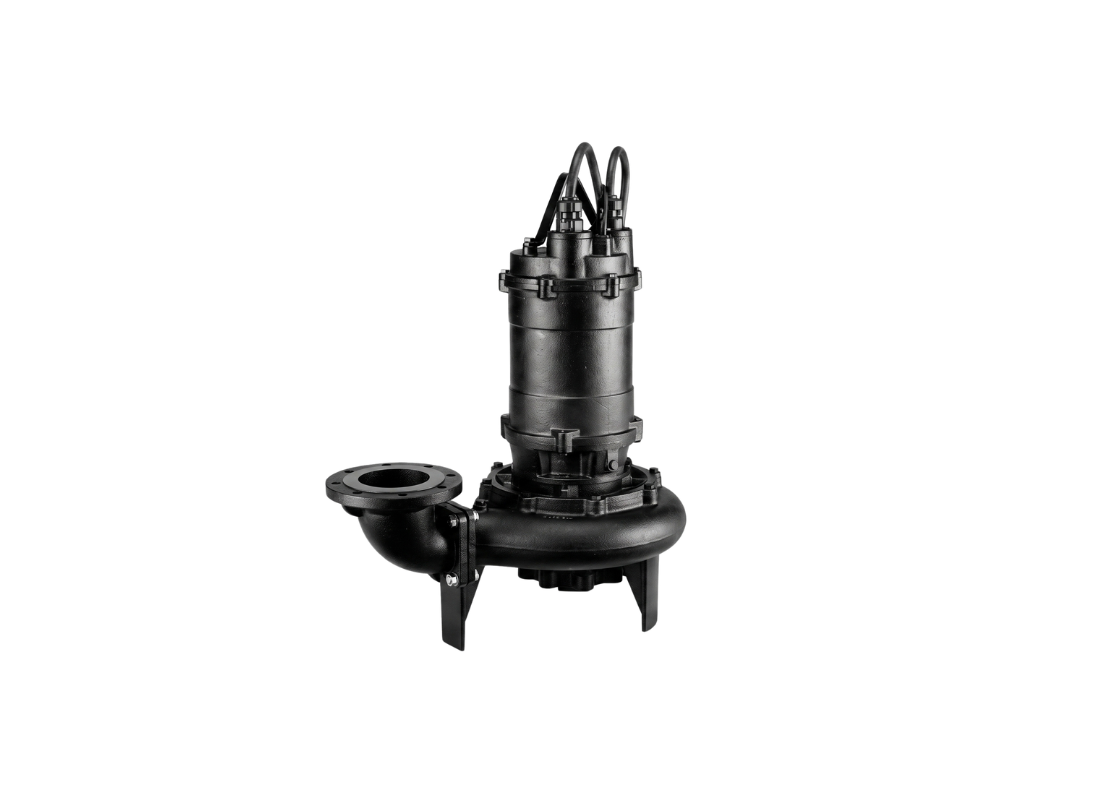

Operating on a three-phase 415v supply, this 11 kW manual unit delivers a maximum flow rate of 4400 L/Min and reaches a maximum head of 23.6 m. It draws a rated current of 23.8 Amps and includes a 10 m submersible power cable. The air-filled dry submersible 4-pole motor is designed for Star-Delta starting.
The hydraulic system utilizes an enclosed single-channel impeller designed for non-clog operation when handling wastewater containing suspended solids. It permits the passage of foreign matter up to 76 mm in diameter. Waste is moved through an 80 mm vertical delivery port fitted with the included discharge elbow with companion flange.
Suitable applications for this unit include industrial sewage transfer and commercial wastewater lifting. The pump handles liquid temperatures reaching 40°C and is IP68 rated for submerged operation up to 8 meters. It is engineered for fixed standing installation in deep collection pits where manual start control is required.
Construction features include a cast iron pump body, motor frame, and impeller paired with an AISI 403 stainless steel shaft. Sealing is managed by a double mechanical seal isolated in an oil chamber using Silicon Carbide lower faces and Carbon/Ceramic upper faces. Rotating components are secured with 304 fasteners and supported by double-row lower bearings.
FEATURES
- Enclosed single-channel non-clog impeller allows for transfer of 76 mm suspended solids.
- 11 kW motor reaches flow rates up to 4400 L/Min with 23.6 m total head for lifting.
- Double mechanical shaft seal isolated by an oil chamber prevents fluid ingress to the motor.
- Features Silicon Carbide lower seal faces for durability in abrasive sewage environments.
- Includes an 80 mm screwed discharge elbow with companion flange, gaskets, and bolts.
- Cast iron pump casing and motor frame provide structural stability in deep collection pits.
- Extended 10 m submersible power cable facilitates integration into submerged wells.
- Class F insulation and IP68 degree of protection support safe operation at 8 meter depths.
