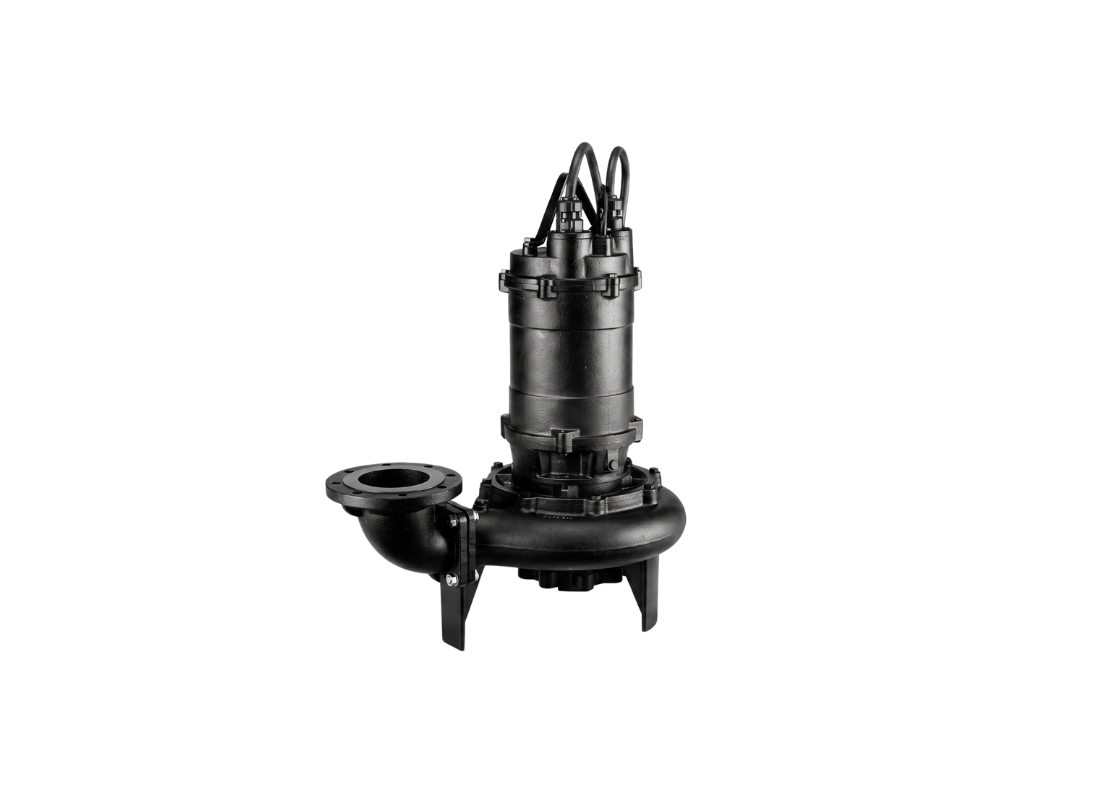

Operating with a 3.7 kW motor, this manual three-phase unit reaches flow rates up to 2700 L/Min and a total head of 12.8 m. It operates on a 415v supply, drawing a rated current of 8.4 Amps, and includes a 10 m submersible power cable. The air-filled dry submersible 4-pole motor is designed for Star-Delta starting at a synchronous speed of 1500 rpm.
The impeller arrangement is designed for non-clog operation when handling wastewater containing suspended solids. This hydraulic system permits the passage of foreign matter up to 76 mm in diameter. Discharge is provided through an 80 mm vertical port fitted with a discharge elbow with companion flange.
Materials include a cast iron pump body, motor frame, and impeller with AISI 403 stainless steel shafting and 304 fasteners. Motor protection is managed by a double mechanical seal in an oil chamber featuring Silicon Carbide lower faces. The assembly is IP68 rated for submerged operation and utilizes Class F insulation.
Designed for municipal wastewater transfer, this vertical unit handles liquids at temperatures up to 40°C. It is rated for continuous service at submergence depths reaching 8 meters. The pump is suited for fixed installations in commercial environments where gravity mains are unavailable and manual control is required.
FEATURES
- Submersible motor features a 4-pole design rated for Class F insulation and IP68 protection.
- Enclosed single-channel impeller arrangement facilitates the passage of 76 mm solids.
- Double mechanical shaft seal isolated by an oil chamber prevents fluid ingress to the motor.
- Features Silicon Carbide lower seal faces for durability in abrasive sewage environments.
- Includes an 80 mm screwed discharge elbow with companion flange, gaskets, and bolts.
- Cast iron pump casing and motor frame construction provide stability in submerged wells.
- Motor incorporates an automatic thermal protector.
- Double-row lower bearings support the shaft assembly for operation at 1500 rpm.
