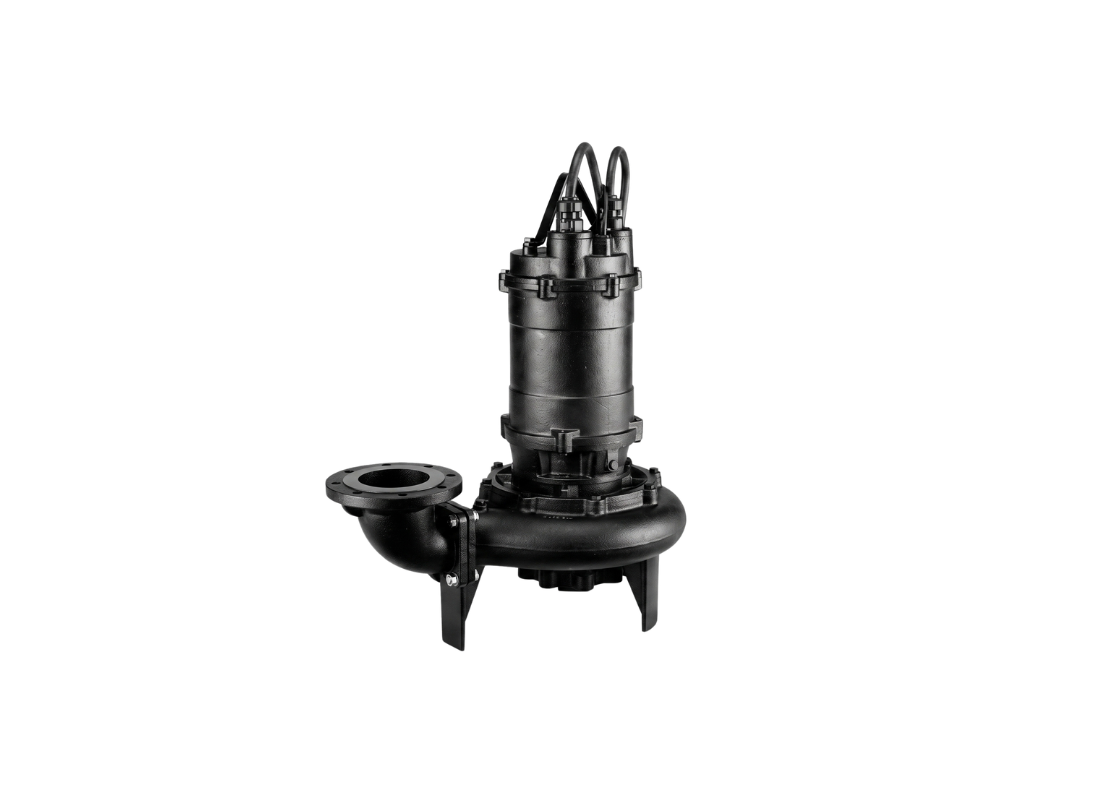

Materials include a cast iron pump body and motor frame secured with 304 stainless steel fasteners. The AISI 403 stainless steel shaft is protected by a double mechanical seal in an intermediate oil chamber featuring Silicon Carbide lower faces. Electrical reliability is supported by Class F insulation and the pump is IP68 rated for submerged operation.
Designed for commercial sewage pumping and municipal wastewater transfer, this vertical pump handles liquids at temperatures up to 40°C. It is rated for maximum submergence depths of 8 meters during continuous duty. The system is engineered for collection pits where large volumes of effluent containing solids must be moved manually.
Hydraulic output is provided by a 7.5 kW motor delivering a maximum flow rate of 4000 L/Min and a total head of 16.8 m. Operating on a three-phase 415v supply, the unit draws a rated current of 16.9 Amps. A 10 m submersible power cable is provided for the air-filled dry submersible 4-pole motor, which is designed for Star-Delta starting.
The impeller arrangement is designed for non-clog operation when handling fluids containing suspended solids. This hydraulic system permits the passage of foreign matter up to 76 mm in diameter. Discharge is handled through an 80 mm vertical port fitted with the included discharge elbow with companion flange.
FEATURES
- Enclosed single-channel impeller configuration facilitates the passage of 76 mm solids.
- Submersible motor features a dry air-filled design rated for IP68 submerged operation.
- Shaft sealing uses a double mechanical system isolated in an oil chamber for motor protection.
- Utilizes Silicon Carbide lower seal faces for durability in abrasive sewage fluids.
- Supplied with an 80 mm screwed discharge elbow with companion flange, gaskets, and fasteners.
- Motor incorporates an automatic thermal protector.
- Double-row lower bearings support the 4-pole rotating assembly for stable service.
- Synchronous speed of 1500 rpm at 50Hz frequency supports high-volume transfer.
