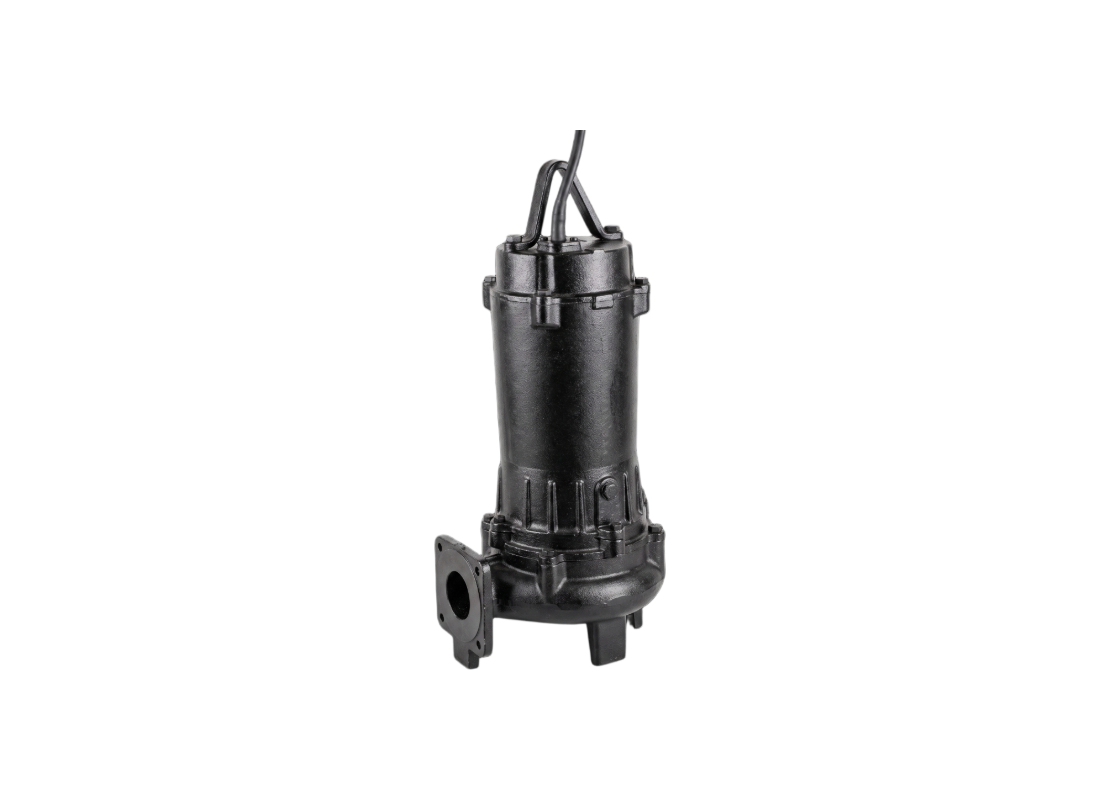

The semi-vortex impeller is designed for non-clog operation when handling wastewater containing soft or fibrous solids. This hydraulic configuration facilitates the transfer of foreign matter up to 56 mm in diameter and fibers reaching 350 mm in length. Discharge is handled through an 80 mm vertical port fitted with the included screwed companion flange kit.
Powered by a 3.7 kW motor, this manual three-phase unit reaches a maximum flow rate of 1000 L/Min and a maximum head of 21.2 m. Operating on a 415v supply, it draws a rated current of 7.8 Amps and includes a 10 m submersible power cable. The 2-pole air-filled dry motor is rated for continuous duty at synchronous speeds of 3000 rpm.
Heavy-duty wastewater handling and industrial drainage are documented applications for this vertical submerged unit. It is rated for liquid temperatures reaching 40°C and maximum submergence depths up to 8 meters during continuous service. The unit is designed for collection pits where large volumes of effluent containing solids must be moved manually.
Construction features a cast iron pump body, motor frame, and impeller paired with an AISI 403 stainless steel shaft. Sealing is managed by a double mechanical seal in an oil chamber featuring Silicon Carbide lower faces and Carbon/Ceramic upper faces. The rotating assembly uses 304 stainless steel fasteners and is protected by an in-built thermal protector.
FEATURES
- Semi-vortex impeller configuration facilitates the passage of 56 mm solids and long fibrous waste.
- High-power motor reaches flow rates of 1000 L/Min with 21.2 m maximum head for lifting.
- Shaft sealing uses a double mechanical system isolated in an oil chamber for motor protection.
- Mechanical seal features Silicon Carbide lower faces for durability in abrasive industrial waste.
- Includes an 80 mm screwed companion flange discharge kit with necessary gaskets and bolts.
- Cast iron pump frame and casing provide structural stability in permanent submerged wells.
- Class F insulation and IP68 degree of protection support safe operation at 8 meter depths.
- Extended 10 m submersible power cable allows for secure integration into deep collection pits.
