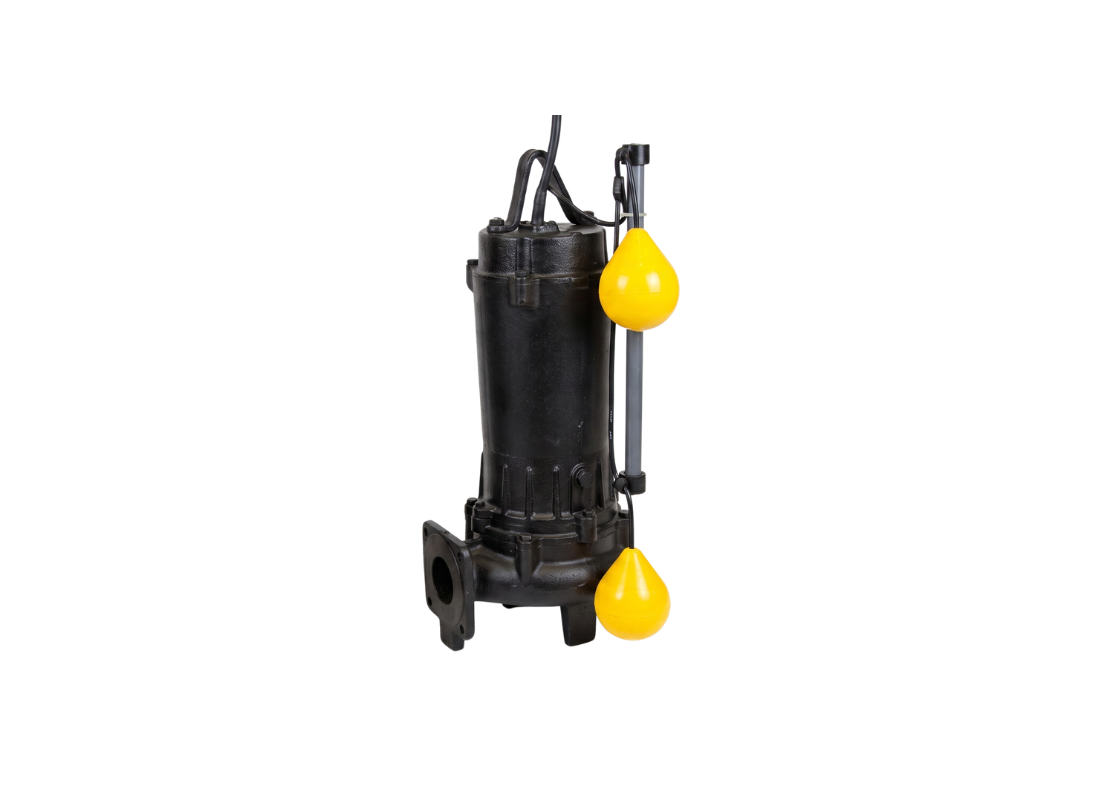

Ebara 80 DVSA 5.75 Cast Iron Automatic Wastewater Pump for Industrial Wastewater with Semi-Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Materials of construction for this unit include a cast iron pump casing, motor frame, and impeller secured with 304 fasteners. The AISI 403 stainless steel shaft is protected by a double mechanical seal in an intermediate oil chamber featuring Silicon Carbide lower faces. Electrical reliability is supported by Class F insulation and an IP68 protection rating for the dry induction motor.
The semi-vortex impeller is designed for non-clog operation when handling wastewater containing soft or fibrous solids. This hydraulic path allows for the passage of foreign matter up to 45 mm in diameter and fibers reaching 320 mm in length. A 80 mm vertical discharge port is used, including a screwed companion flange elbow kit.
Operating with a 0.75 kW motor, this automatic three-phase unit reaches flow rates up to 400 L/Min and a maximum head of 10.7 m. Drawing a rated current of 1.9 Amps on a 415v supply, the unit includes 6 m of submersible cable. This configuration utilizes an integrated float switch system to manage water level drainage cycles unattended.
Automatic industrial wastewater lifting and municipal drainage tasks are primary applications for this submerged unit. It is rated for liquid temperatures reaching 40°C and maximum submergence depths of 4 meters during continuous duty. The pump is engineered for vertical installation in collection wells where automated operation is necessary.
FEATURES
- Integrated float switch system enables automated start/stop functionality for pit drainage.
- Semi-vortex impeller configuration facilitates the non-clog passage of 45 mm suspended solids.
- Three-phase motor rated for 415v service draws 1.9 Amps while providing 400 L/Min flow.
- Double mechanical shaft seal in an oil chamber with SiC lower faces prevents motor ingress.
- Supplied complete with an 80 mm discharge elbow kit, gaskets, and companion flange bolts.
- Rugged cast iron casing and motor frame provide structural stability in submerged service.
- In-built overload protection prevents motor damage during demanding automated drainage cycles.
- IP68 protection rating permits continuous immersion at depths up to the 4 meter rating.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 10.7 m |
| Power | 0.75 kW / 415v |
| Rated Current | 1.9 Amps |
| Suitable For | Automatic Industrial Wastewater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 80 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which construction materials form the submerged pump assembly?
Cast iron forms the casing, frame and impeller of 80_DVSA_5_75, paired with an AISI 403 shaft and 304 stainless fasteners for submerged wastewater service.
What maximum head is available for wastewater discharge?
For collection-well discharge, 80 DVSA 5 75 provides a maximum head of 10.7 m through its 80 mm vertical outlet.
How does the float switch control drainage operation?
An integrated float switch on 80-DVSA-5-75 starts and stops the pump automatically as wastewater rises and falls within collection wells.
What solids passage is provided by its impeller?
The semi-vortex impeller in 80/DVSA/5/75 passes solids up to 45 mm and fibres reaching 320 mm during wastewater handling.
What maximum flow supports automatic industrial drainage?
Automatic wastewater lifting can reach 400 L/Min through 80DVSA575 for municipal drainage and industrial effluent transfer from collection wells.
