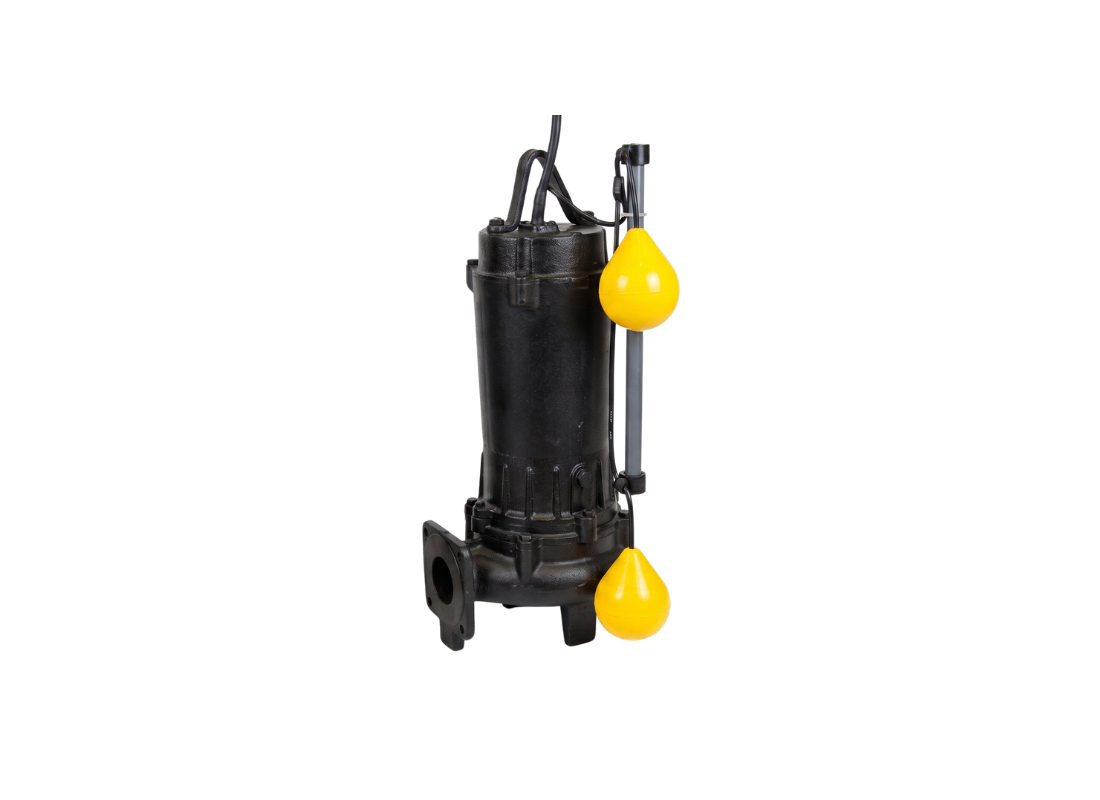

Ebara 80 DVSA 52.2 Cast Iron Float Switch Wastewater Pump for Civil Wastewater with Semi-Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Powered by a 2.2 kW motor, this automatic three-phase unit reaches flow rates up to 800 L/Min and a total head of 15.5 m. It operates on a 415v supply, drawing a rated current of 5 Amps, and includes a 10 m submersible power cable. This version utilize an integrated float switch system to manage unattended water level start and stop cycles.
Construction features include a cast iron pump body, motor frame, and impeller paired with an AISI 403 stainless steel shaft. Sealing is handled by a double mechanical seal in an oil chamber featuring Silicon Carbide lower faces and Carbon/Ceramic upper faces. Fasteners are manufactured from 304 stainless steel and the assembly is rated for IP68 protection.
The semi-vortex impeller is designed for non-clog operation when handling wastewater containing soft or fibrous solids. This hydraulic configuratiton permits the passage of foreign matter up to 56 mm in diameter and fibers reaching 350 mm. Fluid is discharged through an 80 mm delivery port fitted with the included screwed companion flange kit.
Automatic lifting of industrial and civil wastewater is the documented application for this vertical submerged unit. It is rated for liquid temperatures reaching 40°C and a maximum submergence depth of 8 meters during continuous automated service. The pump is designed for vertical installation in deep collection wells where unattended drainage is required.
FEATURES
- Integrated float switch system provides fully automated control for industrial pit transfer.
- Semi-vortex impeller configuration facilitates the passage of 56 mm solids and long fibrous waste.
- Double mechanical shaft seal isolated by an oil chamber with SiC faces protects the motor.
- Three-phase 415v motor draws 5 Amps while delivering flow rates up to 800 L/Min for lifting.
- Supplied with an 80 mm discharge elbow kit, companion flange, gaskets, and required bolts.
- Cast iron pump casing and motor frame provide structural stability in permanent submerged wells.
- Extended 10 m submersible cable allows for installation at submergence depths reaching 8 meters.
- In-built thermal protector and Class F insulation safeguard the winding during service cycles.
SPECIFICATIONS
| Max Flow | 800 L/Min |
| Max Head | 15.5 m |
| Power | 2.2 kW / 415v |
| Rated Current | 5 Amps |
| Suitable For | Automatic Fibrous Wastewater Handling |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 80 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the integrated float switch manage drainage?
Unattended pit drainage is controlled by the integrated float switch on 80_DVSA_52_2, which starts and stops pumping as water levels change.
What maximum head is available for deeper discharge?
For deeper discharge lines, 80 DVSA 52 2 provides a maximum head of 15.5 m through its 80 mm delivery connection.
Which motor and electrical ratings are specified?
The 2.2 kW motor in 80-DVSA-52-2 runs on three-phase 415 V, draws 5 Amps and is supplied with a 10 m cable.
What solids and fibres can the impeller pass?
Soft solids up to 56 mm and fibres reaching 350 mm can pass through the semi-vortex impeller in 80/DVSA/52/2.
What maximum flow is provided during automatic lifting?
Industrial wastewater lifting can receive a maximum flow of 800 L/Min from 80DVSA522 through its 80 mm outlet during automatic drainage.
