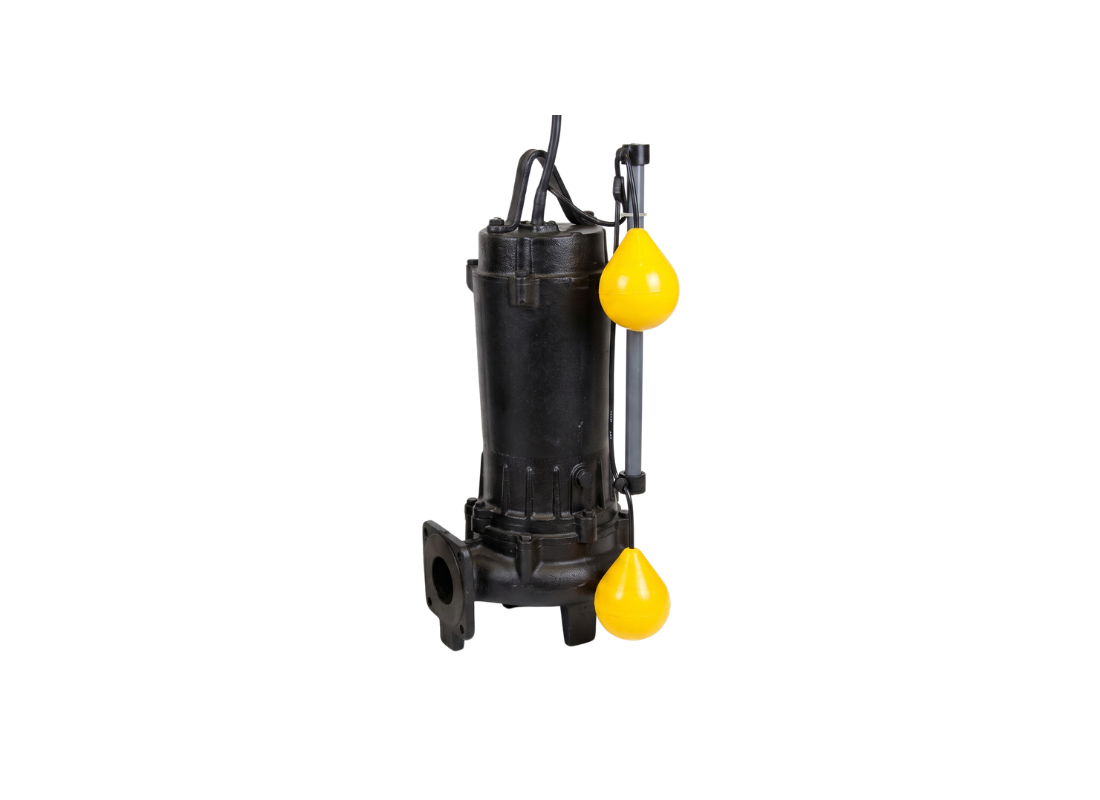

Materials include a cast iron pump body, motor frame, and impeller with an AISI 403 stainless steel shaft secured by 304 fasteners. Motor protection is managed by a double mechanical seal in an intermediate oil chamber featuring Silicon Carbide lower faces. The assembly features Class F electrical insulation and an IP68 protection rating for permanent underwater service.
Performance for this 3.7 kW motor reaching a total head of 21.2 m and flow rates up to 1000 L/Min. Drawing a rated current of 7.8 Amps on a three-phase 415v supply, the unit includes 10 m of submersible cable. This automatic configuration utilizes an integrated float switch system to manage water level start and stop cycles unattended.
The semi-vortex impeller is designed for non-clog operation when handling wastewater containing soft or fibrous solids. This hydraulic path allows the passage of suspended foreign matter up to 56 mm in diameter and fibers reaching 350 mm in length. Discharge is provided through an 80 mm delivery port fitted with the included companion flange elbow kit.
Automatic heavy-duty wastewater lifting and industrial transfer are the primary applications for this vertical unit. It handles liquid temperatures up to 40°C and is rated for a maximum submergence depth of 8 meters during continuous duty. The pump is engineered for vertical standing installation in deep collection wells where automated operation is necessary.
FEATURES
- Integrated float switch system enables automated water level management for unattended drainage.
- Semi-vortex impeller design ensures non-clogging performance with suspended solids up to 56 mm.
- Twin mechanical seals in an oil chamber with Silicon Carbide lower faces prevent liquid ingress.
- Three-phase motor reached flow rates up to 1000 L/Min for heavy-duty automated lifting.
- Includes an 80 mm screwed companion flange discharge elbow kit and necessary gaskets.
- Cast iron casing and motor frame construction provide structural longevity in industrial wells.
- In-built thermal protector safeguards the motor winding against damage during high-load cycles.
- Extended 10 m power cable facilitates integration into collection pits at depths up to 8 meters.
