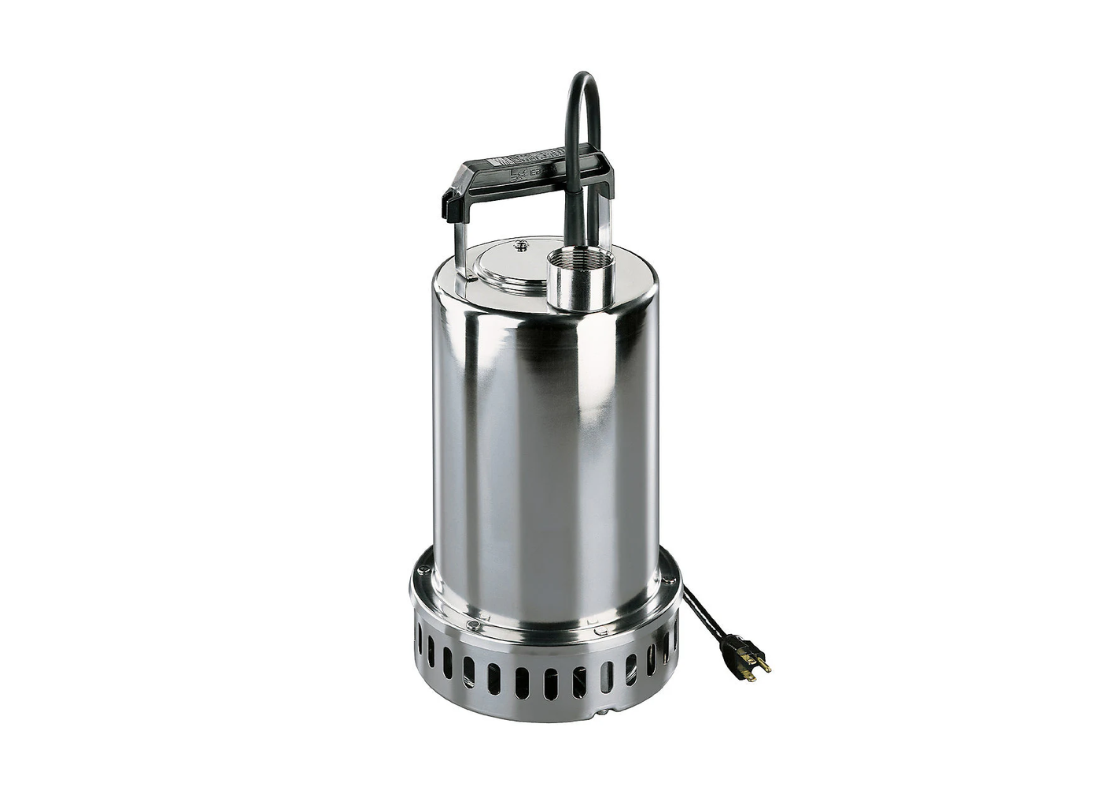

Ebara BEST 2M Stainless Steel Submersible Drainage Pump with Open Impeller Manual
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
The Ebara BEST 2M is a high-quality 304 stainless steel submersible drainage pump designed for clean or lightly contaminated water removal in domestic, commercial and light industrial applications. Built with AISI 304 stainless steel hydraulic components, the pump offers excellent corrosion resistance and durability for long-term operation in demanding environments.
Featuring an open centrifugal impeller, the BEST 2M is capable of handling suspended solids up to 10 mm, making it ideal for sump pits, basements, tanks and general drainage duties. The pump incorporates a double mechanical seal system with an oil chamber, protecting the motor and ensuring reliable performance even during continuous operation.
Powered by a 0.55 kW single phase submersible motor, the pump includes built-in thermal protection and IP68 sealing for safe underwater operation. The manual version (without float switch) is suitable for installations where external level control is used or where the pump is operated manually.
With its corrosion-resistant construction, compact design and reliable hydraulic performance, the Ebara BEST 2M is an excellent solution for drainage, water transfer and sump pumping applications.
FEATURES
- Full 304 stainless steel pump construction for corrosion resistance
- Open centrifugal impeller design capable of passing solids up to 10 mm
- Double mechanical seal with oil chamber for enhanced motor protection
- Submersible dry motor with IP68 protection
- Built-in thermal overload protection for safe operation
- Manual operation model without float switch
- Compact and portable design suitable for sump pits and drainage tanks
- Suitable for basement drainage, tank emptying and water transfer
SPECIFICATIONS
| Max Flow | 260 L/min |
| Max Head | 12.2 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.4 Amps |
| Suitable For | Drainage / Sump Pumping / Basement Dewatering / Water Transfer |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is this manual pump controlled during drainage operation?
Manual operation means the BEST_2M has no float switch and requires external level control or manual switching at the installation.
Which solids passage capability is provided by the impeller?
Solids up to 10 mm pass through the BEST 2M's open centrifugal impeller during routine sump and basement drainage in domestic settings.
Which motor output and protections support submerged operation?
The BEST-2M is fitted with a 0.55 kW single-phase motor and has IP68 protection plus built-in thermal overload protection for submerged use.
Which seal arrangement helps protect the motor from water?
A double mechanical seal with an oil chamber protects the motor from water ingress in the BEST/2M during submerged operation.
Where is this compact drainage pump intended to operate?
The BEST2M suits basement drainage tank emptying and sump-pit dewatering when removing clean or lightly contaminated water in domestic drainage situations.
