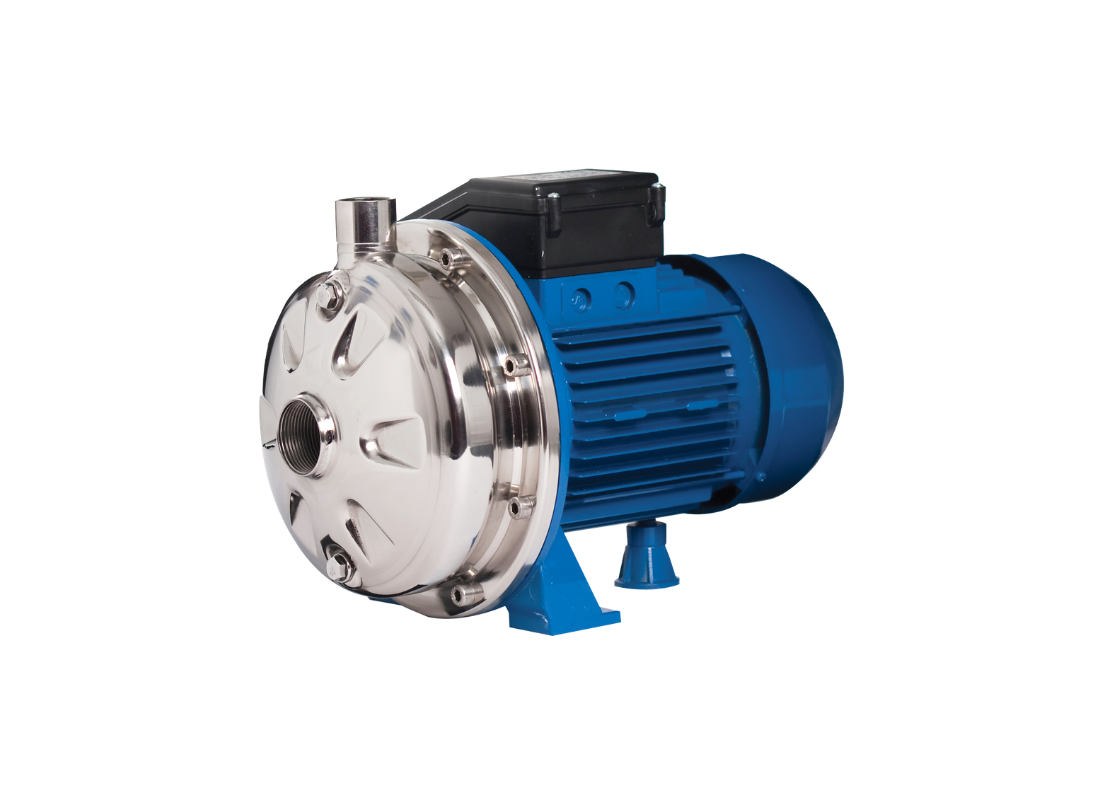

Ebara CDX 120/07 Stainless Steel Centrifugal Pump for Circulation Systems with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Where systems require continuous and stable liquid movement, this pump supports circulation duties across industrial loops, process lines, and auxiliary water systems. Its configuration is well suited for installations that demand consistent flow without fluctuations in output.
With flow reaching up to 180 L/Min and a maximum head of 20.5 m, the unit delivers controlled hydraulic performance across a broad operating range. The performance curve maintains stable pressure behavior, ensuring efficient circulation under varying system loads.
Flow is supported through a closed centrifugal impeller that directs liquid with precision while minimizing internal turbulence and hydraulic losses. This design ensures smooth discharge characteristics and stable flow handling in clean water applications.
The construction incorporates AISI 304 stainless steel for the casing, impeller, and casing cover, paired with a 303 stainless steel shaft for wetted durability. A Carbon/Ceramic/NBR mechanical seal provides effective sealing, while the TEFC motor with IP55 protection and Class F insulation supports reliable operation.
FEATURES
- Single-stage centrifugal hydraulic design for consistent flow delivery
- Closed impeller configuration ensuring efficient and stable liquid movement
- TEFC motor construction with IP55 protection for environmental resistance
- Class F insulation system supporting continuous-duty thermal performance
- Carbon/Ceramic/NBR mechanical seal for reliable shaft sealing integrity
- Aluminium motor bracket and frame aiding structural stability and heat dissipation
- Sealed ball bearing system for smooth rotation and reduced maintenance needs
- Compact close-coupled configuration enabling easy installation and alignment
SPECIFICATIONS
| Max Flow | 180 L/Min |
| Max Head | 20.5 m |
| Power | 0.55 kW / 415v |
| Rated Current | 1.9 Amps |
| Suitable For | Circulation Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 90°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which systems are suitable for this pump?
Industrial circulation loops and process lines can use the CDX_120_07, which is configured for continuous clean-water movement and auxiliary water supply.
What maximum flow capacity does this pump provide?
The CDX 120 07 handles flow rates up to 180 L/Min, supporting systems that require consistent liquid movement without output fluctuations.
What maximum head is available from this pump?
A maximum head of 20.5 m is available from the CDX-120-07, providing the stated limit for discharge pressure in circulation systems.
What stainless steel grade is used for wetted components?
AISI 304 stainless steel forms the casing, impeller and cover of the CDX/120/07, while its wetted shaft extension uses 303 stainless steel.
Which mechanical seal and motor protection are fitted?
The CDX12007 uses a Carbon/Ceramic/NBR mechanical seal and a TEFC motor with IP55 protection and Class F insulation for continuous operation.
