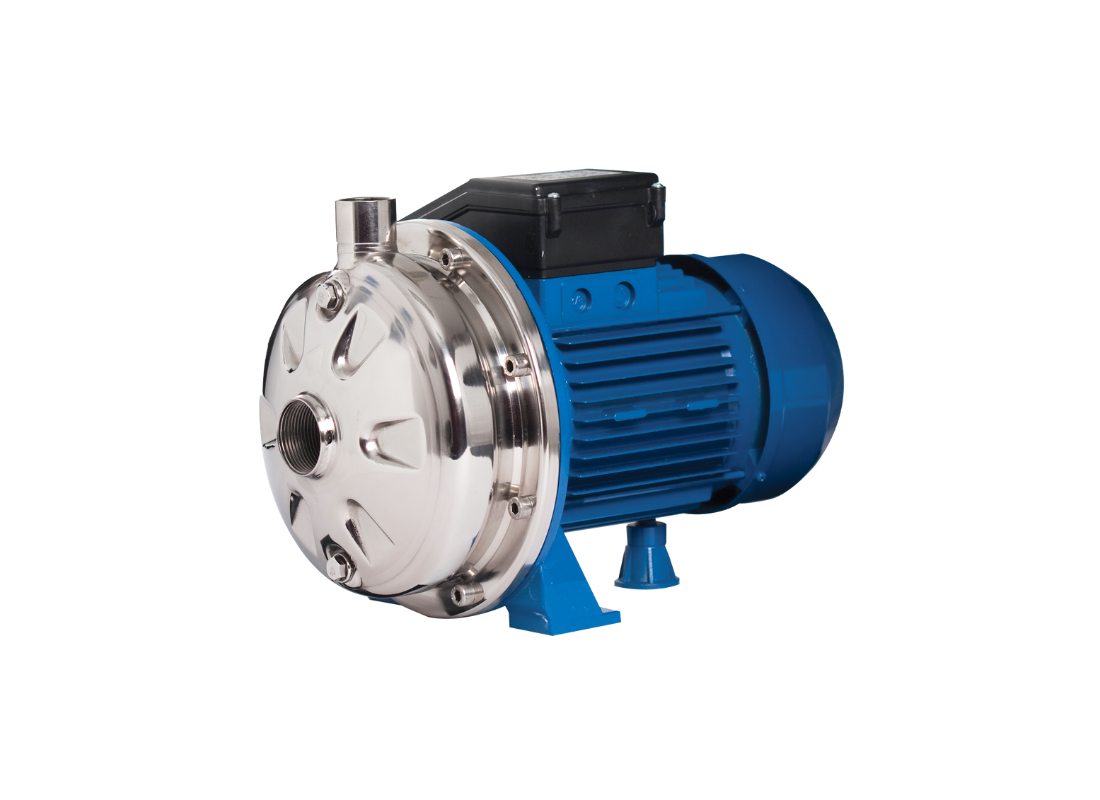

Ebara CDX 120/12 Stainless Steel Centrifugal Pump for Spray Systems with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Where systems demand consistent pressure delivery for controlled discharge, this pump supports spray systems, process distribution, and regulated supply lines. Its configuration is suited to installations requiring stable output with reliable pressure for uniform application.
With flow reaching up to 160 L/Min and a maximum head of 29.5 m, the unit delivers balanced hydraulic performance across its operating range. The performance curve ensures steady pressure generation with smooth flow response under varying load conditions.
Flow is supported through a closed centrifugal impeller that maintains directional efficiency and minimizes internal hydraulic losses. This design enables uniform discharge characteristics and controlled liquid movement in clean water handling systems.
The construction incorporates AISI 304 stainless steel for the casing, impeller, and casing cover, combined with a 303 stainless steel shaft for wetted durability. A Carbon/Ceramic/NBR mechanical seal ensures effective sealing, while the TEFC motor with IP55 protection and Class F insulation supports dependable long-term operation.
FEATURES
- Single-stage centrifugal hydraulic design for stable pressure delivery
- Closed impeller configuration ensuring efficient and controlled flow movement
- TEFC motor enclosure with IP55 protection for industrial environments
- Class F insulation system supporting continuous-duty thermal performance
- Carbon/Ceramic/NBR mechanical seal ensuring reliable sealing integrity
- Aluminium motor bracket and frame aiding structural stability and heat dissipation
- Sealed ball bearing arrangement for smooth operation and reduced maintenance
- Compact close-coupled construction allowing efficient installation alignment
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 29.5 m |
| Power | 0.9 kW / 415v |
| Rated Current | 2.6 Amps |
| Suitable For | Spray Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 90°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What applications suit this pump's discharge characteristics?
Spray systems and process distribution can use the CDX_120_12, which is configured for stable pressure delivery and uniform liquid application.
What maximum flow rate can the model reach?
The CDX 120 12 provides flow up to 160 L/Min, supporting regulated supply lines that need a consistent delivery volume.
What maximum head does this pump provide?
For pressure requirements, the CDX-120-12 develops a maximum head of 29.5 m across its stated operating range for controlled discharge duties.
Which motor construction helps protect electrical components?
The TEFC enclosure on the CDX/120/12 carries IP55 protection, and its Class F insulation supports thermal endurance during continuous operation.
Which materials are used in the wetted assembly?
Casing, impeller and cover use AISI 304 stainless steel, while the CDX12012 includes a 303 stainless steel shaft and Carbon/Ceramic/NBR seal.
