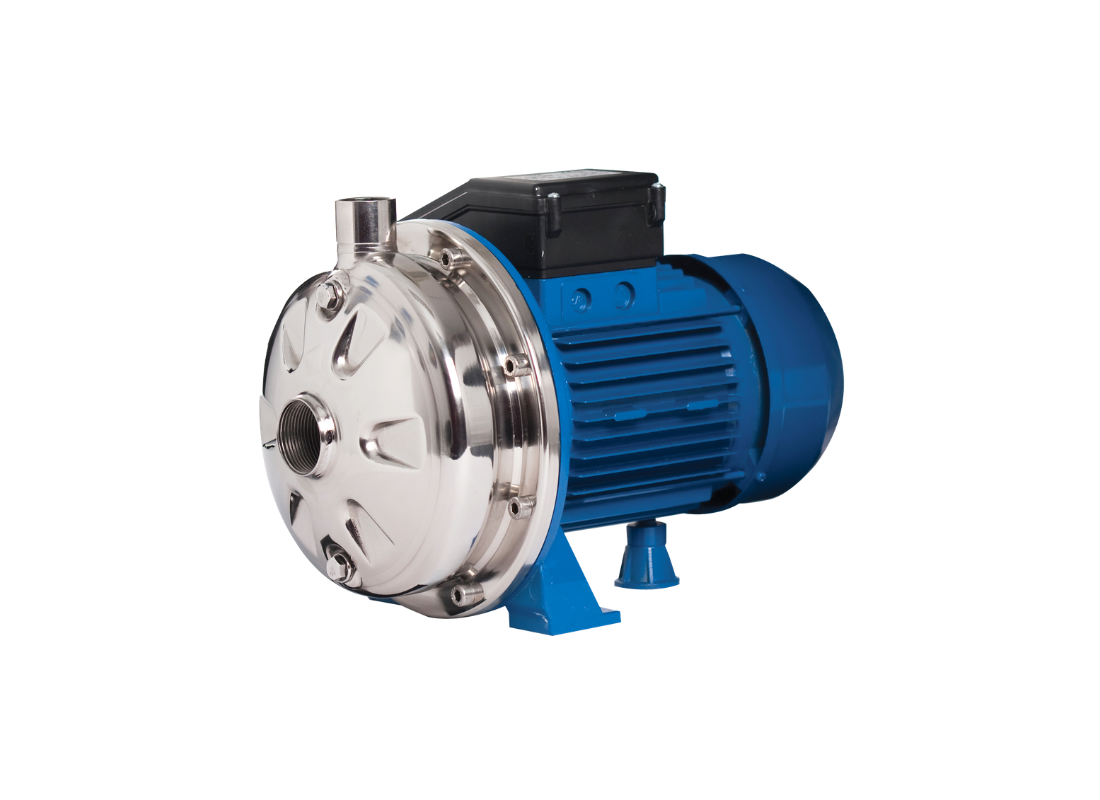

Ebara CDX 120/12 Stainless Steel Thermal Duty Centrifugal Pump for Boiler Systems with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Where systems require reliable delivery of heated clean water into pressurized equipment, this pump supports boiler feed systems, thermal processing lines, and controlled hot water supply networks. Its configuration is suited to installations where stable pressure and thermal resistance are essential for efficient operation.
With flow reaching up to 160 L/Min and a maximum head of 29.5 meters, the unit delivers consistent hydraulic performance across its operating range. The performance curve ensures stable pressure generation with smooth flow characteristics under varying system demands.
Flow is supported through a closed centrifugal impeller that directs liquid efficiently while minimizing internal recirculation losses. This design ensures controlled discharge characteristics and stable hydraulic behavior in clean water handling systems.
The construction incorporates AISI 304 stainless steel for the casing, impeller, and casing cover, combined with a 303 stainless steel shaft. The high temperature version is equipped with a Carbon/Ceramic/Viton mechanical seal and Viton O-rings, enabling operation up to 110°C, while the TEFC motor with IP55 protection and Class F insulation supports dependable continuous-duty performance.
FEATURES
- High temperature seal configuration with Viton elastomers for elevated liquid handling
- Closed impeller design ensuring efficient and stable hydraulic flow control
- Three-phase motor configuration for consistent industrial operation
- TEFC motor enclosure with IP55 protection against environmental exposure
- Class F insulation system supporting continuous-duty thermal operation
- Stainless steel hydraulic components for corrosion resistance and durability
- Sealed ball bearing arrangement for smooth rotation and reduced maintenance
- Compact close-coupled construction enabling efficient installation alignment
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 29.5 m |
| Power | 0.9 kW / 415v |
| Rated Current | 2.6 Amps |
| Suitable For | Boiler Feed |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which flow capacity supports heated process delivery?
The CDX_120_12_HT delivers up to 160 L/Min for boiler-feed and thermal-processing lines that require heated clean-water movement at steady volume.
Which stainless-steel parts form the hydraulic assembly?
AISI 304 stainless steel forms the casing impeller and cover while a 303 stainless steel shaft is fitted to the CDX 120 12 HT.
What motor supply is required for this version?
Three-phase motor operation is used by the CDX-120-12-HT for industrial hot-water supply and thermal processing systems needing continuous circulation. for industrial installation requirements
What seal arrangement supports elevated liquid temperatures?
A Carbon/Ceramic/Viton mechanical seal and Viton O-rings equip the CDX/120/12/HT for clean-water service at temperatures reaching 110°C. during continuous thermal circulation
What maximum head is stated for discharge?
For pressurised heating lines the CDX12012HT provides a maximum head of 29.5 m within its stated operating range for controlled delivery.
