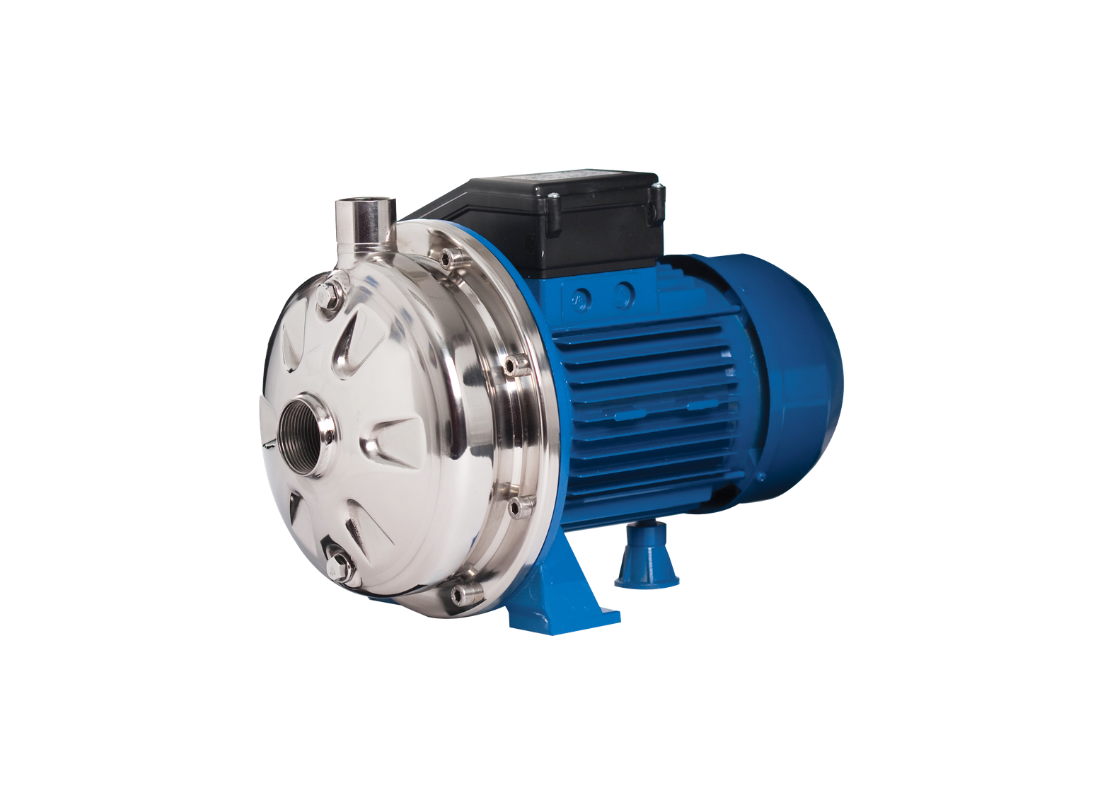

Ebara CDX 70/05 Stainless Steel Centrifugal Pump for Cooling Circulation with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Where compact systems require controlled water circulation, this pump supports efficient fluid movement in cooling loops, small industrial circuits, and auxiliary transfer systems. Its configuration suits installations where space is limited but consistent hydraulic output is necessary for maintaining system balance.
With flow reaching up to 90 L/Min and a maximum head of 20.7 m, the pump delivers stable hydraulic performance within its operating range. The curve ensures balanced pressure delivery, allowing dependable operation under moderate demand conditions without fluctuation.
Flow is managed through a closed centrifugal impeller that directs liquid with precision while minimizing internal recirculation losses. This hydraulic structure supports smooth discharge characteristics and consistent flow behavior in clean water handling applications.
The construction incorporates AISI 304 stainless steel for the casing, impeller, and casing cover, along with a 303 stainless steel shaft in contact with liquid. A Carbon/Ceramic/NBR mechanical seal provides effective sealing, while the TEFC motor with IP55 protection and Class F insulation ensures operational reliability.
FEATURES
- Single-stage centrifugal hydraulic design for steady flow control
- Closed impeller configuration ensuring directional flow efficiency
- TEFC motor enclosure with IP55 protection against environmental exposure
- Class F insulation supporting thermal stability during continuous operation
- Carbon/Ceramic/NBR mechanical seal for secure shaft sealing performance
- Aluminium motor bracket and frame for structural integrity and cooling support
- Sealed ball bearing arrangement for smooth rotation and reduced wear
- Compact close-coupled design allowing space-efficient installation
SPECIFICATIONS
| Max Flow | 90 L/Min |
| Max Head | 20.7 m |
| Power | 0.37 kW / 415v |
| Rated Current | 1.4 Amps |
| Suitable For | Cooling Circulation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Where is this compact pump suitable for use?
Cooling loops and small industrial circuits are among the duties supported by the CDX_70_05, alongside auxiliary transfer systems with limited installation space.
What maximum head does this pump provide?
The CDX 70 05 develops a maximum head of 20.7 m, supporting controlled circulation where moderate discharge pressure is required.
What maximum flow rate can this unit deliver?
A maximum flow of 90 L/Min is available from the CDX-70-05 for compact clean-water circulation and auxiliary transfer duties within the stated hydraulic range.
Which materials are used in the wetted components?
AISI 304 stainless steel forms the casing, impeller and cover of the CDX/70/05, while its shaft uses 303 stainless steel.
What motor enclosure and insulation are provided?
A TEFC motor with IP55 protection and Class F insulation equips the CDX7005, supporting reliable operation in exposed installation environments.
