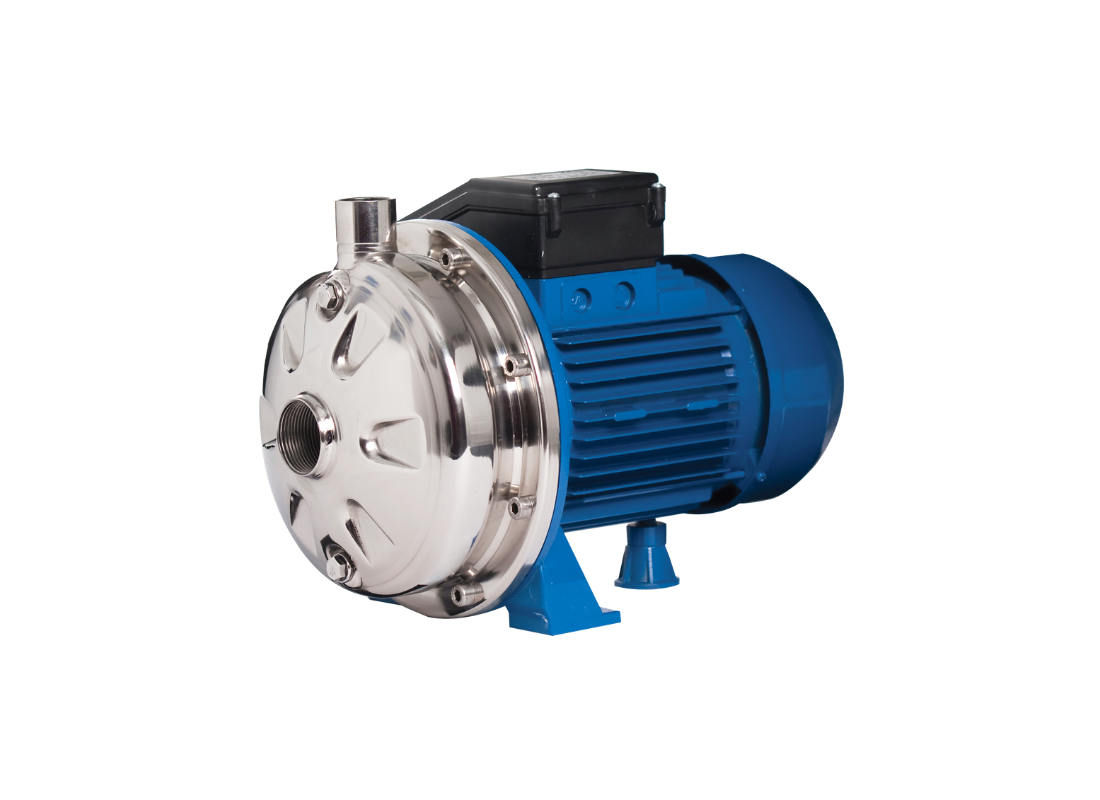

Ebara CDXM 120/07 Stainless Steel Centrifugal for Agricultural Irrigation Pump with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
The Ebara CDXM 120/07 is an engineered solution for agricultural irrigation and water transfer, combining high efficiency with 304 stainless steel durability. This single-phase model provides reliable performance for rural properties and landscape management professionals requiring consistent water movement.
Constructed from high-grade 304 stainless steel, the pump housing and impeller are designed to resist pitting and surface corrosion. The motor frame is made from lightweight yet strong aluminum, and the internal shaft is 303 stainless steel to maintain precise alignment under operational stress.
Technical performance metrics include a 0.55 kW motor providing a safe maximum head of 20.5 meters and a flow rate up to 180 L/min. These buffered values ensure the pump operates within its most efficient range while providing ample pressure for irrigation lines and tank filling tasks.
Equipped with a 240V single-phase motor, the CDXM 120/07 includes built-in thermal overload protection to prevent damage from overheating. The TEFC motor is rated to IP55 standards, ensuring protection against dust and water ingress, while the mechanical seal uses carbon and ceramic faces for long-term reliability.
FEATURES
- Durable 304 Stainless Steel wetted parts for clean water service
- High-efficiency closed impeller design for optimized flow
- Built-in thermal overload protection for motor safety
- Suitable for liquid temperatures up to 90°C
- IP55 rated enclosure for reliable outdoor installation
- Easy-maintenance back pull-out design
SPECIFICATIONS
| Max Flow | 180 L/Min |
| Max Head | 20.5 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.6 Amps |
| Suitable For | Agricultural Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 90°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which applications are suitable for this pump?
Agricultural irrigation and water transfer are supported by the CDXM_120_07, which combines 304 stainless steel wetted parts with single-phase operation.
What maximum flow can this pump deliver?
The CDXM 120 07 delivers flow rates up to 180 L/Min, supporting irrigation lines and tank filling where steady water movement is required.
What motor output and supply voltage are specified?
Power comes from a 0.55 kW motor on a 240 V single-phase supply, with the CDXM-120-07 including built-in thermal overload protection.
What maximum head can the pump develop?
A maximum head of 20.5 m is available from the CDXM/120/07, providing a stated pressure limit for water-transfer and irrigation installations.
Which materials are used in its pump construction?
The casing and impeller use 304 stainless steel with a 303 stainless steel shaft, while the CDXM12007 has an aluminium motor frame.
