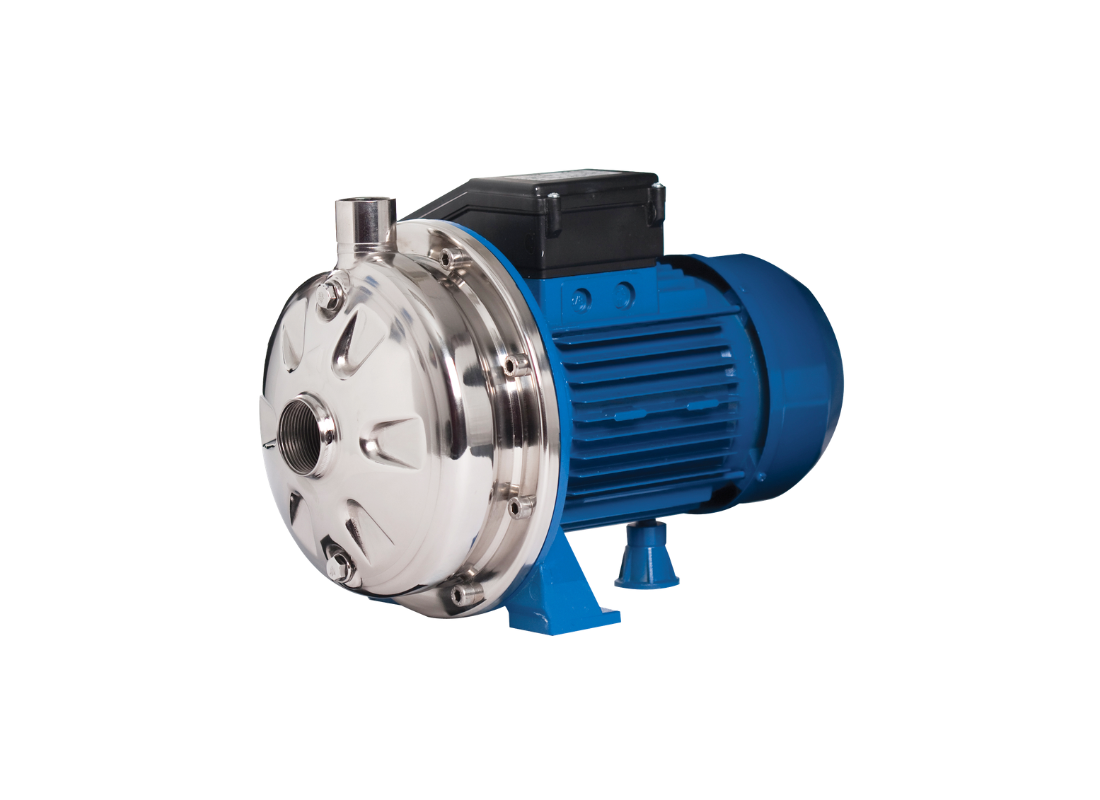

Ebara CDXM 120/12 Stainless Steel High Head Centrifugal Pump for Boiler Feed with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Where systems require controlled delivery of heated clean water into pressurized units, this pump supports boiler feed applications, thermal systems, and hot water supply lines operating at elevated temperatures. Its configuration is suited to installations where pressure stability and thermal resistance are critical.
With flow reaching up to 160 L/Min and a maximum head of 29.5 meters, the unit delivers reliable hydraulic performance across its operating range. The performance curve ensures stable pressure output with smooth flow behavior under varying system conditions.
Flow is supported through a closed centrifugal impeller that directs liquid efficiently while minimizing internal recirculation losses. This hydraulic design ensures controlled discharge characteristics and consistent fluid handling in clean water systems.
The construction incorporates AISI 304 stainless steel for the casing, impeller, and casing cover, combined with a 303 stainless steel shaft. The high temperature version is equipped with a Carbon/Ceramic/Viton mechanical seal and Viton O-rings, enabling operation up to 110°C, while the TEFC motor with IP55 protection and Class F insulation supports dependable continuous-duty operation with built-in overload protection.
FEATURES
- High temperature seal configuration with Viton elastomers for thermal durability
- Closed impeller design ensuring efficient and stable hydraulic flow control
- Single-phase motor with built-in overload protection for operational safety
- TEFC motor enclosure with IP55 protection against environmental exposure
- Class F insulation system supporting continuous-duty thermal operation
- Stainless steel hydraulic components for corrosion resistance and durability
- Sealed ball bearing system for smooth rotation and reduced maintenance
- Compact close-coupled construction enabling efficient installation
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 29.5 m |
| Power | 0.9 kW / 240v |
| Rated Current | 6.9 Amps |
| Suitable For | Boiler Feed |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum head supports pressurised supply duties?
For boiler-feed installations the CDXM_120_12_HT provides a maximum head of 29.5 m to maintain pressure across heated clean-water supply systems.
Which applications suit this high-temperature pump installation?
Boiler feed applications thermal systems and hot-water supply lines can use the CDXM 120 12 HT where elevated liquid temperatures are expected.
How does the impeller maintain controlled water movement?
The closed centrifugal impeller in the CDXM-120-12-HT directs clean water efficiently and limits internal recirculation for controlled discharge during operation.
Which motor protection features support single-phase operation?
A single-phase TEFC motor with built-in overload protection drives the CDXM/120/12/HT and includes IP55 enclosure protection with Class F insulation.
What temperature range is supported by its seal?
Carbon/Ceramic/Viton mechanical sealing and Viton O-rings let the CDXM12012HT handle heated clean water at temperatures up to 110°C. for continuous thermal circulation
