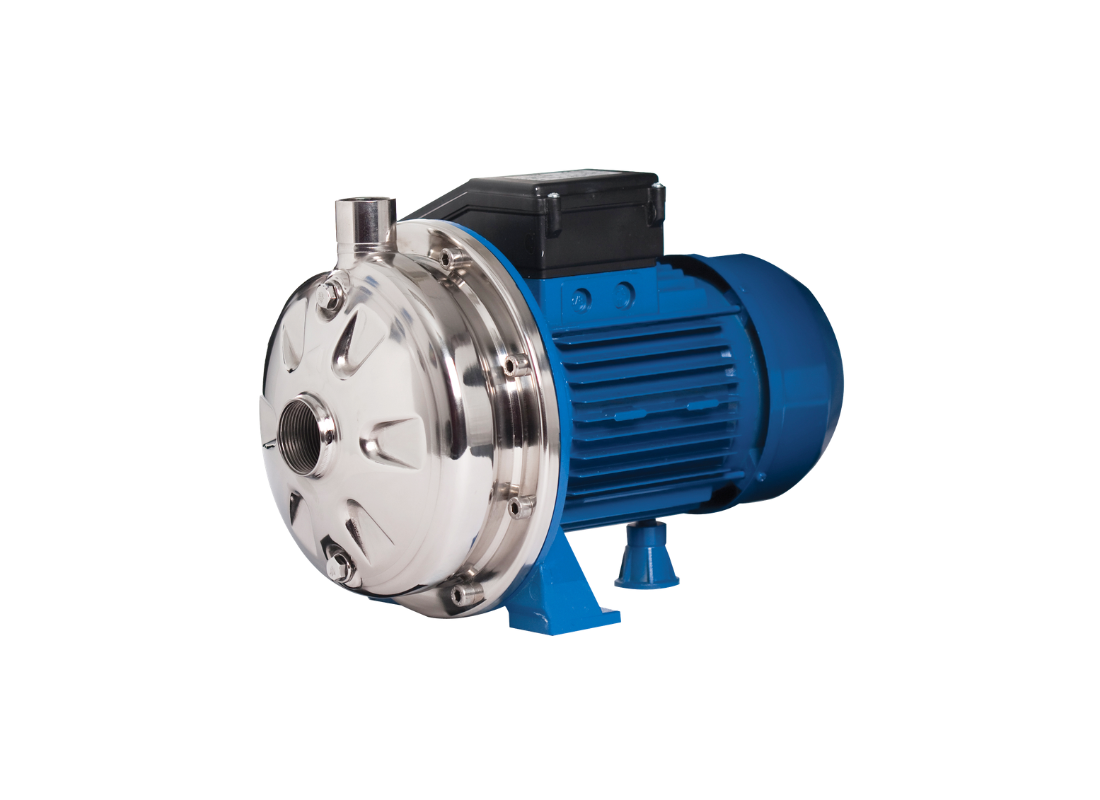

Ebara CDXM 120/12 Stainless Steel Robust Centrifugal Pump for Dairy Washdown with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
The Ebara CDXM 120/12 is a powerful single-phase centrifugal pump designed for demanding washdown and water transfer tasks. Offering a robust 0.9 kW motor, it provides the extra pressure required for dairy sanitation, equipment cleaning, and high-volume site dewatering.
This pump is fabricated entirely from 304 stainless steel components, including the casing and the closed-type impeller. This construction provides superior hygienic properties and resistance to chemicals found in washdown detergents, supported by a 303 stainless steel shaft extension for maximum strength.
Performance capabilities include a safe max head of 29.5 meters and a peak flow of 160 L/min. These buffered performance values ensure that the 0.9 kW motor remains cool and efficient during long periods of operation, making it a reliable choice for remote rural applications.
The 240V motor features an integrated capacitor and automatic thermal overload protection, simplifying the setup process for installers. With its IP55 enclosure rating and Class F insulation, the CDXM 120/12 is built to endure the moist and humid conditions typical of agricultural and food processing environments.
FEATURES
- Powerful 0.9kW motor for increased head pressure
- Hygienic 304 Stainless Steel wetted components
- Internal thermal overload for automatic motor protection
- Closed impeller design for high hydraulic efficiency
- G 1 1/4 (32mm) suction and G 1 (25mm) discharge ports
- Rated for continuous heavy-duty liquid transfer
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 29.5 m |
| Power | 0.9 kW / 240v |
| Rated Current | 6.9 Amps |
| Suitable For | Dairy Washdown |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 90°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What tasks is this pump intended to support?
Washdown and water-transfer duties are supported by the CDXM_120_12, whose 0.9 kW motor provides the output described for demanding cleaning tasks.
What maximum head is available during operation?
For discharge pressure, the CDXM 120 12 provides a maximum head of 29.5 m, supporting controlled delivery across its stated operating range.
How much liquid can this pump deliver?
The CDXM-120-12 reaches a maximum flow of 160 L/Min, offering high-volume movement for washdown and water-transfer applications during continuous operation.
Which electrical supply is required by the motor?
A 240 V single-phase supply powers the CDXM/120/12, which includes an integrated capacitor and automatic thermal overload protection for the specified configuration.
Which connection sizes are provided for pipework?
Suction and discharge connections are G 1 1/4 and G 1 respectively on the CDXM12012, supporting the stated pipework interfaces.
