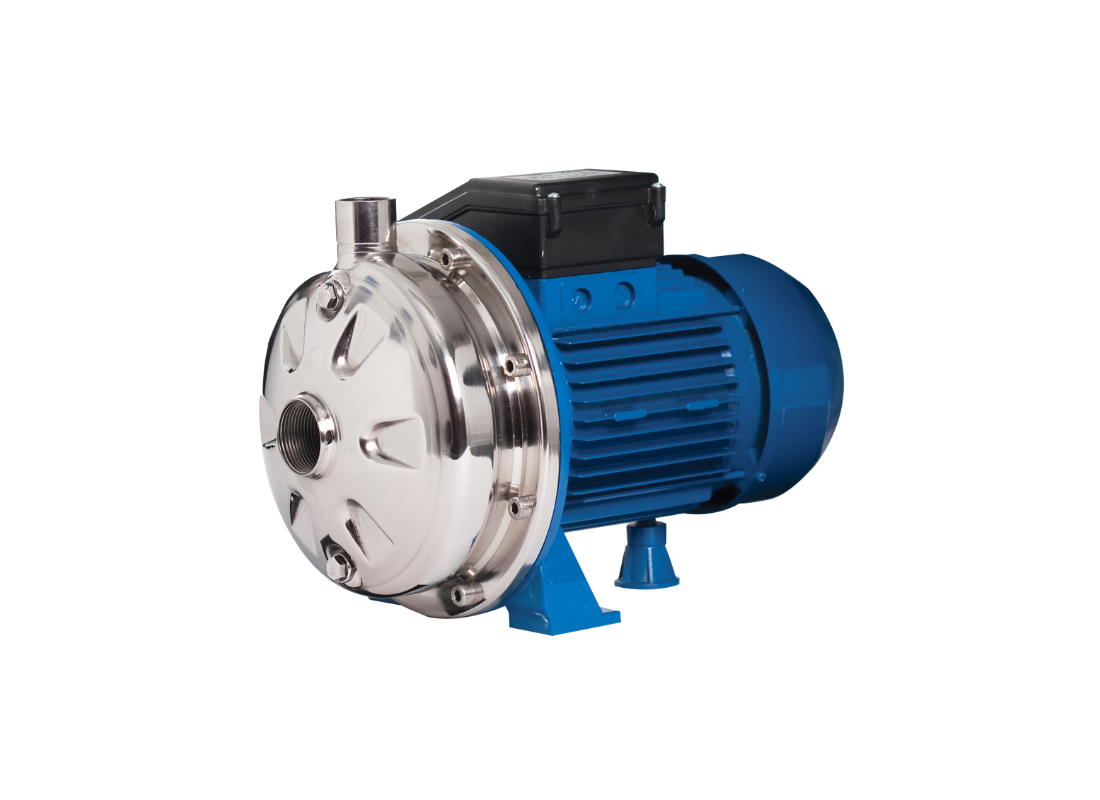

Ebara CDXM 120/20 Stainless Steel High Temperature Centrifugal Pump for Process Heating with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Where systems require controlled movement of heated clean water in industrial environments, this pump supports process heating applications, thermal circulation systems, and controlled supply loops operating at elevated temperatures. Its configuration is suited to installations where consistent pressure and thermal durability are essential.
With flow reaching up to 160 L/Min and a maximum head of 37.5 meters, the unit delivers strong hydraulic performance across its operating range. The performance curve ensures stable pressure output with smooth flow behavior under varying thermal system demands.
Flow is supported through a closed centrifugal impeller that directs liquid efficiently while minimizing internal recirculation losses. This hydraulic design ensures controlled discharge characteristics and consistent flow handling in clean water systems.
The construction incorporates AISI 304 stainless steel for the casing, impeller, and casing cover, along with a 303 stainless steel shaft. The high temperature version is equipped with a Carbon/Ceramic/Viton mechanical seal and Viton O-rings, enabling operation up to 110°C, while the TEFC motor with IP55 protection and Class F insulation supports dependable continuous-duty operation with built-in overload protection.
FEATURES
- High temperature seal configuration with Viton elastomers for thermal durability
- Closed impeller design ensuring efficient and stable hydraulic flow control
- Single-phase motor with built-in overload protection for operational safety
- TEFC motor enclosure with IP55 protection against environmental exposure
- Class F insulation system supporting continuous-duty thermal operation
- Stainless steel hydraulic components for corrosion resistance and durability
- Sealed ball bearing system for smooth rotation and reduced maintenance
- Compact close-coupled construction enabling efficient installation
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 37.5 m |
| Power | 1.5 kW / 240v |
| Rated Current | 9.3 Amps |
| Suitable For | Process Heating |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which industrial circulation duties suit this pump?
Process heating applications and thermal circulation loops can use the CDXM_120_20_HT for heated clean-water movement where stable pressure delivery is required.
Which motor configuration supports continuous-duty pumping operation?
A single-phase TEFC motor drives the CDXM 120 20 HT with built-in overload protection while IP55 enclosure protection and Class F insulation support operation.
What flow capacity is available for thermal systems?
The CDXM-120-20-HT delivers up to 160 L/Min for industrial thermal systems and process lines that require steady clean-water circulation. for elevated-temperature circulation systems
What maximum head can this model achieve?
A maximum head of 37.5 m is reached by the CDXM/120/20/HT for clean-water heating loops requiring stable discharge pressure. for elevated-temperature circulation systems
Which seal materials support heated-water handling duties?
Carbon/Ceramic/Viton sealing with Viton O-rings enables the CDXM12020HT to handle liquid temperatures up to 110°C in elevated-temperature service. during hot-water circulation cycles
